Name: 0.01-1mm Metric Feeler Gauge, 18 Blades
Brand: Tool
SKU: 1398
Availability: InStock

0.01-1mm Metric Feeler Gauge, 18 Blades

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

32 People watching this product now!

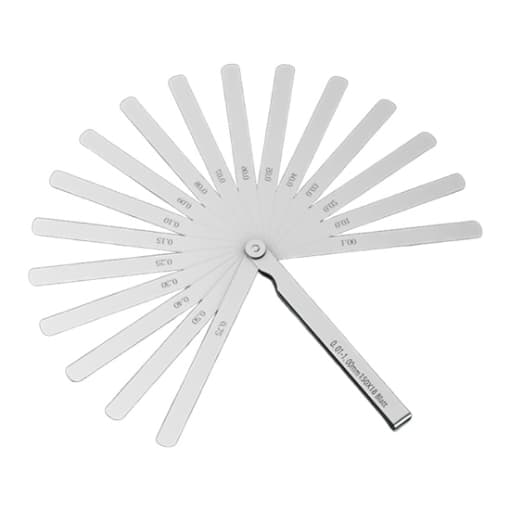

Precision metric feeler gauge with a 0.01-1mm range. This 18-blade feeler gauge features a tapered design for easy access to tight spaces.

Features

Overall metallic texture with fine polishing, burr-free, and smooth to the touch.
High hardness, accurate measurements, good elasticity, and no damage to products or machines.
The feeler gauge surface is coated with anti-rust oil, ensuring smooth expansion without sticking.
360° fan-shaped rotating design for easy storage.
Detachable individual blades with screw tightness adjustment for flexibility.

Specification

Model: T-FG-150B18
Measuring Range: 0.01-1mm
Combination of Blades:0.01, 0.02, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.30, 0.40, 0.50, 0.75, 1.00
Blade Length: 155mm
Material: Spring Alloy Steel (65Mn)
Blade Shape: Diagonal film
Weight: 1kg

Dimension(Units:mm)

Application

Tips: How to use a feeler gauge

Clean the Feeler Gauge: Use a clean cloth to wipe the measurement surface of the feeler gauge. Do not perform the measurement if the feeler gauge is contaminated with dirt or metal shavings, as this will affect the accuracy of the measurement.
Insert the Feeler Gauge into the Gap: Insert the feeler gauge into the measured gap, moving it back and forth. If you feel slight resistance, it indicates that the gap is close to the value marked on the feeler gauge. If the resistance is too high or too low while moving, it means the gap is smaller or larger than the value marked on the feeler gauge.
Measure and Adjust the Gap: When measuring and adjusting the gap, first select the feeler gauge that matches the specified gap. Insert it into the gap, then adjust while pulling the feeler gauge back and forth until you feel slight resistance. Tighten the locking nut at this point, and the value marked on the feeler gauge will represent the measured gap.
