Name: 1/10", 1/8" Air Pencil Grinder, 70000rpm
Brand: Tool
SKU: 1136
Availability: InStock

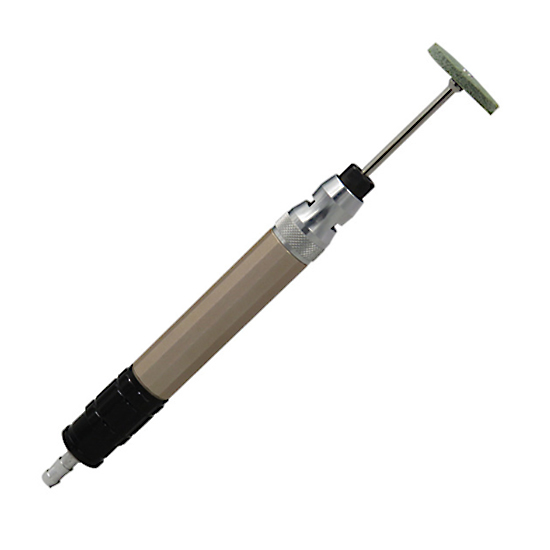

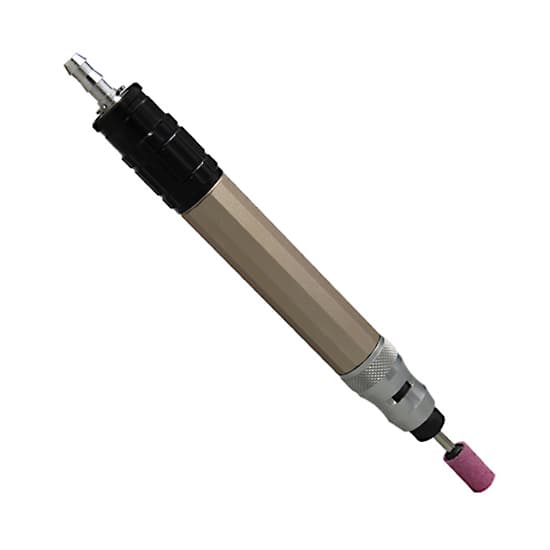

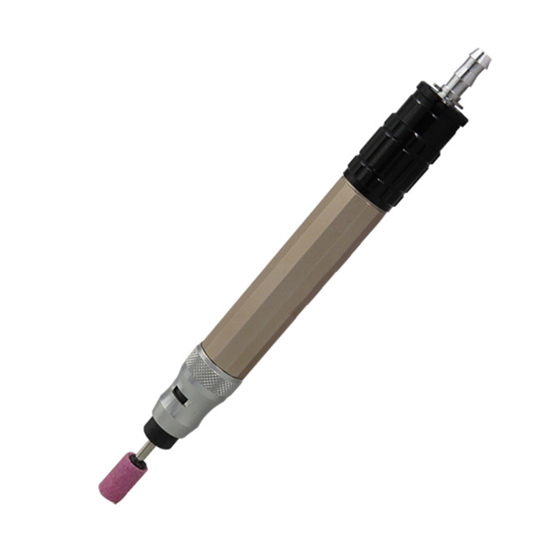

1/10″, 1/8″ Air Pencil Grinder, 70000rpm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

74 People watching this product now!

7000rpm free speed pneumatic pencil grinder kit at affordable price, includes 1/10 inch, 1/8 inch two collets along with a silencer hose. Mini air pencil grinder, compact for better control when cutting, grinding or polishing, low air consumption and easy to handle.

Specification

Model	T-KP-605
Collet Size	1/10″, 1/8″ (Both sizes are included in the package)
No-load Speed	70000rpm
Air Inlet Size	1/4″ (6.35mm)
Power Source	Air powered
Average Air Consumption	5 cfm
Working Pressure	90 psi
Air Hose Length	1.23m
Net Wight / Gross Weight	0.5kg / 0.8kg
Overall Dimension	140*16mm

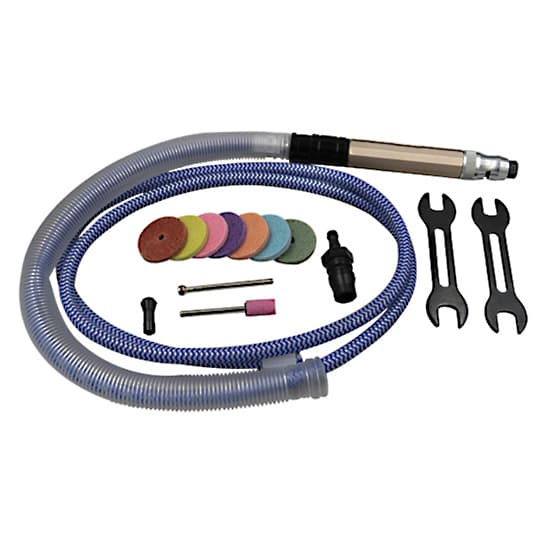

Packing List	1 * Air Pencil Grinder 1 * 1/10″ Collet 1 * 1/8″ Collet 1 * Grinding Head 1 * 1.23m Air Hose 2 * Small Wrenches 6 * Polished Pieces

Air Pencil Grinder Details

Tips: How to install the grinding head of air pencil grinder?

Step 1: Using two wrenches to clamp the two recessed positions of the air pencil grinder head, and loosen the collet in a counterclockwise direction with the wrench clamped on the collet.

Step 2: Put the grinding head into the collet and tighten it clockwise.
