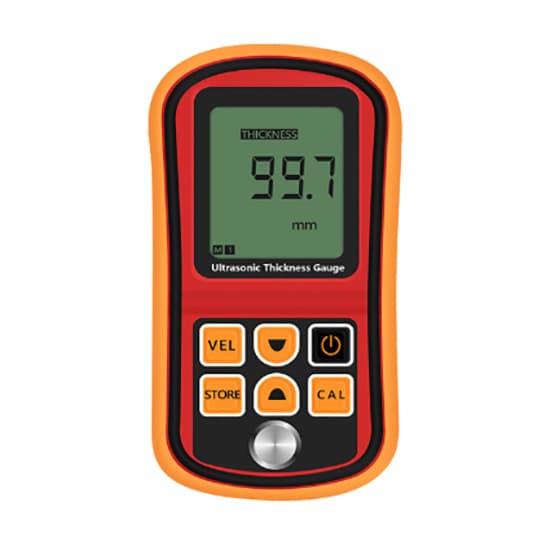

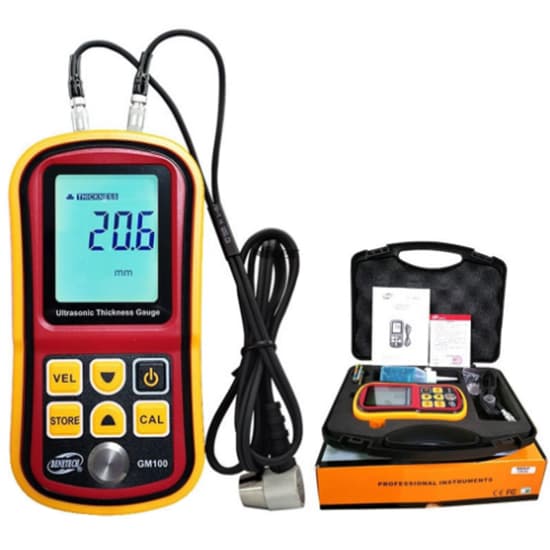

Good price ultrasonic thickness meter online, used for 1.2-225mm ultrasonic thickness measurement for materials of ceramics, glass, metal, plastic, etc.

Specification

Model	T-GM100
Measuring Range	1.2-225mm (Steel)
Accuracy	± (1% H + 0.1) mm
Resolution	0.1mm
Sound Speed Range	1000-9999m/s
Working Frequency	5MHz
Lower Limit of Pipe Measurement	Φ20*3mm (Steel)
Data Storage	√
Data Query	√
Data Deletion	√
Low Power Indication	√
Automatic Shutdown	√
LCD Backlight	√
Power Supply	3×1.5V AAA Batteries (Not Included)
Dimension	7014528 mm
Net Weight	210g

Details

Applications

Calibration

Tips: Four measuring methods of ultrasonic thickness gauge

When using an ultrasonic thickness tester to measure the thickness of the pipe, the dividing surface of the probe can be measured along the axis of the pipe or perpendicular to the axis of the pipe. If the pipe diameter is large, the measurement should be measured in the direction perpendicular to the pipeline; if the pipe diameter is small, it should be measured in two directions, and the smaller value is the measured thickness value. The measurement method of ultrasonic thickness gauge generally has the following four points:

Single-point measuring method: Take any point on the object to be measured, measure it with a probe, and the displayed value is the thickness measurement value.
Two-point measurement method: Use the probe to make two measurements at the same point of the measured object. In the two measurements, the dividing surface of the probe is 90 degrees, and the smaller value is taken as the thickness measurement value.
Multi-point measuring method: Make multiple measurements in a circle with a diameter of about 30mm, and take the smallest value of the measurement as the thickness measurement value.
Continuous reading measuring method: Use single-point measurement method to continuously measure along the designated line, with an interval not less than 5mm, and take the small value of the measurement as the thickness measurement value.
