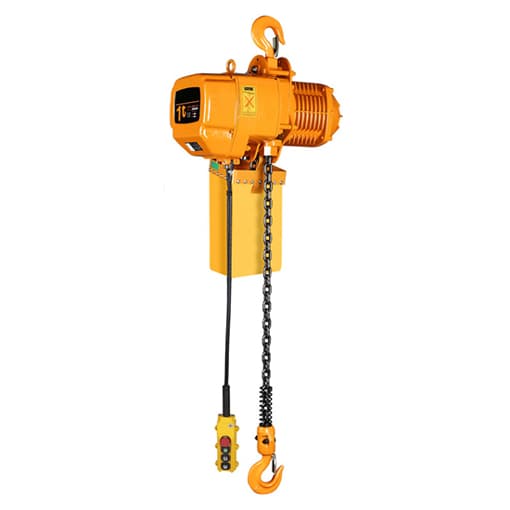

1 Ton Electric Chain Hoist
Price range: $268.99 through $324.66
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
39
People watching this product now!
Description
Affordable price electric chain fall can lift up to 1000kg, 6.6m/min lifting speed, applied to 3 phase 230V/ 400V/ 480V power supply, 24 volt, 36 volt and 48 volt control voltage for optional. 1 ton power chain hoist is designed for lifting and moving heavy duty applications, in harsh indoor or outdoor environments.
Specification
| Model | T-SSDHL-0101S |
| Speed Type | Single speed |
| Capacity | 1 ton |
| Lifting Speed | 21.6 FPM (6.6 m/min) |
| Motor Power | 1.5 kW |
| Rotation Speed | 1440 r/min |
| Standard Lifting Length | 3m, contact us for other length |
| Insulation Grade | F |
| Power Supply | 3 phase 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V (Optional) |
| Control Voltage | 24V/ 36V/ 48V (Optional) |
| No. of Chain | 1 |
| Diameter of Load Chain | 7.1 mm |
| Net Weight / Gross Weight | 61 kg / 72 kg |
Features
- Shell: Electric chain hoist made of aluminum alloy shell, light but hard. It is fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
- Limit switch: The limit switch device of electric chain hoist is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
- Chain: The chain adopts the FEC80 ultra heat-treatable aluminum alloy chain, can be used in poor invironment.
- Hook: Electric chain hoist is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety tongue piece.
- Side magnetic braking device: The magnetic force generator is the latest design which is featured for generating magnetic force. It allows instant brake as soon as the electric power is cut off. Thus the braking safety while loading is guaranteed.
Dimension
H: 650mm, A: 520mm, B: 260mm, D: 300mm, E: 176mm
Tips: How to maintenance 1 ton electric chain hoist?
The parts of this 1 ton electric chain hoist are all made of metal, so if you don’t pay attention to maintenance after a long time of use, rust may occur. After the rust, it will cause serious friction between the parts, which will affect the tool work efficiency and service life. So what protective measures do we need to do in daily use and maintenance to prevent the rust of the electric chain hoist?
- It is recommended that when using the electric chain hoist, the exposed surface and threaded surface of the electric chain hoist must be coated with anti-rust grease in time.
- The gear box of the equipment should also be coated with professional anti-rust grease, and check the rust and protect the oil film integrity.
- Anti-rust grease must be injected into the hook bearing.
- The electric chain hoist that has been used should also be protected, and try to be waterproof and moisture-proof.
