Name: 14 Piece Torx Socket Set
Brand: Tool
SKU: 873
Availability: InStock

14 Piece Torx Socket Set

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

34 People watching this product now!

14-piece 1/4″, 3/8″ & 1/2″ torx socket set, chrome-vanadium steel material, metric measurement standard.

Specification:

Model	T-DT190HXT14
Shipping weight	0.8kg
Size	14811454mm
Total number of pieces	14
Material	Chrome-vanadium steel
Measurement standard	Metric
Drive size	1/4 inch, 3/8 inch, 1/2 inch

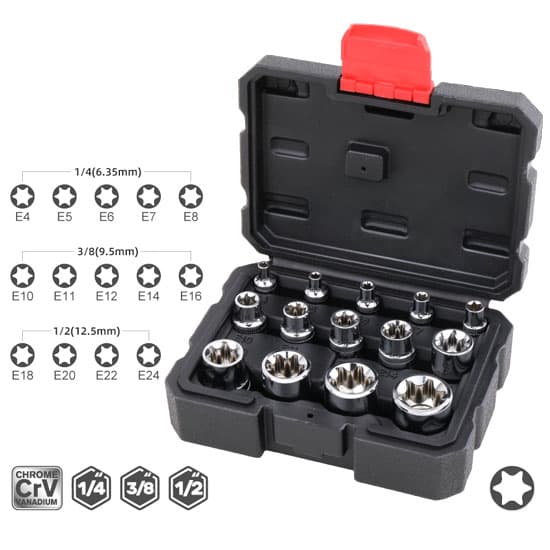

Package included	1) 5-piece 1/4″ metric torx sockets: E4-E5-E6-E7-E8 2) 5-piece 3/8″ metric torx sockets: E10-E11-E12-E14-E16 3) 4-piece 1/2″ metric torx sockets: E18-E20-E22-E24 4) 1 * tool box

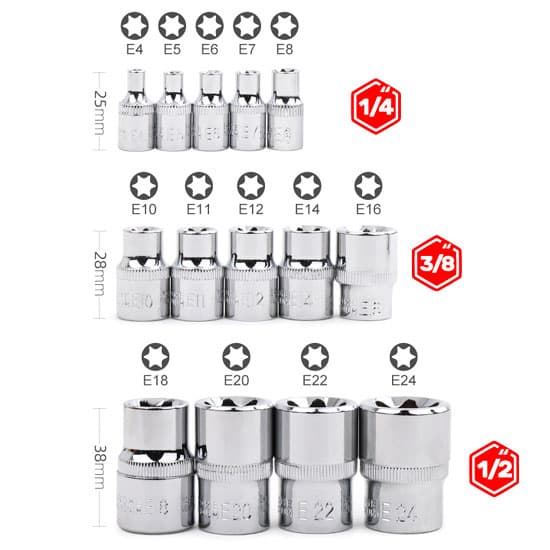

Torx socket set dimension:

Socket model	Square outer diameter (mm)	Square size (inch)	Torx outer diameter (mm)	Torx diameter (mm)	Length (mm)
E4	12	1/4	6	3	25
E5	12	1/4	7	4	25
E6	12	1/4	8	5	25
E7	12	1/4	8.5	6	25
E8	12	3/8	9.5	7	25
E10	17	3/8	13	9	28
E11	17	3/8	13	9.5	28
E12	17	3/8	15	10	28
E14	18	3/8	16	12	28
E16	17	3/8	20	14	28
E18	24	1/2	20	16	38
E20	22	1/2	24	18	38
E22	23	1/2	26	20	38
E24	24	1/2	28	21	38

Tips: What is a torx socket?
The torx socket is specially used to remove the bolts with torx head. When disassembling, the torx socket can achieve surface contact with the bolt head. Torx socket adopts a curved structure that can increase the disassembly torque while reducing the volume.
In modern vehicles, the use of torx head bolts has gradually increased. The torx sockets are often used to install door bolts, or stud bolts for intake manifolds.
Put the automotive socket on the square tenon of the matching handle (use with extension rod, short rod or universal joint as required), then put the socket over the bolt or nut. Hold the joint between the handle and the socket with left hand and keep the socket coaxial with the bolt to be dismantled or tightened. Hold the matching handle with right hand to apply force.
In the process of using the socket, hold the joint between the handle and the car socket with left hand, and do not shake it to prevent the socket from sliding out or damaging the sharp corners of the bolt and nut.
Use force in your direction to prevent slippage and injury to your hands.
When selecting the torx socket, the shape and size of the torx socket, bolt and nut must be completely suitable. If the selection is not correct, the socket may slip during use, which will damage the bolt and nut.
