Name: 14mm Swivel Spark Plug Socket
Brand: Tool
SKU: 881
Availability: InStock

14mm Swivel Spark Plug Socket

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

74 People watching this product now!

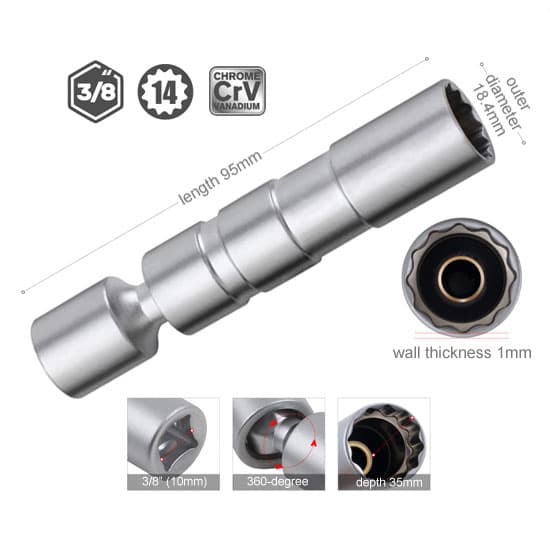

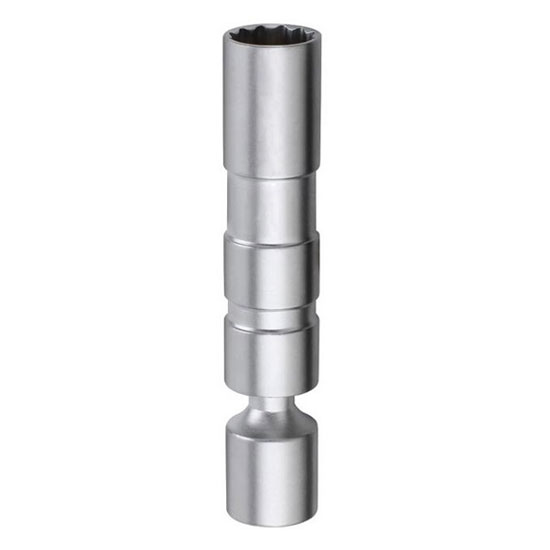

14mm 12-point swivel spark plug socket with wall thickness 1mm, a universal joint and a magnetic ring.

Specification:

Model	T-DT190TW-01
Weight	150g
Contact point	12-point
Measurement standard	Metric
Diameter	14mm
Outer Diameter	18.4mm
Length	95mm
Wall thickness	1mm
Swivel angle	360°
Depth of magnetic ring	35mm
Material	Chrome-vanadium steel
Surface treatment	Abrasive blasting
Drive size	3/8 inch

Tips: Types of spark plug socket
The spark plug socket can be divided into 14mm, 16mm, and 21mm spark plug socket according to the size. According to the structure, it can be divided into ordinary type, swivel type and long type. According to the thickness, it can also be divided into standard type and thin wall type. In order to meet different model spark plugs of various automobile manufacturers, spark plug socket are specially designed with two types of inside parts: rubber sleeve and diaphragm spring. The contact point of the spark plug socket is also divided into 12-point and 6-point. There are many types of spark plug sockets, so it is best to confirm the type of spark plug, and then choose the right type of spark plug socket.
In addition, it should be noted that the length of the spark plug should be suitable for our spark plug socket, that is, the length of the spark plug connecting nut needs to reach 10mm. If the connecting nut of the spark plug is relatively short, only 3mm in length is not suitable.
