Name: 18 Gauge Air Brad Nailer, 3/8" - 1-3/16"
Brand: Tool
SKU: 1170
Availability: InStock

18 Gauge Air Brad Nailer, 3/8″ – 1-3/16″

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

58 People watching this product now!

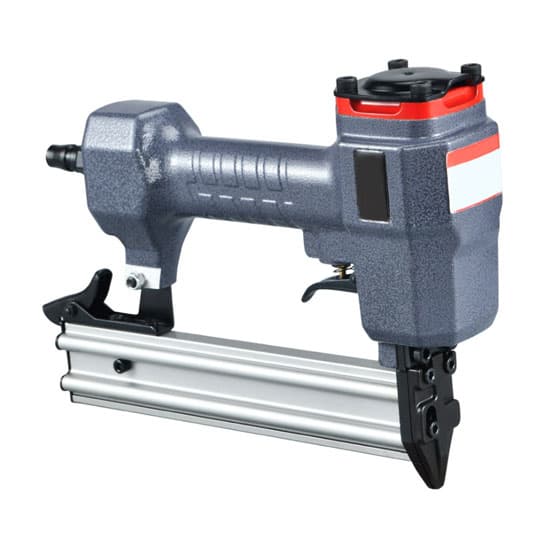

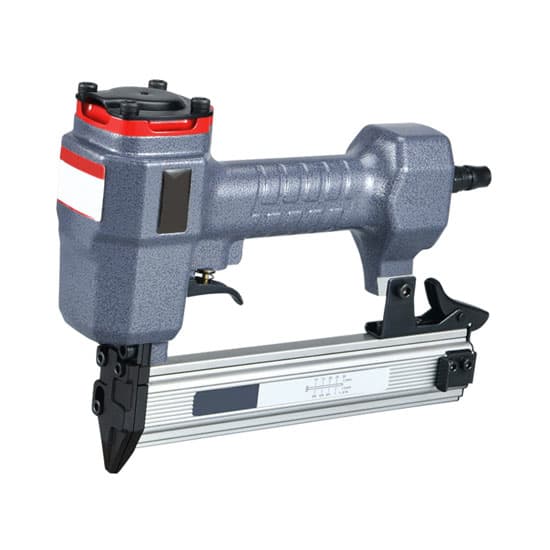

Air powered brad nailer drives 18 gauge, 3/8 inch – 1-3/16 inch nails to work, allowing you to nail wooden easily. It has such advantages as low air consumption, low noise, fast nailing, strong power and rapid air return. The body of the pneumatic brad nail gun is made from durable aluminum alloy and the internal mainly parts adopts high quality spring steel polished by machining center, so our air tools are reliable.

Specification

Model	T-ABN-18G

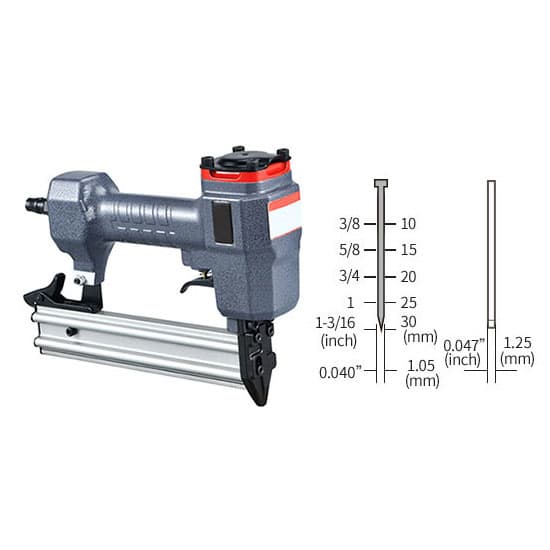

Nail Thickness	18 Gauge, 1.25mm * 1.05mm, (0.050″) * (0.041″)
Nail Length	3/8″ – 1-3/16″ (10 – 30mm)
Working Pressure	60 – 100 PSI (0.4 – 0.7 Mpa)
Load Capacity	100 PCS
Air Inlet	1/4 inch
Body Dimension	260 * 185 * 67mm
Net Weight	1.2kg

Details

Insurance Frame: Bilateral insurance frames are designed for ensuring that the nail outlet will not punch nails out until it contacts with the product.
Positioning Hook: 18 gauge air brad nail gun positioning hook processed by heat treatment helps you punch nails out accurately.
Metal Air Outlet: The pneumatic brad nail gun has a metal air outlet that is held in place by four large screws, which has long time service.
Nail Magazine: The nail magazine of air brad nail gun is made from aluminum alloy allowing the air tool durable and lightweight.
Nail Outlet: The nail outlet of the air powered brad nailer is durable and reliable due to it is made from high quality steel with heat treatment.

Applications

18 gauge air brad nail gun is used for upholstery, furniture, woodworking, baseboard, making framing and fence, etc.

Tips: Different Between Air Brad Nailer and Air Finish Nailer

What is an air brad nailer?
Air brad nailer is a lighter and easier to work than an air finish nail gun, which can accept 18 gauge in thickness brad nails. Brad nails are thinner than finish nails as well. You can operate the pneumatic brad nail gun easily without a lot of effort. You can do upholstery, woodworking, install baseboards, making framing and fence with the 18 gauge air brad nailer. Thanks to the smaller brad nail size, they will not leave too many masks on the wood. It is so precise that allow you to drive the brad nails in place.

What is an air finish nailer?
Air finish nailer is an air tool designed for attaching finishing materials, such as trim with finish nails. The pneumatic finish nail gun accepts 15 – 16 gauge in thickness nails that thicker than brad nails, but smaller than framing nails. Pneumatic finish nailer can finish many tasks, such as installing baseboards, door and window casing, making furniture, doing upholstery among other things. It can drive nails into the objects in place without additional tools.
At tool.com, we offer the best 16 gauge air finish nailer and 18 gauge air brad nailer for you. Shop online now!
