Description

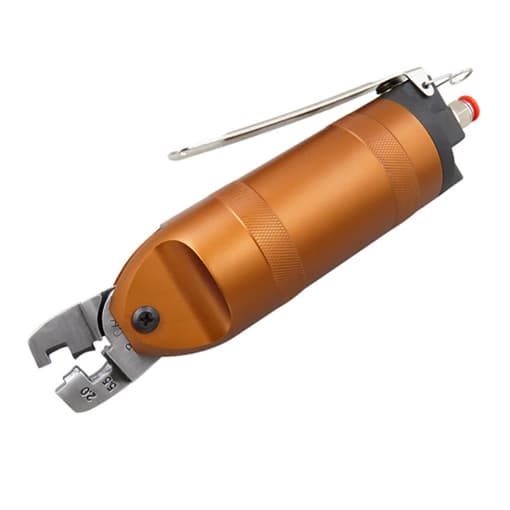

Economical price wire crimpers for terminal crimping. 5cfm air consumption, 88-116psi operating air pressure, air crimper tool equipped with 1/4 inch air inlet and 8-10mm diameter clamp head.
Specification
| Model | T-KP-773 |
| Cutting Capacity | 2.0-5.5mm |
| Air Consumption | 5cfm |
| Operating Air Pressure | 88-116psi |
| Air Inlet Size | 1/4 Inch |
| No Load Speed | 180rpm |
| Clamp Head Diameter | 8-10mm |
| Air Hose Size | 6.5*10mm |
| Overall Length | 245mm |
| Net Weight | 0.87kg |
| Package Weight | 1.0kg |
Details
Tips: Advantages and disadvantages of air crimping tool
- The pneumatic crimping machine can be used in explosive, corrosive, high temperature and humid working environment.
- The pneumatic crimping tool can be overloaded to prevent the motor from burning.
- The pneumatic pliers are simple in structure, durable and relatively easy to maintain.
- The air clamp air nipper tool has large output hose, light weight and high efficiency.
- The air crimper needs to be equipped with an air compressor as the air energy supply, and the maintenance cost is high.
- The air tightness of the air crimping tool is high, and the cylinder parts cannot be damaged or aged.
- The pneumatic crimping tools do not have the portability of manual crimping tools and electric crimping tools.
