Name: 2" (DN50) Pneumatic Wafer Butterfly Valve
Brand: Tool
SKU: 1260
Availability: InStock

2″ (DN50) Pneumatic Wafer Butterfly Valve

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

19 People watching this product now!

Note: This butterfly valve cannot be used for drinking water.

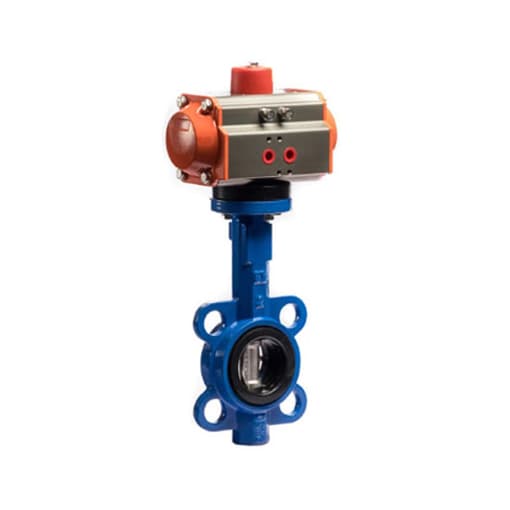

Industrial 2 inch pneumatic wafer type butterfly valve comes with 50mm (DN50) threaded port size for water flow working. The air actuated 2 way butterfly control valve consists of a pneumatic actuator, cast iron wafer style body and stainless steel disc, high performance and reliable.

Specification

Butterfly Valve	Model	T-PBV-50
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type
	Port Size	2 inch (DN50, 50mm)
	Body Material	Cast Iron
	Disc Material	Stainless Steel (SS)
	Seat Material	EPDM
	Working Temperature	-10 ℃ to 120 ℃
Pneumatic Actuator	Model	T-AT063D
	Actuator Type	Double Acting
	Bore Size	63mm
	Air Pressure	0.25 – 0.8MPa, PN16
	Pressure Difference	0 – 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Q: Φ36/Φ50mm
A: 167mm
B: 82mm
C: 35mm
D: 47mm
E: 113mm
F: 85mm
G: 30mm
H: 80mm
I: PF
J: M6
K: 1/4 inch
O: 20mm
P: 40.5mm
S: 4mm
T: 4mm
U: 12mm
V: 24mm
W: 16mm
X: 32mm

Body Dimension

Tips: Advantages of wafer type pneumatic butterfly valve

The main advantages of the wafer type pneumatic butterfly valve are simple structure, small volume, light weight, low cost and so on. It can be installed in the upper dark tunnel, pipeline and other places to regulate the flow of the medium. Large diameter pneumatic butterfly valve has a lager effective circulation area when it is fully open, and it has small fluid resistance. That will make the butterfly valve easy open and close (the disc can complete opening and closing through 90 degree rotation). The air actuator’s opening and closing torque are small due to the medium forces from the disc in the rotation axis are nearly equal and the torque is in the opposite direction, which can achieve good sealing at low pressure. There are many butterfly valve sealing materials, such as PTFE, EPDM, FEP, NBR and VITON etc. EPDM material has high performance, no matter under the condition of low temperature or high temperature have good sealing.
