Name: 24 Inch Automotive Pry Bar
Brand: Tool
SKU: 868
Availability: InStock

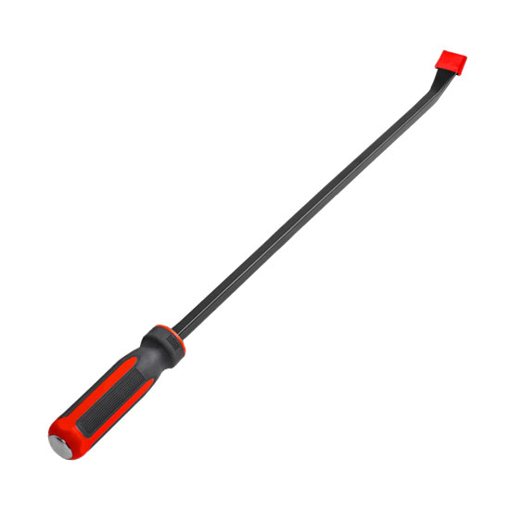

24 Inch Automotive Pry Bar

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

14 People watching this product now!

Automotive pry bar with 24 inch length, 30-degree angled tip, bar width 10mm.

Specification:

Model	T-9190-24
Weight	555g
Total length	24″ (610mm)
Head shape	Angled tip
Head angle	30°
Head width	20mm
Bar material	Chrome-vanadium steel
Bar width	10mm
Handle material	Plastic
Handle length	140mm
Handle width	38mm
Handle color	Red & Black

Automotive pry bar dimension:

Tips: How to use a pry bar to remove truck tires?

First, clean the tires thoroughly.
Lubricate the grooves of bolts and nuts.
Place the lock ring of the wheel upwards, release the tire air. Remove the air nozzle after the inner tube tire is fully deflated. Make a matching mark on the tire and rim.
Note: The tire air must be deflated completely to avoid accidental injury in subsequent operations.
Press down the tire and insert the straight guide vane between the rim ring and the tire, and press down the tire edge. Insert the guide vane at the formed gap, so that the end of the guide vane is supported in the rim ring, and the shaft head rests on the straight guide vane plate.
Remove the tapered edge strip of the lock ring, press down the tire edge, while moving the straight guide vane and curved guide vane along the circumference of the wheel, remove the tapered edge strip of the lock ring from the tire.
Carefully insert the automotive pry bar. Take out the lock ring, insert the end of the straight guide vane into the slot of the lock ring, and press the lock ring out of the slot. Lift up the lock ring, support the curved guide vane in the rim ring, and insert the end of the straight guide vane into the lower end of the lock ring. Hold the lock ring with hand, and use the straight guide vane to remove the lock ring from the groove of rim.
The one side of tire is successfully peeled off.
Put down the tire, take out the rim ring, and turn the tire to the other side. Remove the side of the tire from the wheel rim with the help of straight guide vanes and curved guide vanes. And then put the tire upright, first take out all the rim from the tire, and use a hammer along the locking part of tire decisively knocks the wheel out of the tire. If there is an inner tire, take out it.
