3/4 inch air operated double diaphragm pump is a highly efficient compact pneumatic tool that adopts reliable pilot operated type air valve. The pneumatic dual diaphragm pump is small in size and easy to move, perfect for various usages, such as pumping a variety of toxic, flammable, volatile liquid, acids, alkalis, corrosive liquids, paint, rubber and paint binders. AODD pump also can help you clean not only sewage and residual oil from cruises or barges, but also sediment contaminants in shaft, tunnel and sewers.

Features

Air operated double diaphragm pump adopts pilot operated type air valve to eliminate the air tool downtime and extend its service life. All the parts can be replaced when the liquid chamber is not opened.
Designed with multiport, the pneumatic dual diaphragm pump can be installed easily.
It structures with non-porous embedded diaphragm to improve the usage rate of diaphragm and make it more compact.
Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
It can be externally connected to electromagnetic valve for remote control. And the reversing valve requires no lubrication.

Specification

Model	T-AODD-20
Max. Flow	15 GPM (57 LPM)
Max. Working Pressure	100 PSI (0.7 Mpa)
Fluid Inlet Size	3/4 inch (DN20) NPT
Fluid Outlet Size	3/4 inch (DN20) NPT
Air Inlet Size	1/4 inch NPT
Max. Suction Lift	Dry Suction 15 ft. (4.5m)
Max. Suction Lift	Wet Suction 25 ft. (7.6m)
Max. Permitted Grain	3/32 in. (2.5mm)
Max. Air Consumption	12 SCFM
Every Stroke Flow	0.04 gal. (0.15L)
Max. Reciprocating Speed	400 cpm

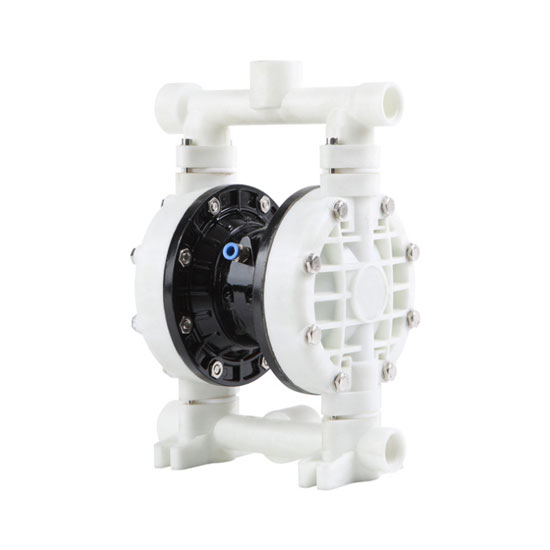

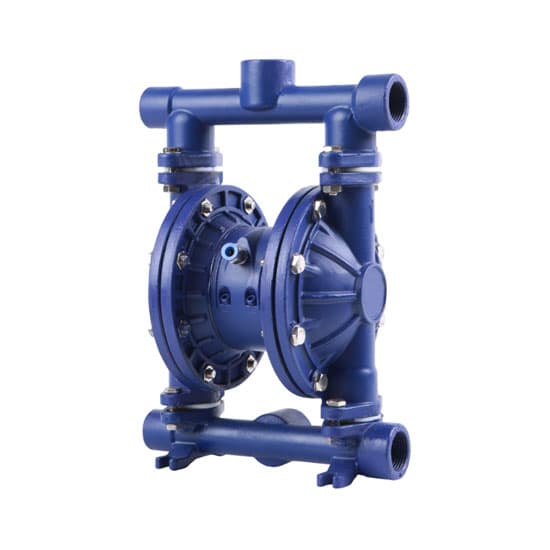

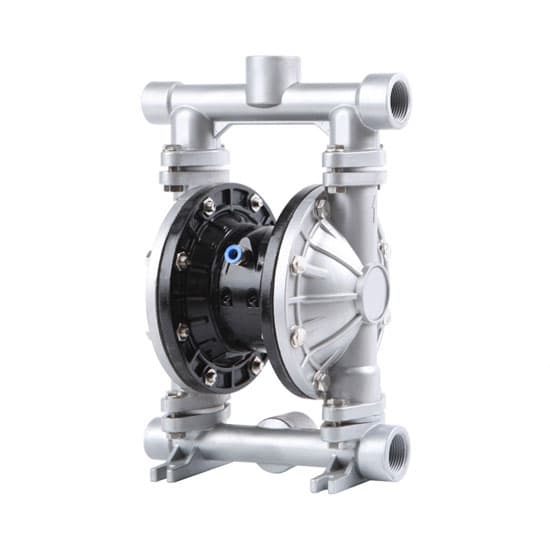

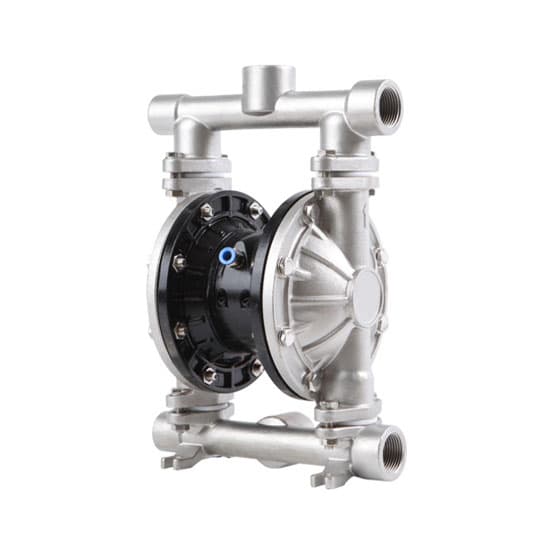

Body Structure Material	Cast Steel/Aluminum Alloy/Stainless Steel/Non-Metallic (Plastic)

Details

1. Air valve cover
2. Air valve cover O-ring
3. Discharge outlet
4. Colum
5. Feed inlet
6. Plug
7. Small slider
8. Auxiliary shaft
9. Auxiliary shaft O-ring
10. Piston
11. Piston V-Ring
12. Pitman shaft O-ring
13. Air valve chamber gasket

14. Baffle
15. Inner clamp
16. Poly rubber diaphragm
17. PTFE diaphragm
18. Outer clamp
19. Sliding plate
20. Sliding plate gasket
21. Pitman shaft
22. Air valve chamber
23. Muffler
24. Sealing ball
25. Ball seat O-ring
26. Sealing seat

Diagram of Air Consumption

Diagram of Fluid Flow

Dimension Drawing

Units: mm

Applications
