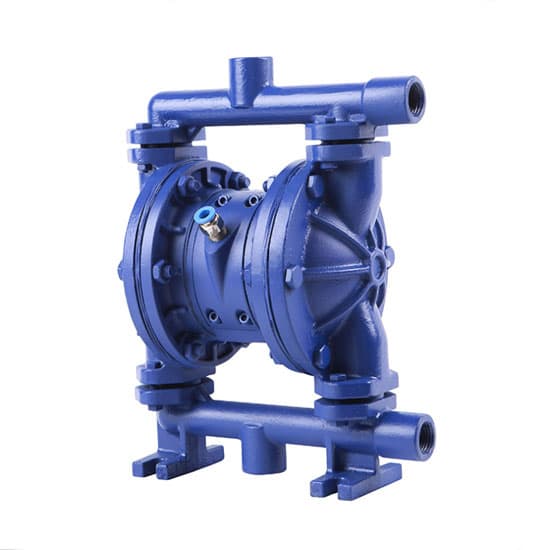

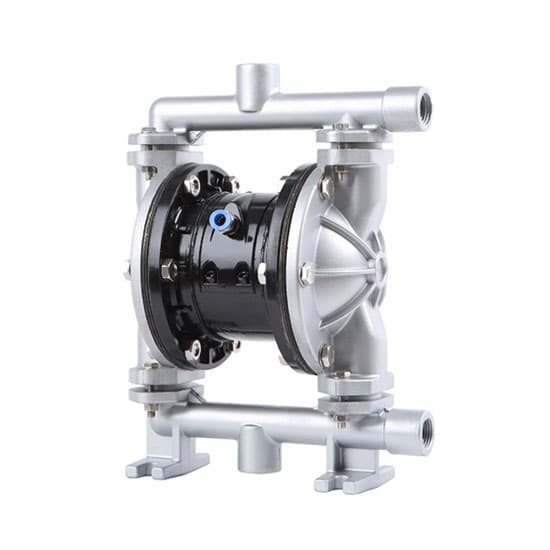

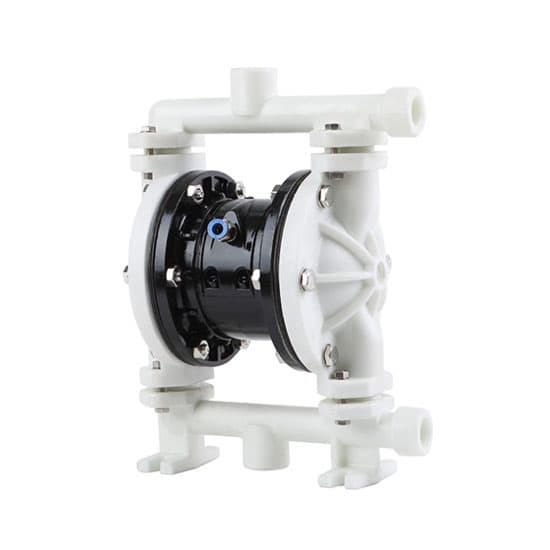

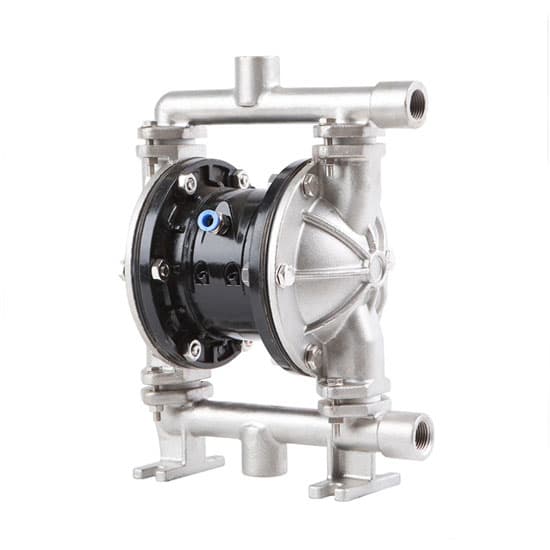

Name: 3/8" Air Operated Double Diaphragm Pump, 5 GPM
Brand: Tool
SKU: 1119
Availability: InStock

3/8″ Air Operated Double Diaphragm Pump, 5 GPM

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

43 People watching this product now!

3/8 inch miniature air operated double diaphragm pump has a great many uses, such as such as pumping a variety of toxic, flammable, volatile liquid, acids, alkalis, corrosive liquids, paint, rubber and paint binders. AODD pump can transport high temperature media up to 150 ℃. The pneumatic dual diaphragm pump is also a useful air tool for cleaning sediment contaminants in shaft, tunnels and sewers.

Features

Air operated double diaphragm pump adopts pilot operated type air valve to eliminate the air tool downtime and extend its service life. All the parts can be replaced when the liquid chamber is not opened.
Designed with multiport, the pneumatic dual diaphragm pump can be installed easily.
It structures with non-porous embedded diaphragm to improve the usage rate of diaphragm and make it more compact.
Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
It can be externally connected to electromagnetic valve for remote control. And the reversing valve requires no lubrication.

Specification

Model	T-AODD-10
Max. Flow	5.0 GPM (18.9 LPM)
Max. Working Pressure	100 PSI (0.7 Mpa)
Fluid Inlet Size	3/8 inch (DN10) NPT
Fluid Outlet Size	3/8 inch (DN10) NPT
Air Inlet Size	1/4 inch NPT
Suction Lift (Dry Suction)	8 – 10 ft. (2.5 – 3m)
Max. Permitted Grain	0.06 in. (1.5mm)
Max. Air Consumption	9.0 SCFM
Every Stroke Flow	0.006 gal. (23cc)
Every Reciprocating Flow	0.012 gal. (46cc)
Max. Reciprocating Speed	Dry Running 320 cpm
Max. Reciprocating Speed	Wet Running 250 cpm
Body Structure Material	Cast Steel/Aluminum Alloy/Non-Metallic

Details

1. Air valve cover
2. Air valve cover O-ring
3. Discharge outlet
4. Colum
5. Feed inlet
6. Plug
7. Small slider
8. Auxiliary shaft
9. Auxiliary shaft O-ring
10. Piston
11. Piston V-Ring
12. Pitman shaft O-ring
13. Air valve chamber gasket

14. Baffle
15. Inner clamp
16. Poly rubber diaphragm
17. PTFE diaphragm
18. Outer clamp
19. Sliding plate
20. Sliding plate gasket
21. Pitman shaft
22. Air valve chamber
23. Muffler
24. Ball valve
25. Ball seat O-ring
26. Ball seat

Diagram of Air Consumption

Diagram of Fluid Flow

Dimension Drawing

Units: mm

Applications
