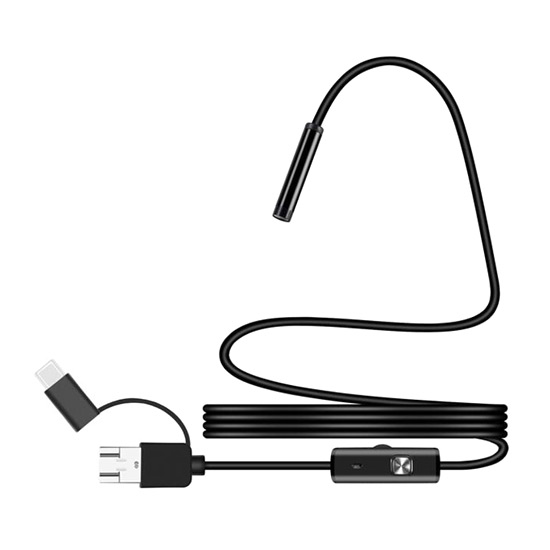

3 in 1 USB endoscope camera adopts a 1.3MP CMOS camera with 70° visual angle and 6 LED lights around the lens. It can be used with Android smartphone/ Pad and Windows XP/7/8/Vista PC. There are two types of cable for choosing: semi-rigid cable and flexible cable.

Features:

1.3MP waterproof CMOS camera with optional diameter 5.5mm, 7mm or 8mm
Display resolution of images and video is 640*480P.

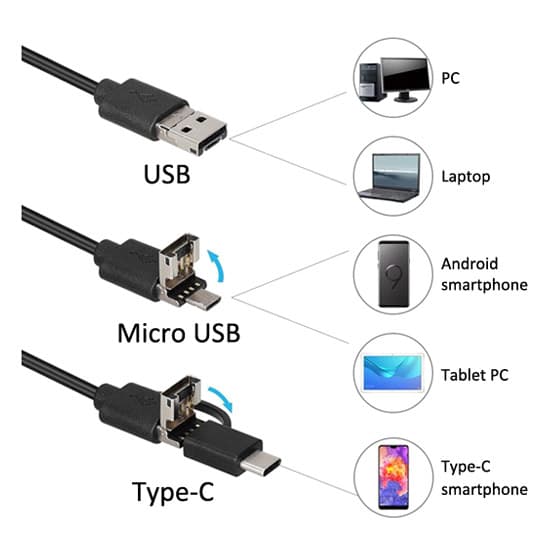

USB/ micro USB/ Type-C 3 in 1 USB connector for android smartphone/Pad and Windows XP/7/8/Vista/10 PC
LED lights adjustable switch and camera button for simple operations
Widely used for vehicle engine, air conditioner and pipeline inspection

Specification:

Model	T-YPC102
Shipping weight	0.1kg
Packing size	12012035mm
Camera shell diameter *	5.5mm, 7mm, 8mm
CMOS camera pixel	1.3MP
Display resolution	640*480P
Frame rate	30fps
Visual angle	70°
Focal length	4-8cm
Protection class	IP67 (only for camera)
Working temperature	0~70℃ (32~158℉)
Light	6 adjustable LED lights
Camera cable type *	Semi-rigid cable, flexible cable
Cable length *	1m, 1.5m, 2m, 3.5m, 5m
Support operating system	Cell phone: Android (support USB and OTG function) PC: Windows XP, 7, 8, Vista, 10
Image format	JPEG
Video format	AVI
3 in 1 USB connector	USB, micro USB, Type-C
Power supply	5VDC via USB
Certification	CE, FCC, RoHS
Package included	1 * endoscope camera with 3 in 1 USB connector 1 * fixing sleeve 1 * mirror 1 * hook 1 * magnet 1 * user manual

Tips: Application of endoscope in automotive repairing and maintenance

Check the engine combustion chamber, including: Valves, cylinder heads, piston crowns, cylinder liners
Check the water pump drain hole and coolant leakage
Check the fixing condition of the radiator
Check the brake pads
Check the fuel line and tank
Identify the source of abnormal noise and noise

The specific contents that can be checked during the automobile maintenance process are divided into the following aspects:

Inner cavity inspection: Check surface cracks, peeling, pull lines, scratches, pits, bumps, spots, corrosion and other defects.
Condition inspection: When turbo pumps or engines are working, perform endoscope inspections according to the items specified in the technical requirements.
Assembly inspection: Use the endoscope to check the quality. After the assembly or a certain process is completed, check whether the assembly position of each part meets the sample drawing or technical requirements. Whether there are assembly defects.
Residuum inspection: Check the scraps, foreign objects and other extras in the inner cavity of the product.
Inspection of weld surface defects: Check the weld surface cracks, incomplete penetration and weld leakage and other welding problems.
