Name: 3 Socket Cigarette Lighter Adapter, 100W, 12V/24V, 4 USB
Brand: Tool
SKU: 917
Availability: InStock

3 Socket Cigarette Lighter Adapter, 100W, 12V/24V, 4 USB

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

56 People watching this product now!

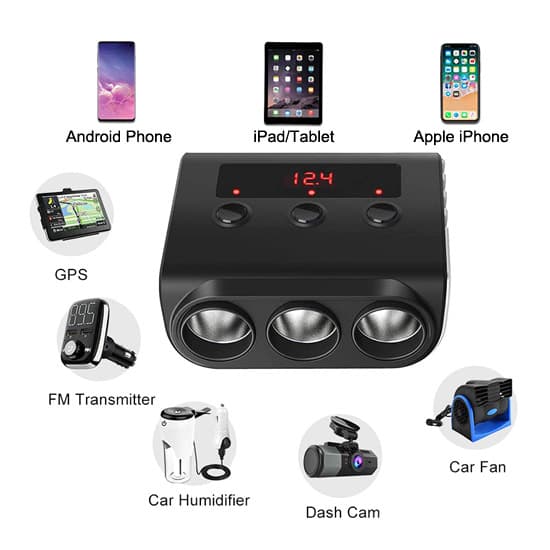

7 in 1 cigarette lighter adapter has 3 cigarette lighter sockets and 4 USB ports. The input voltage of cigarette lighter adapter is 12VDC~24VDC, and the output voltage of each socket is 12VDC. The maximum power is 100 watt, so it can be used for dash cam, GPS, car fan at the same time.

Specification:

Basic	Model	T-TR12
	Weight	194g
	Size	958834.5mm
	Packing size	13.811.14.5cm
	Certification	CE, UL
	Application	All vehicles has 12VDC/24VDC cigarette lighter connector, such as cars, SUVs, MPVs, ATVs, trucks, buses, RVs, etc.
	Packing included	1 * cigarette lighter adapter 1 * fuse 1 * user manual
Cigarette Lighter Adapter	Input voltage	DC 12V~24V
	Power	100W Note: When one socket is used alone, the maximum power of each cigarette lighter socket is 100 watt. And when three sockets are used together, the maximum power of the total cigarette lighter socket is also 100 watt.

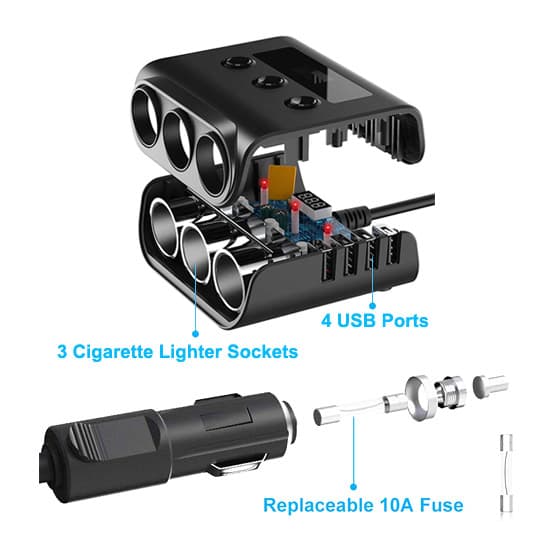

	Number of outputs	Total 7 in 1 adapter: 3 cigarette lighter sockets 4 USB ports
	Output voltage	Each cigarette lighter socket: DC 12V Each USB port: DC 5V
	Output current of USB port	The maximum output current of each USB port is 2.4A. The maximum output current of total USB ports is 3.1A.
	Display	3 digit red LED display for real-time monitoring of battery voltage
	Indicator	3 red LED indicators for power on/off status of each socket
	Switch	1 main power switch for all sockets and USB ports 3 power switches for 3 cigarette lighter sockets
	Cable length	56cm
	Shall material	ABS
	Function	Over-voltage protection, over-current protection, over-heating protection, over-load protection, short-circuit protection
Fuse	Current	10A
Master Carton	Pcs/Carton	60
	1 carton gross weight	15kg
	1 carton size	58.543.521cm

Tips: How to use cigarette lighter adapter?
Due to different vehicle settings, some cigarette lighters are not powered off when the vehicle is turned off. Many vehicles still have electricity. Therefore, it is not a wise choice to put external device on the energized cigarette lighter for a long time. When the vehicle is started, the external device on the cigarette lighter socket is easily burnt under the impact of the start-up high current, especially MP3 and U disk are prone to problems. Therefore, it is best to choose an adapter with a main power switch and a separate interface switch.
Correct use method:

Before starting the car, turn off the independent socket switches, disconnect the wiring on the USB ports, and turn on the main power switch of the adapter.
When need to use the cigarette lighter socket, turn on the corresponding socket switch, and then insert the plug into the socket.
Turn off the power switch of the electronic device after use, and then turn off the corresponding socket switch.
When need to use the USB ports, plug in the USB cable first, and then connect the mobile phone and other charging devices. After the mobile phone is charged, unplug the USB cable in time to avoid occupying the USB port for a long time.
When the car is turned off, turn off the main switch to protect the car battery.
