Name: 30 Ton Hydraulic Bottle Jack, Low Profile
Brand: Tool
SKU: 972
Availability: InStock

30 Ton Hydraulic Bottle Jack, Low Profile

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

28 People watching this product now!

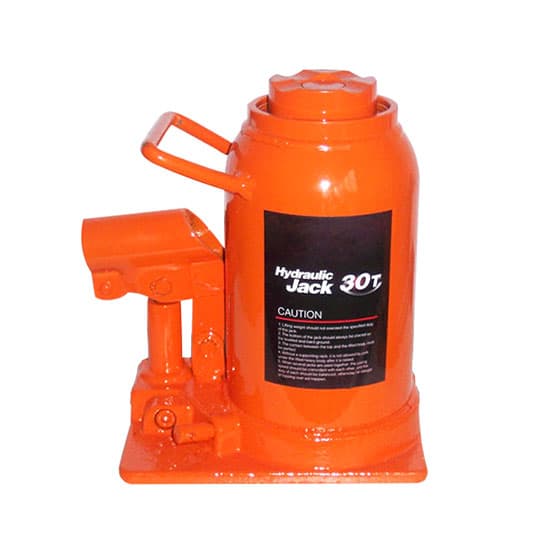

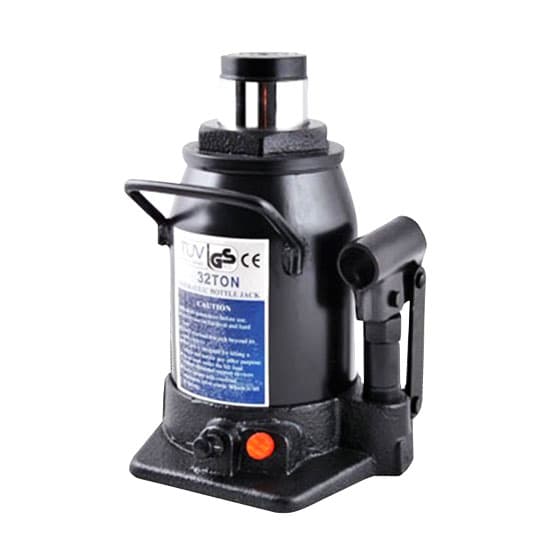

30 ton hydraulic bottle jack, solid steel structure, optional lift height 140mm/110mm, CE/ GS/ TUV certification.

Specification:

Model	T-HBJ-E0530-1	T-HBJ-E1030S
Weight	16.5kg	14.5kg
Maximum capacity	30 ton	30 ton
Number of ram	Single	Single
Minimum height	245mm	240mm
Maximum height	480mm	430mm
Adjustable height	95mm	80mm
Lift height *	140mm	110mm
Material	Steel	Steel
Certification	CE, GS, TUV	CE, GS, TUV
Packing included	1 * bottle jack 2 * safety bar 1 * tool box	1 * bottle jack 2 * safety bar 1 * tool box

Tips: Bottle jack maintenance

Refuel/change hydraulic oil.
Keep the bottle jack in a vertical situation, and lower the pump core and piston to the lowest point.
Remove the rubber oil plug on the bottle jack shell, and inject the cleaned hydraulic oil to the piston port.
Use N15 machine oil when used in the temperature range of 5~45℃, and use synthetic spindle oil when used in the temperature range of -5~+29℃.
Regularly check and lubricate the connection of the transfer bar. If not in use, the piston rod, adjustment screw and pump core should be pressed down to keep it clean and prevent rust.
Try to avoid placing it in a humid environment or a place with acid, alkali and corrosive gas.
