Name: 30m Open Reel Steel Tape Measure
Brand: Tool
SKU: 1577
Availability: InStock

30m Open Reel Steel Tape Measure

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

40 People watching this product now!

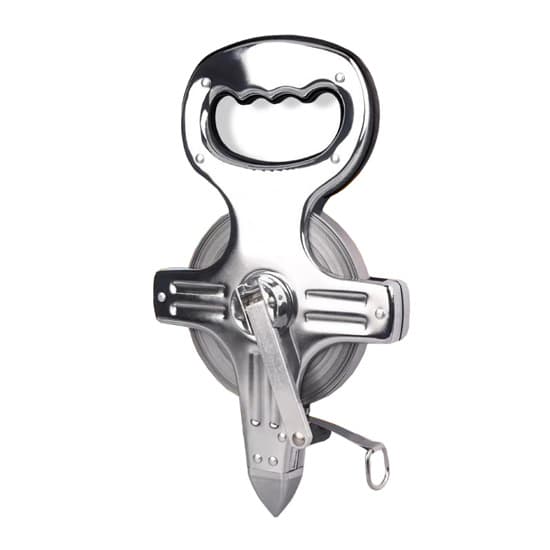

Best 30m tape measure surveyor tool for sales, made of high quality steel, ergonomic designed handle, comfortable grip, easy to hold. Small steel tape measure measuring tool applicable to surveying, road, railway, electricity, construction and other long-distance measurement.

Specification

Model	T-JGW-308
Product Name	Steel tape measure
Measuring Range	30m / 98 ft
Tape Width	12.5mm
Material	Steel
Dimension	L x W x T = 270 x 155 x 40mm
Weight	0.7kg

Dimension

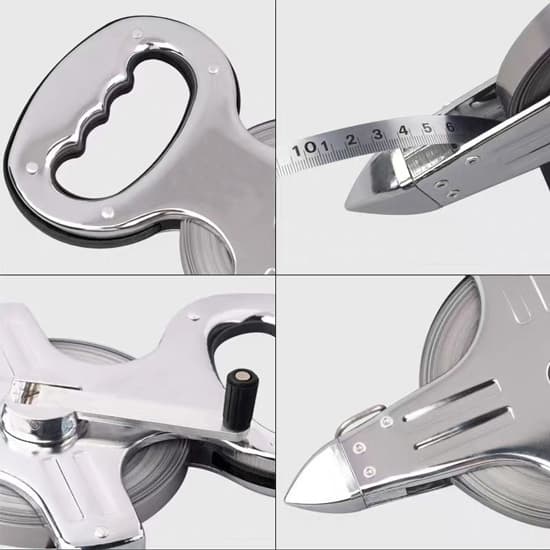

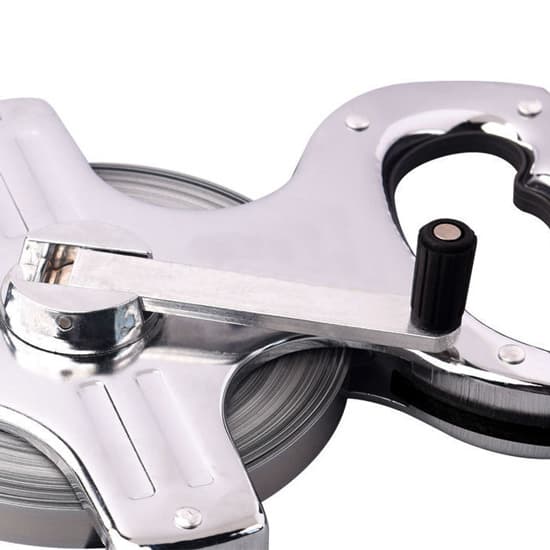

Details

Tips: How to correct measurement error of steel tape measure?

There are three main factors that affect the measurement accuracy of steel tapes: Temperature, tension of the tape, and errors caused by the gravity of the tape when the steel tape measure is suspended in the air. The error correction methods caused by these three factors are as follows:

1. Temperature

Prerequisite: There is no error when the tape is at 20℃.
Calculation formula: Error due to temperature = actual measured value × scale tape expansion coefficient × (using temperature -20℃). For example: The expansion coefficient of a steel tape measure is 0.0000115, and the error correction at 36m at the temperature of 10℃: 36000mm × 0.0000115 × (10 – 20) = -4.14mm.

2. The tension of the tape

Prerequisite: The tape does not need to be corrected under standard tension. When the steel tape measure exceeds or falls below the standard tension, it will stretch.
Calculation formula: Error due to tension = (actual measured tension – standard tension) × actual measured distance ÷ (stretch elastic force × cross – sectional area of the steel tape measure). Such as: Standard tension of 50N, correction at 36m under 100N tension: (100 – 50) × 36000mm ÷ (205800 × 2.52) = 3.47mm.

3. When the tape is suspended in the air for measurement, the error caused by the gravity of the tape.

Calculation formula: The error caused by the gravity of the tape = {(unit weight of the tape × measured distance) × measured distance} ÷ (24 × tension when measured). For example, when 100N, 36m: {(0.000194 × 36000mm) × 36000mm} ÷ (24 × measured tension) = -7.32mm.

The correction parameters differ from steel tapes of different specifications.
