3D 360-degree dash cam also called as bird view monitoring assistant system. It is the best automotive dash cam for no blind zone driving monitor, vibration emergency record or safety driving in bad environment and complicated road conditions.

Features:

4 cameras recording
Front, rear, left & right cameras record real-time traffic status simultaneously. The angle of left & right cameras can be adjusted.
360 degree reverse image
4 car-level fish-eye cameras seamlessly compose a 360-degree panorama for a birds eye view on display. It helps the driver to clearly understand the surrounding environment of the vehicle and makes reversing more convenient.
3D vision
3D vision provides more field of view, 3D/2D can be switched at will. 5 kinds of 3D vehicle models can be selected.
G-sensor
Turn on collision sensing function. After an emergency brake or collision, 360 dash cam will automatically lock the current video without being deleted/ overwritten, and save it as the accident evidence.
Replay viewing
Use the car dash cam to view the playback video anytime, anywhere, and observe the recorded content to quickly resolve driving disputes.
Loop recording
Whenever the memory card is full, the dash cam will automatically loop cover the previously unlocked videos, which will save storage space and save the most recent videos at all times.
Super night vision
In the absence of light, the night vision function is still powerful. Even in a very dark environment, cameras can still shoot a clear picture.
Automatic calibration with tape
360 dash cam supports system one-key automatic calibration. Accurate algorithm will truly achieve zero deviation of the image, and ensure no blind area in the display. Adhesive tape splicing is more convenient to operate than traditional calibration map.

Specification:

Basic	Model	T-DV360-3DB
	Weight	2.2kg
	Size	300250105mm
	Supporting language	English
	Applicable vehicle length	≤5.5m
	Certification	CE
	Warranty	12 months

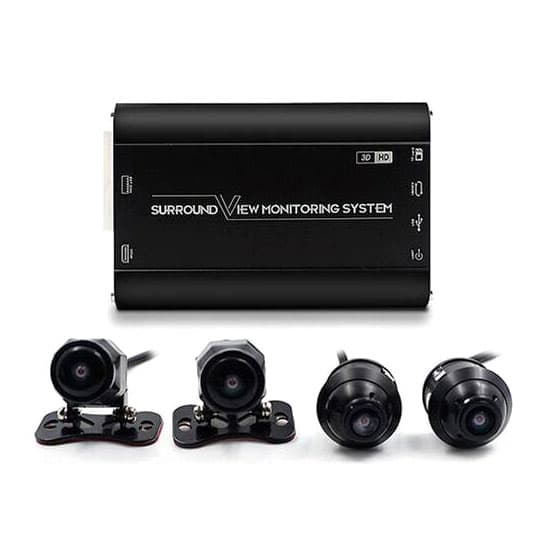

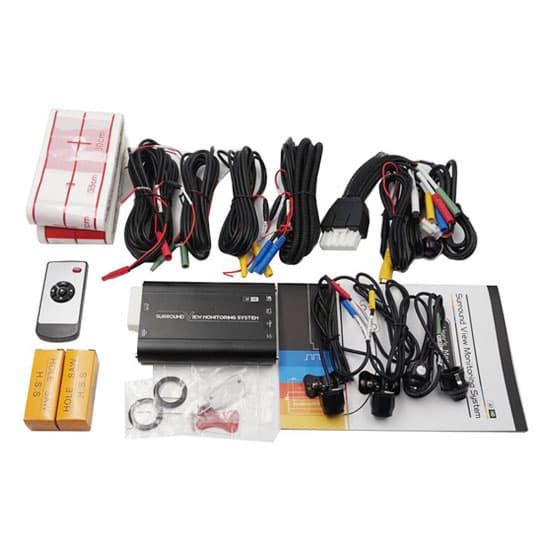

	Packing included	1 * 360 degree monitoring system host 4 * cameras (front, rear, left & right) 1 * remote control 1 * remote receiver 4 * extension cables for cameras (front-4m, rear-6.5m, left & right-3.5m) 1 * wire harness 1 * video output cable 1 * calibration tape set 1 * installation accessories set 1 * user manual 1 * color box
Display	Display *	No display (connect to car DVD reversing display) External display Note: If the reversing display is the original car own display, you need to install a decoder. If the reversing display is a non-original display on the market, you don’t need a decoder. If there is no reversing display in vehicle, you can select our external display.
	Display mode	3D/2D 360° view & front view, 3D/2D 360° view & rear view, 3D/2D 360° view & left view, and 3D/2D 360° view & right view
Camera	Type of lens	Fish-eye lens
	Resolution	1920*1080P@30fps
	Visual angle	180°
	Protection class	IP68

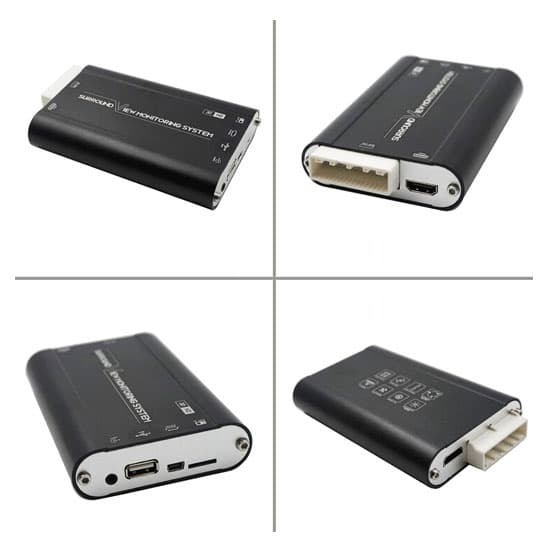

360 degree parking system host	Size	1227225mm
	Working voltage	9.6~33VDC
	Rated power	7W
	TV standard	PAL/NTSC
	Video output	AV (RCA CVBS 480P), HDMI (720P)
	Video format	MP4
	Vehicle model	5 kinds of 3D vehicle models (car, SUV, MPV)
	Supporting memory card	Maximum 32G (TF card or USB card, above C10)
	Recording time	Maximum 14.3 hours for 4 cameras (using 32G card)
	Functions	4 cameras recording synchronously 360 degree reverse image 3D/2D vision G-sensor Replay viewing Loop recording Super night vision Automatic calibration with tape

Tips: Notes for installing 360 dash cam

Camera installation
- The front and rear cameras installation position needs to be greater than 30cm above the ground, otherwise the monitoring system cannot scan, trace and splice.
- The front and rear cameras are installed in the center line of vehicle.
- The left and right cameras are installed directly below the left and right rearview mirrors of the vehicle through the hole saw, and the angle between lens and ground is adjusted to 50°.
Use of tape:
- Light-duty vehicle: vehicle with length＜5.5m and width＜2m.
- Medium-duty vehicle: vehicle with length 5.5m~6.5m and width 2m~2.5m.
- Large-duty vehicle: vehicle with length 6.5m~7.5m and width＞2.5m.
Remote control
Long press the remote control MODE key to enter the 4-camera monitoring interface, adjust the camera’s visual angle, and then perform the calibration operation. After the calibration is completed, the system will prompt that the calibration is successful.
