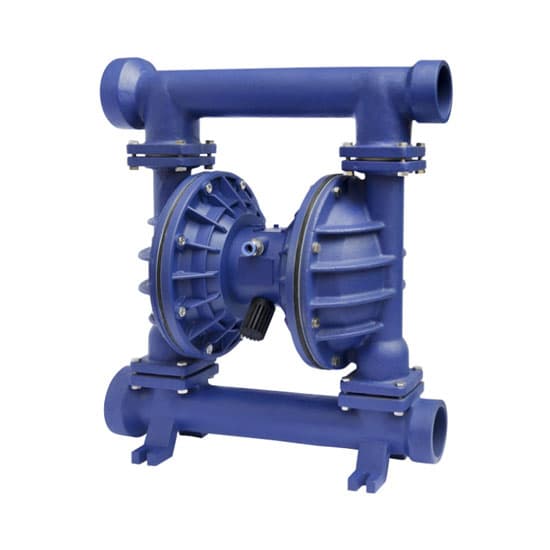

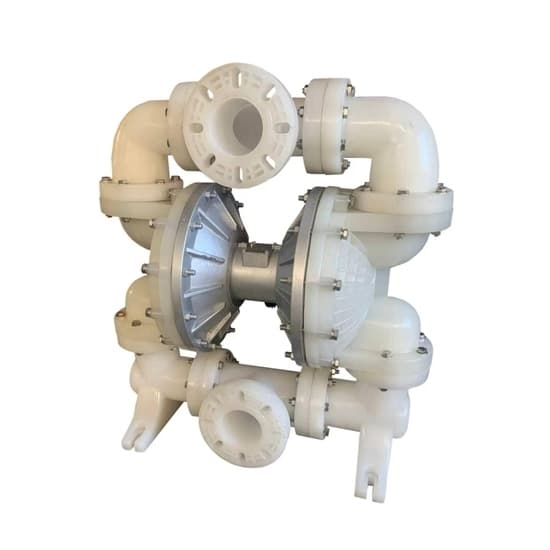

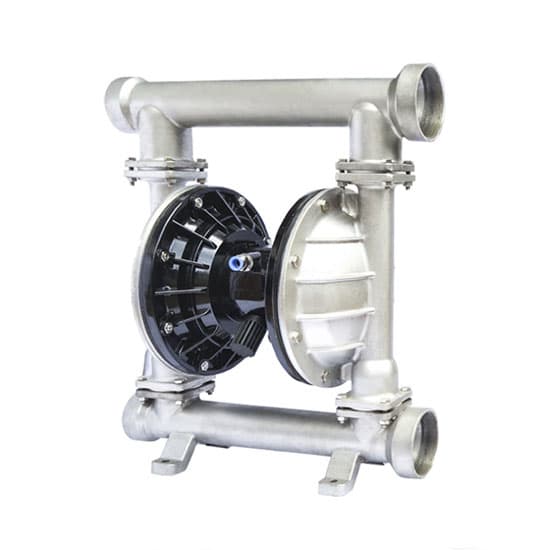

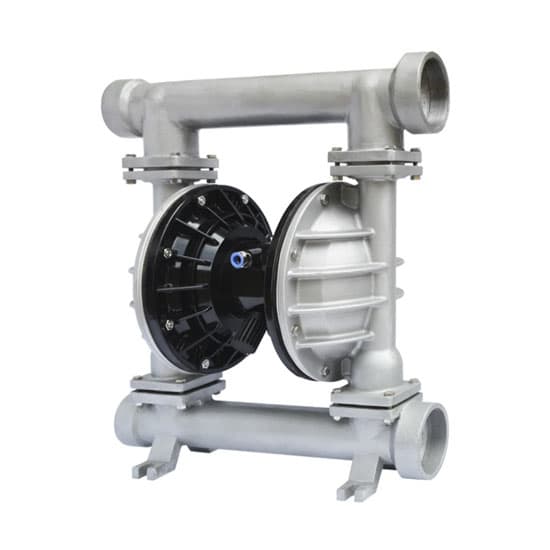

4″ Air Operated Double Diaphragm Pump, 150 GPM
Price range: $269.99 through $1,516.76
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Low price heavy duty industrial air operated double diaphragm pump for sale, you can choose cast steel, aluminum alloy and stainless steel body structure material. 4 inch pneumatic dual diaphragm pump is the best air tool for pumping a variety of toxic, flammable, volatile liquid, acids, alkalis, corrosive liquids, paint, rubber and paint binders.
Features
- Air operated double diaphragm pump adopts pilot operated type air valve to eliminate the air tool downtime and extend its service life. All the parts can be replaced when the liquid chamber is not opened.
- Designed with multiport, the pneumatic dual diaphragm pump can be installed easily.
- It structures with non-porous embedded diaphragm to improve the usage rate of diaphragm and make it more compact.
- Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
- AODD pump can be externally connected to electromagnetic valve for remote control. And the reversing valve requires no lubrication.
Specification
| Model | T-AODP-100 |
| Max. Flow | 150 GPM (568 LPM) |
| Max. Working Pressure | 120 PSI (0.84 Mpa) |
| Fluid Inlet Size | Cast Steel/Aluminum Alloy/Stainless Steel: 4 inch (DN100) NPT, Non-Metallic (Plastic): DN100 Flange |
| Fluid Outlet Size | Cast Steel/Aluminum Alloy/Stainless Steel: 4 inch (DN100) NPT, Non-Metallic (Plastic): DN100 Flange |
| Air Inlet Size | 1/2 inch NPT |
| Max. Suction Lift(Dry Suction/Wet Suction) | 18 ft. (5.48m) |
| Max. Permitted Grain | 1/4 in. (6.4mm) |
| Max. Air Consumption | 45 SCFM |
| Every Stroke Flow | 1.03 gal. (3.90L) |
| Max. Reciprocating Speed | 145 cpm |
| Body Structure Material Option | Cast Steel/Aluminum Alloy/Stainless Steel/Non-Metallic (Plastic) |
| Diaphragm Material | Butyronitrile (Default)/ Teflon (Customizable) |
| Weight | 104kg/ 116kg/ 79kg/ 110kg |
Details
| 1. Discharge outlet (top cover) 2. Sealing ball 3. Sealing seat 4. Air valve cover gasket 5. Large slider aluminum piece 6. Piston 7. V-Ring 8. Small slider 9. Large slider O-ring 10. Large slider plastic ring 11. Sliding plate 12. Sliding plate gasket 13. Plug 14. Air valve chamber cover 15. Auxiliary shaft cover 16. Auxiliary shaft O-ring |
17. Auxiliary shaft 18. Pitman shaft 19. V-Ring 20. Piston sleeve 21. Air valve chamber gasket 22. Air valve chamber 23. Muffler 24. Pitman shaft sleeve 25. Baffle 26. Column 27. Clamp screw 28. Outer clamp 29. PTFE diaphragm 30. Poly rubber diaphragm 31. Inner clamp 32. Feed inlet (bottom cover) |
Diagram of Air Consumption
Diagram of Fluid Flow
Dimension Drawing
Units: mm
Applications
Tips: What Need to Know When Using an Air Operated Double Diaphragm Pump?
1. Make sure that the maximum particles contained in the fluid do not exceed the maximum safe diameter of the pneumatic dual diaphragm pump permitted grain.
2. Intake pressure should not exceed the maximum allowable AODD pump operating pressure. Compressed air above additional pressure may cause personal injury, industry loss and damage to the air pump functions.
3. Ensure that the AOD pump piping system can accept the highest output pressure. Keep the drive air system cleaning and normal operating conditions.
4. Keep excellent exhaust and ventilating, and away from inflammable, explosive and heat sources.
5. The air outlet of the air powered diaphragm pump may be rich in solids, it is not allowed to aim the air outlet to operation area or people. It is better to connect to the fluid outlet to a safe local area away from the operating area.
6. Ensure that all parts of the touch carrier will not be damaged by corrosion from the fluid being transported.
7. Ensure that all operators understand the operation and the air diaphragm pump safe use of precautions, and it is necessary to wear protective equipment.
8. Use the pneumatic double diaphragm pump in the right ways, idle work for a long time is not allowed.
| Medium Contact Material * | , , , |
|---|---|
| Diaphragm Material * | , |
