Name: 4 Ton Hydraulic Bottle Jack, Single/Double Ram
Brand: Tool
SKU: 965
Availability: InStock

4 Ton Hydraulic Bottle Jack, Single/Double Ram

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

71 People watching this product now!

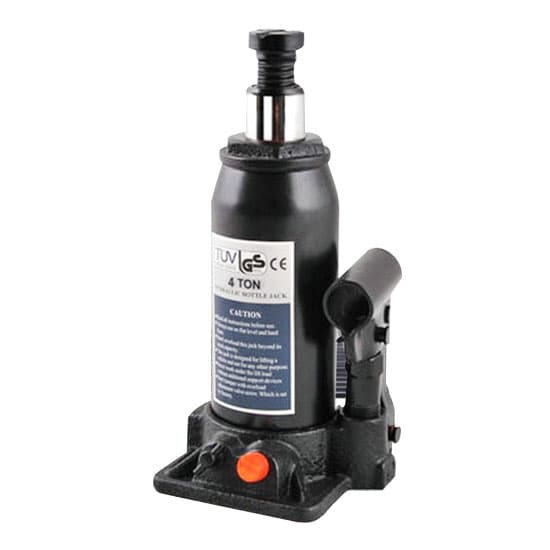

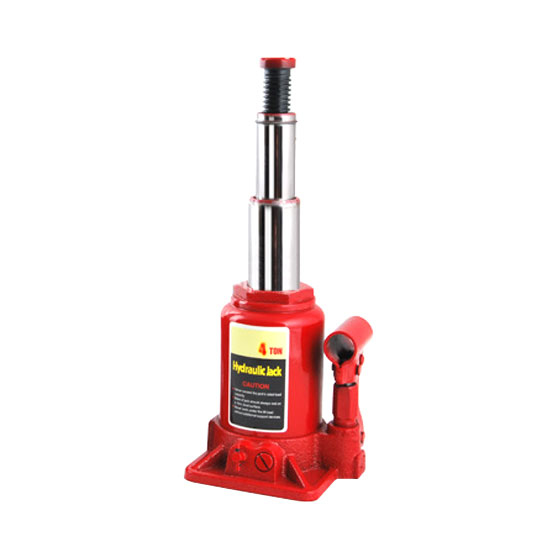

4 ton hydraulic bottle jack, single/double ram structure, optional lift height 110mm/128mm, CE/ GS/ TUV certification.

Specification:

Model	T-HBJ-E0504-1	T-HBJ-E0804
Weight	3.1kg	3.8kg
Size	122125180mm	128130155mm
Maximum capacity	4 ton	4 ton
Number of ram	Single	Double
Minimum height	180mm	155mm
Maximum height	340mm	365mm
Adjustable height	50mm	82mm
Lift height *	110mm	128mm
Material	Steel	Steel
Certification	CE, GS, TUV	CE, GS, TUV
Packing included	1 * bottle jack 2 * safety bar 1 * tool box	1 * bottle jack 2 * safety bar 1 * tool box

Tips: Application of jack
In reality, we often encounter heavy objects such as machine tools, heavy boxes, rails in the well, etc., without lifting equipment to move or lift, it is very difficult to rely on manual operation, which requires the jack to help us. Jacks are closely related to our lives and are widely used in construction, railways, automobile repair and other industries.
Currently in actual application, a variety of jacks can be used for:

The jacks used in the construction field mainly include stranded wire jacks, loose clamp jacks, through-core jacks, shielding bracket balance jacks, prestressed front clamp jacks, prestressed tension jacks, narrow space small capacity jacks, etc.
The jacks used in the automobile transportation and maintenance industry include scissor jacks, hydraulic jacks, electric jacks, etc.
X-ray knife mechanical fine-tuning jacks are used in the medical and health industry.
In addition, there are some jacks used in other fields.
