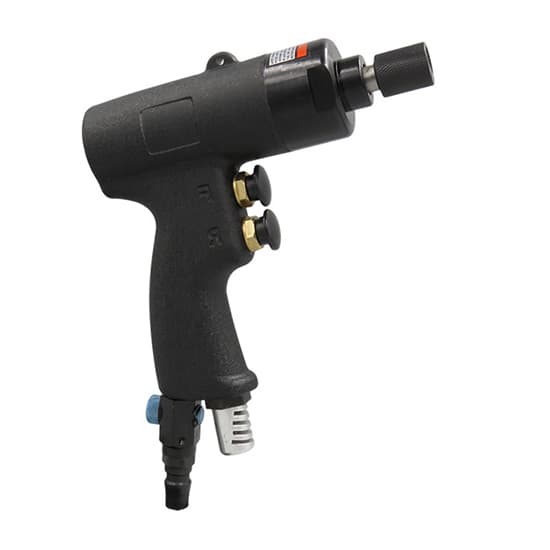

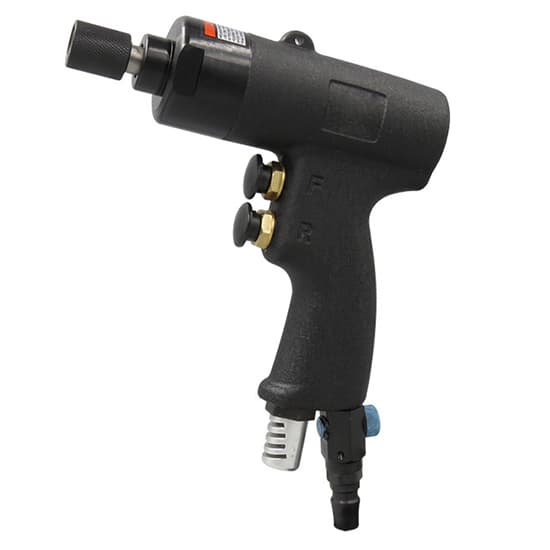

Name: 40Nm Pistol Grip Air Screwdriver, 1/4", 8500rpm
Brand: Tool
SKU: 1208
Availability: InStock

40Nm Pistol Grip Air Screwdriver, 1/4″, 8500rpm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

75 People watching this product now!

40Nm Pistol Grip Air Screwdriver, 1/4″, 8500rpm has strong moment of force, high efficiency, long service life. The screwdriver supports forward and reverse rotation, convenient one hand operation with safety switch for easy and safety start.

Specification

Model	T-YC-305P
Type	Pistol grip air screwdriver
Max Torque	40Nm
No Load Speed	8500rpm
Air Inlet	1/4″ (6.35mm)
Collet Size	1/4″
Bolt Capacity	4-6mm
Air Hose Inner	6.5mm
Working Pressure	90 psi
Average Air Consumption	0.22m³/min

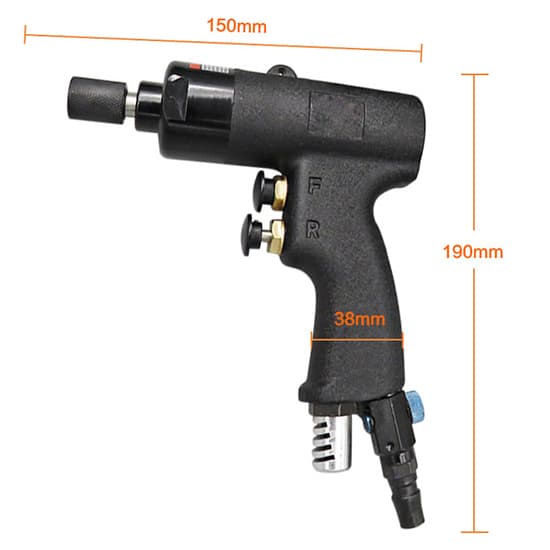

Overall Length	150mm
Weight	1kg
Packing Included	1 * Air Screwdriver 1 * Mini Screwdriver Bit

Details

Tips: How to use pistol grip air screwdriver safely?

Before using the pistol grip pneumatic screwdriver, you should pay attention to the pressure requirements, not too large or too small. Confirm the air inlet connector and lock the air pipe before starting normal operation.
Keep the air compressor dry. If you find that water is sprayed out during work, you should turn off the air compressor and drain the water from the air tank.
Try not to use quick air inlet connectors on the pistol grip air screwdriver. Do not wear gloves, scarves and loose clothes etc. during operation. When using the pneumatic screwdriver, keep the distance between the body and the tool.
It is strictly forbidden to touch the shaft with hands or other parts of the body to avoid accidents.
If the tool noise is too loud or the smoke is too much, please wear earplugs and masks in time.
Do not modify the pistol grip pneumatic screwdriver or replace tool parts at will.
It is strictly forbidden to press items on the flexible air pipe to avoid abnormal air supply or air pipe burst. After the work is completed, add a few drops of special oil into the tool and let it idle for a few seconds, then close the main air valve, remove the accessories and clean the air screwdriver.
