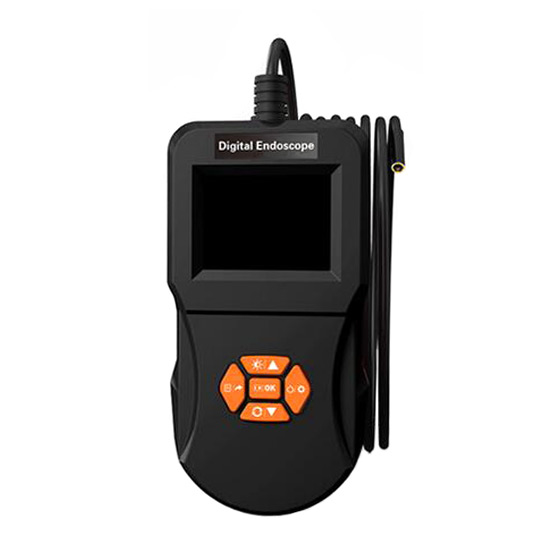

480P digital endoscope consists of a handheld 2.4″ IPS HD screen and a 0.3MP CMOS camera. The internal battery capacity is 800mAh, which can keep 90 minutes continuous working time.

Features:

0.3MP waterproof CMOS camera with optional diameter 5.5mm, 8mm
2.4″ IPS HD screen with display resolution 640*480P
7 kinds of system languages, includes English, Germany, Spanish, French, Russian, Japanese and Simplified Chinese
5 keys for simple operations
Adjustable LED lights helping endoscope camera get more high-definition images
Widely used for vehicle engine, air conditioner, pipeline checking or industrial inspection

Specification:

Model	T-INSKAM127
Shipping weight	1.1kg
Packing size	24322352mm
Camera shell diameter *	5.5mm, 8mm
CMOS camera pixel	0.3MP
Display	2.4″ IPS HD screen
Digital endoscope size	7926154mm
Color *	Black, red
System language	English, Germany, Spanish, French, Russian, Japanese, Simplified Chinese
Display resolution	640*480P
Visual angle	70°
Protection class	IP67 (only for camera)
Working temperature	0~70℃ (32~158℉)
Light	6 adjustable LED lights (for 5.5mm camera), automatic exposure function 8 adjustable LED lights (for 8mm camera), automatic exposure function
Camera cable type *	Semi-rigid cable, flexible cable
Cable length *	3m, 5m
Image format	JPEG
Video format	AVI
Bettery capacity	800mAh (continuous working time: 90 minutes)
Power supply	5VDC via USB
Certification	CE, FCC, RoHS

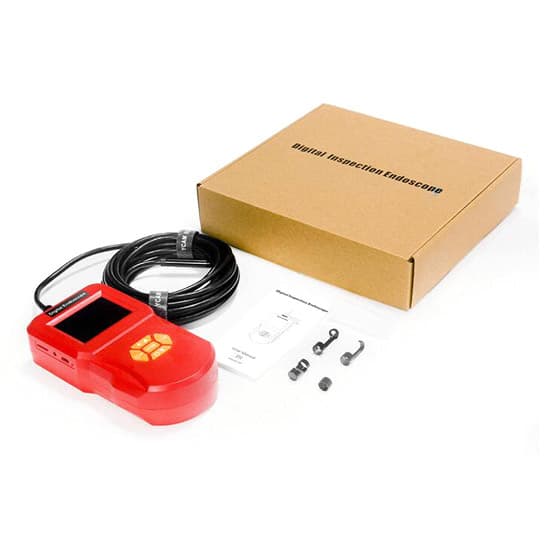

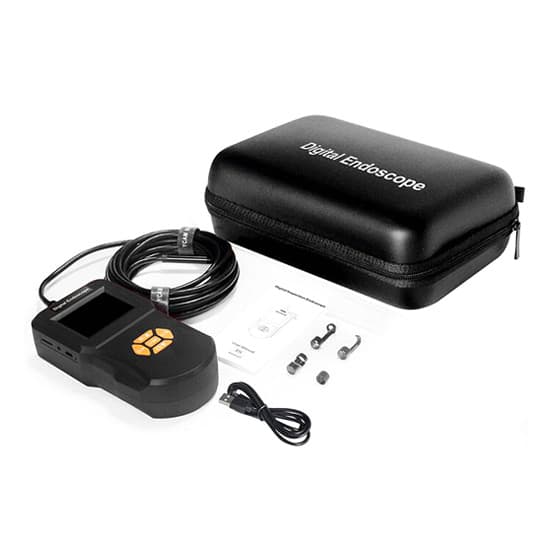

Package included	1 * digital endoscope + camera 1 * USB cable for charging 1 * mirror 1 * hook 1 * magnet 1 * waterproof ring 1 * user manual

Tips: Advantages of digital endoscope
The front end of the digital endoscope has a built-in high-definition CMOS imaging chip. It allows operator to see real-time endoscope images on the integrated handheld display screen, computer or television, and record these images and videos as archives, which can be shown to the customers later, so that they can better understand and recognize the maintenance of their vehicle.
Endoscopes are most commonly used for carbon deposition inspection of pistons and spark plugs. In the past, the inspection of carbon deposition in pistons and spark plugs could only be judged by disassembling the car engine or observing the feedback voltage changes, which was a waste of money. And now using a digital endoscope, you can directly observe various faults inside the cylinder through the spark plug hole or the fuel injection nozzle. It’s more simple and easy to operate. The cost performance is really high.
