Name: 5 Inch Angle Grinder, 10000 rpm, 5.5~11 Amp
Brand: Tool
SKU: 168
Availability: InStock

5 Inch Angle Grinder, 10000 rpm, 5.5~11 Amp

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

23 People watching this product now!

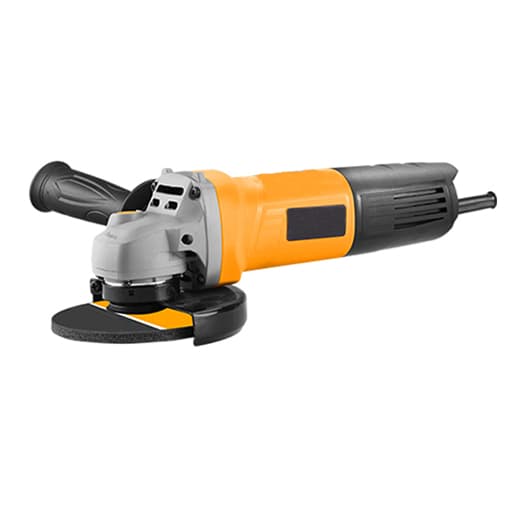

Grinding disk diameter of the electric angle grinder is 5 inch (125mm), motor power 850W or 800W. The power tool has functions of grinding, cutting and polishing, for various materials including wood, metal, tile, etc. Small size and lightweight make it more easily to operate by hands.

Specification

Model		T-CF-AG019
Grinding Disk Diameter	inch	5
	mm	125
No-load Speed		10,000 rpm
Voltage		110V/220V
Frequency		50Hz~60Hz
Rated Power		1,200W
Rated Current*	110V	10.9A
	220V	5.5A
Accessories		1 metal cutting wheel, 1 wrench, 1 handle, 1 carbon brush, 1 wheel guard
Weight		3kg

*Note: Rated current = Rated power÷Rated voltage

Angle Grinder Functions

Metal grinding & polishing
Metal cutting
Wood grinding & cutting
Wood cutting
Ceramic tile cutting

Angle Grinder Structure Diagram

Grinding Wheel Replacement for Angle Grinder

Press the spindle lock button, use a wrench to unscrew the upper pressing piece.
Put in grinding wheel, and then put in the upper press piece.
Tighten the upper pressing piece with a wrench.

Tips: Troubleshooting for angle grinder commutator producing ring fire or large sparks.

Armature of the angle grinder is short-circuited. Repair the armature.
Poor contact between electric brush and commutator. Replace carbon brush for angle grinder.
Commutator surface is not smooth. Remove debris and make commutator surface smooth and clean.
