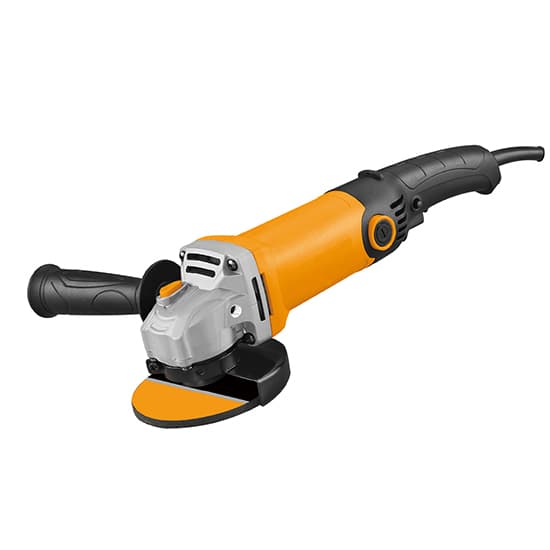

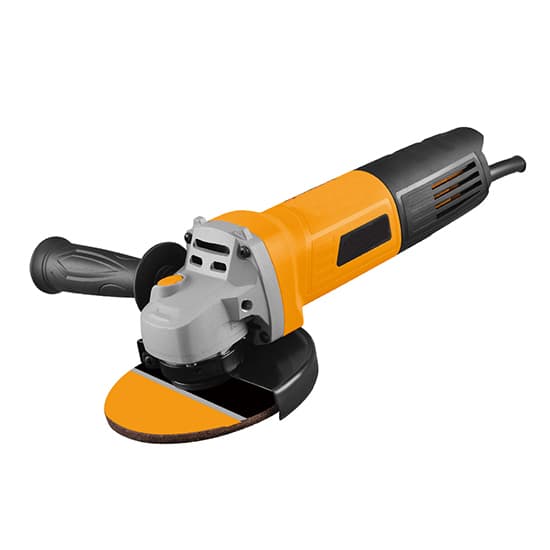

Name: 5 Inch Angle Grinder, 11000 rpm, 3.5~7.5 Amp
Brand: Tool
SKU: 166
Availability: InStock

5 Inch Angle Grinder, 11000 rpm, 3.5~7.5 Amp

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

49 People watching this product now!

The angle grinder is a small electric angle grinder with 5 inch grinding disk. High power 900W/1050W but mini-size, making the power tool portable for handheld operation. Grinding, cutting and polishing for wood, metal, ceramic tile, etc.

Specification

Model		T-CF-AG021	T-CF-AG022
Grinding Disk Diameter	inch	5
	mm	125
No-load Speed		11,000 rpm
Voltage		110V/220V
Frequency		50Hz~60Hz
Rated Power		850W	800W
Rated Current*	110V	7.7A	7.3A
	220V	3.9A	3.6A
Accessories		1 metal cutting wheel, 1 wrench, 1 handle, 1 carbon brush, 1 wheel guard
Weight		3kg

*Note: Rated current = Rated power÷Rated voltage

Angle Grinder Functions

Metal grinding & polishing
Metal cutting
Wood grinding & cutting
Wood cutting
Ceramic tile cutting

Angle Grinder Structure Diagram

Carbon Brush Replacement for Angle Grinder

Use a flat-blade screwdriver to unscrew the outer cover.
Remove the outer cover.
Take out the old carbon brush and replace it with a new one.

Tips: Common senses for using an angle grinder.

Before starting angle grinder, make sure that switch is turned off, and hold the body tightly to prevent it from being released at the moment of starting.
Motor operation will generate heat, and gear friction will also generate heat. There is a fan inside the angle grinder for heat dissipation. If temperature is moderate and heating sensation of plastic body part is within the acceptable hand feel range, it can be regarded as normal.
When angle grinder stops working, the fan will stop heat dissipation, and temperature will be dissipated through aluminum part of head housing. Because of the new running-in of gears in new machine, heating sensation will be more obvious. After a period of use, heating phenomenon will improve.
