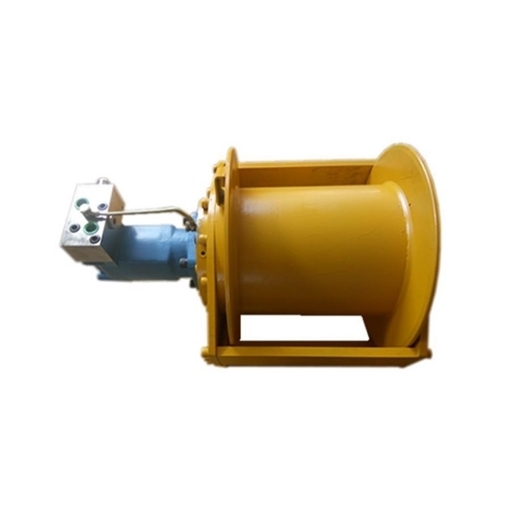

5000 lbs Hydraulic Winch for Tractor/Truck/Skid Steer
Original price was: $3,133.49.$313.99Current price is: $313.99.
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
77
People watching this product now!
Description
A hydraulic winch operates by using hydraulic power to reel in or release a cable or rope. It’s widely used in heavy-duty applications like towing, construction, and off-road vehicles. The hydraulic system supplies the essential force and control needed for effective pulling and lifting tasks.
Specification
| Model | T-HW30-25 | |
| The 1st Layer | Pull | 5000 lbs (2.5 ton) |
| Rope Speed | 0~35 m/min | |
| Working Pressure Differential | 15 Mpa | |
| Oil Flow Supply | 75 L/min | |
| Rope Diameter | 12mm | |
| Hydraulic Motor | BMR-305 | |
| Planetary Reduction Ratio | 1:5 | |
| Layer | Wire Rope Capacity | |
| 1 | 18m | |
| 2 | 38m | |
| 3 | 59m | |
| 4 | 80m | |
| 5 | 110m | |
Note: Never exceed working load limit.
Dimensions (Unit: mm)
Tips: Hydraulic Winch vs. Electric Winch
Choosing between a hydraulic and an electric winch depends on specific needs and working conditions. Here’s a breakdown of their differences:
- Power Source and Performance
Hydraulic Winch: Powered by a hydraulic system, typically from a vehicle’s power steering pump or hydraulic pump. Ideal for continuous heavy-duty use, as it can operate for long periods without overheating.
Electric Winch: Powered by the vehicle’s battery or a separate power source. Best for occasional or light-duty use; extended operation can lead to battery drain and overheating. - Load Capacity
Hydraulic Winch: Known for higher load capacities, making it suitable for heavy equipment, industrial applications, and off-road recovery tasks where significant pulling power is needed.
Electric Winch: Generally offers lower load capacity than hydraulic winches, which makes it better for smaller jobs, lighter loads, and recreational off-roading. - Durability in Extreme Conditions
Hydraulic Winch: Performs reliably in extreme weather and tough environments (e.g., mud, water, and high heat), as hydraulic systems are resistant to temperature and moisture fluctuations.
Electric Winch: Sensitive to weather conditions; water and mud can affect electrical components, making it less reliable in extreme off-road or industrial settings. - Installation and Complexity
Hydraulic Winch: Installation can be more complex, as it requires integration with a hydraulic system, which may involve specialized equipment and maintenance.
Electric Winch: Easier and quicker to install, generally involving just wiring to a power source, making it a popular choice for DIY setups. - Cost and Maintenance
Hydraulic Winch: Higher upfront costs but lower operational costs over time for heavy-duty users. Maintenance may require more technical expertise due to hydraulic components.
Electric Winch: Lower initial cost and easier maintenance. However, it can be more costly over time if used extensively due to the potential for battery strain and frequent recharging.
Hydraulic winches are best for intensive, continuous operations and challenging environments, while electric winches are suited for lighter, intermittent tasks and ease of installation.
