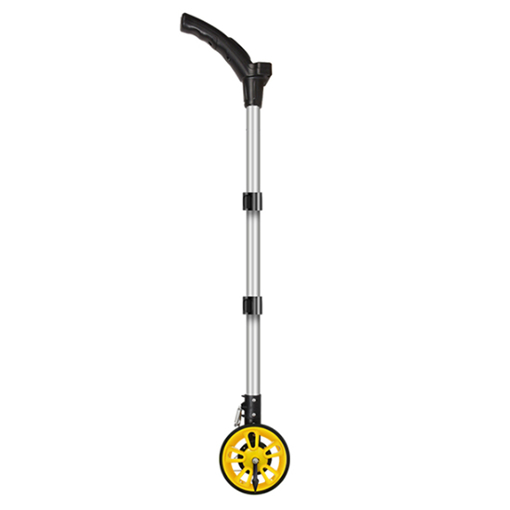

Best digital measuring wheel tool for long distance measurement, small 6 inch (160mm) wheel diameter and 99999.9m measuring range, digital LCD display system makes the reading clear, folding and retractable handle structure, can be easily put into the carrying bag.

Specification

Model	T-DMW-6
Measuring Range	99999.9m
Wheel Diameter	6 inch (160mm)
Power	AAA battery x 2
Dispaly Mothod	LCD display (with memory, reset, unit switching function, can store 5 levels of data at a time)
Accuracy	+/- 0.5%
Display Accuracy	0.1m
Thickness of Tires	4mm
Weight	0.7kg
Folding Length	70cm
Extension length	90cm

Measuring Wheel LCD Details

Applications

Tips: How to use distance measuring wheel?

1. Wall-to-wall measurement method

Place the distance measuring wheel on the ground and let the rear wheel rest against the wall behind.
Move the distance measuring wheel in a straight line until it touches the front wall.
Record the measurement reading of the dial when it is in contact with the front wall.
Coupled with the diameter of the gauge wheel (2R) is the correct distance.

2. Measurement method from the wall to the next certain point

Place the distance measuring wheel tool on the ground and let the rear wheel rest against the wall behind.
Move the distance measuring wheel in a straight line until the point pointed by the positioning pin coincides with the end point.
Record the measurement reading of the dial.
Plus the diameter of the gauge wheel (2R) is the correct distance.

3. Point-to-point measurement method

Place the distance measuring wheel tool on the ground, so that the point pointed by the positioning pin coincides with the starting point.
Move the distance measuring wheel until the point pointed by the positioning pin coincides with the end point.
Record the measured reading of the dial, this reading is the correct distance.
