Name: 6 Ton Hydraulic Bottle Jack, Single/Double Ram
Brand: Tool
SKU: 966
Availability: InStock

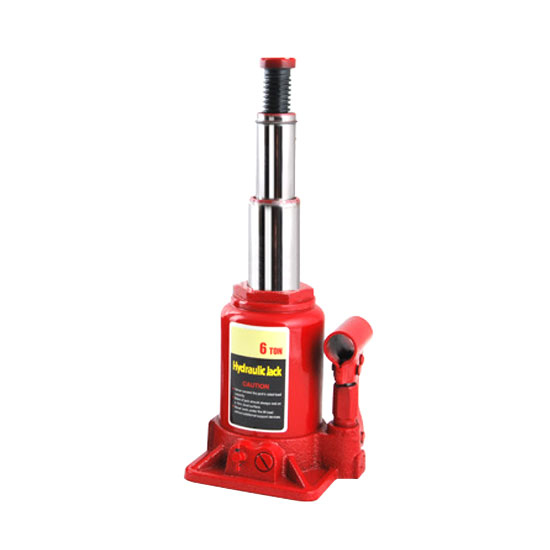

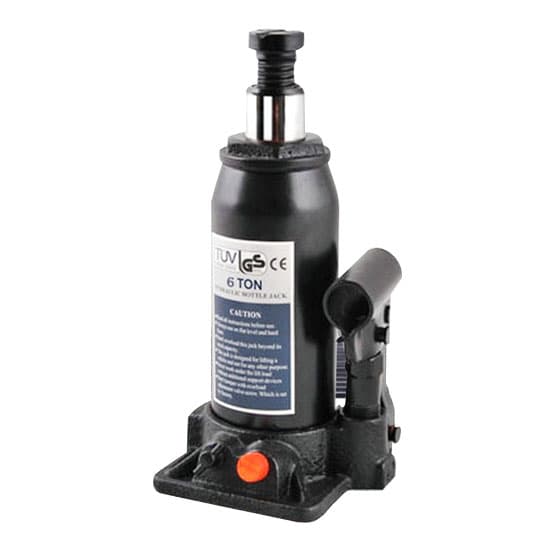

6 Ton Hydraulic Bottle Jack, Single/Double Ram

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

65 People watching this product now!

6 ton hydraulic bottle jack, single/double ram structure, optional lift height 125mm/140mm, CE/ GS/ TUV certification.

Specification:

Model	T-HBJ-E0506-1	T-HBJ-E0806
Weight	4.1kg	5.3kg
Size	127135200mm	140135165mm
Maximum capacity	6 ton	6 ton
Number of ram	Single	Double
Minimum height	200mm	165mm
Maximum height	385mm	395mm
Adjustable height	60mm	90mm
Lift height *	125mm	140mm
Material	Steel	Steel
Certification	CE, GS, TUV	CE, GS, TUV
Packing included	1 * bottle jack 2 * safety bar 1 * tool box	1 * bottle jack 2 * safety bar 1 * tool box

Tips: The working principle of bottle jack
The bottle jack works by the hydraulic principle, namely the principle of Pascal’s law. It consists of a oil tank, two pressure cylinders of different sizes, a rocker and a closing needle valve. When working, lift the small piston by rocker to suck the oil into the small pressure cylinder, and when the small piston is depressed, the oil is pressed into the big pressure cylinder. Through the control of the two valves, the pressure of the oil by the small piston is transmitted to the big piston to lift the weight. The small piston continuously reciprocates to push the heavy object to a certain height. After the work is completed, open the closing needle valve to connect the big pressure cylinder with the oil tank. At this time, as long as a little pressure is applied to the big piston, the big piston can drop down and the oil will return to the oil tank.
