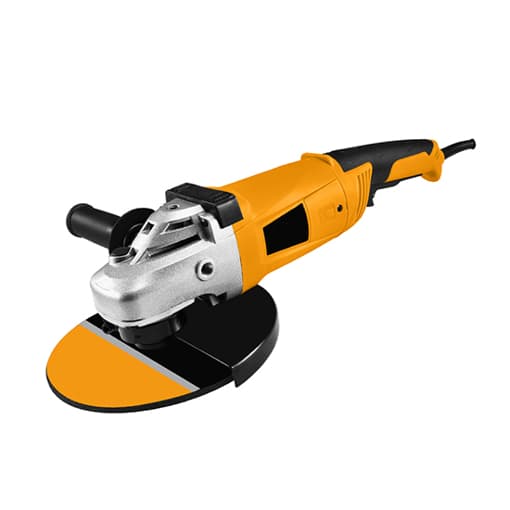

Name: 7, 9 Inch Angle Grinder, 6500/8000 rpm, 11~21 Amp
Brand: Tool
SKU: 170
Availability: InStock

7, 9 Inch Angle Grinder, 6500/8000 rpm, 11~21 Amp

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

18 People watching this product now!

Grinding disk of the angle grinder is φ7 inch (180mm) or φ9 inch (230mm). It is the best handheld electric angle grinder, integrating grinding, polishing and cutting in a tool. Applicable materials are wood, metal, ceramic tile, etc.

Specification

Model		T-CF-AG018
Grinding Disk Diameter	inch	7, 9
	mm	180, 230
No-load Speed		6500 rpm, 8000 rpm
Voltage		110V/220V
Frequency		50Hz~60Hz
Rated Power		2,350W
Rated Current*	110V	21.4A
	220V	10.7A
Accessories		1 metal cutting wheel, 1 wrench, 1 handle, 1 carbon brush, 1 wheel guard
Weight		3kg

*Note: Rated current = Rated power÷Rated voltage

Angle Grinder Functions

Metal cutting
Metal grinding & polishing
Ceramic tile cutting
Wood cutting
Wood grinding & cutting

Angle Grinder Structure Diagram

Grinding Wheel Installation for Angle Grinder

Use a wrench to rotate the upper pressing sheet out.
Put on the grinding wheel, and then install the upper pressing sheet.
Tighten the upper pressing sheet clockwise with a wrench.

Tips: Trouble shooting of angle grinder motor.

Generally, angle grinders use universal motors. The motor has two carbon brushes and there is a commutator on rotor. The most easily burnt-out part of a universal motor is commutator and the end of rotor winding.

If commutator of the angle grinder is burnt out, it is usually because of insufficient carbon brush pressure. When motor is working, if the current to be large continued, carbon brush will wear out quickly. As time goes by, carbon brush will become shorter, the pressure will become smaller, and contact resistance will become larger. At this time, commutator surface will become very hot.
If winding part of the angle grinder is burnt out, it means that angle grinder puts a lot of pressure on workpiece when it is working, resulting in a lot of friction. Motor has been in an overload state for too long, but also because the current is too large.
