Name: 720P WiFi Endoscope for Android/IOS/Windows, 8mm
Brand: Tool
SKU: 861
Availability: InStock

720P WiFi Endoscope for Android/IOS/Windows, 8mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

55 People watching this product now!

WiFi endoscope is a useful automotive repair tool for inspecting status of engine, cylinder, fuel line, air conditioner, differential and gear box. The wireless transmitter makes connection of mobile devices or PC becoming more easy and convenient.

Features:

2.0MP waterproof CMOS camera with optional diameter 8mm
Display resolution of images and video is 640*480P or 1280*720P.
Wireless transmitter and USB cable for most of the smartphone and PC

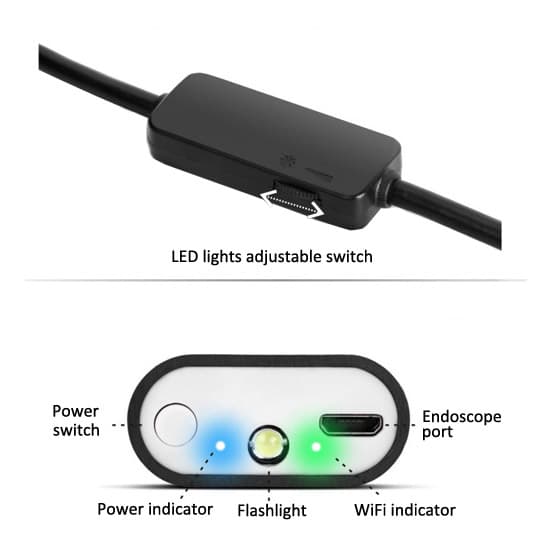

LED lights adjustable switch and camera button for simple operations
Widely used for vehicle engine, air conditioner and pipeline inspection

Specification:

Model	T-YPC99
Shipping weight	0.1kg
Packing size	1252721mm
Camera shell diameter	8mm
CMOS camera pixel	2MP
Display resolution	640480P, 1280720P
Frame rate	30fps
Visual angle	70°
Focal length	4-10cm
Protection class	IP67 (only for camera)
Working temperature	0~70℃ (32~158℉)
Light	8 adjustable LED lights, automatic exposure function
Camera cable type *	Semi-rigid cable, flexible cable
Cable length *	1m, 3m, 5m, 7m, 10m
Support operating system	Cell phone (support WiFi function): Android, IOS PC (support USB port/WiFi function): Windows XP/7/8/Vista/10
Image format	JPEG
Video format	AVI
Wireless transmitter bettery capacity	850mAh (continuous working time: 2h)
Power supply	5VDC via USB
Certification	CE, FCC, RoHS

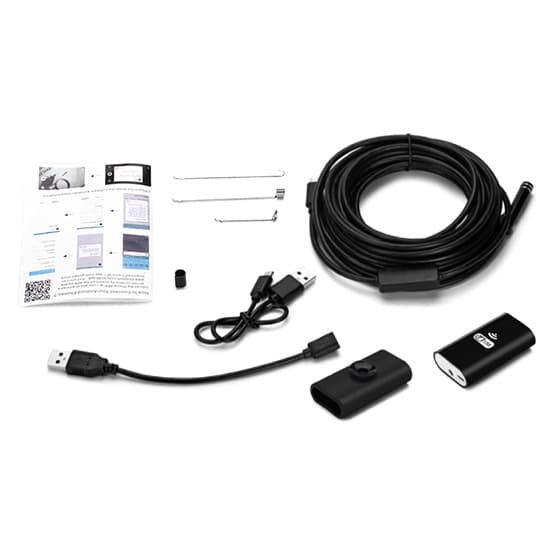

Package included	1 * endoscope camera 1 * wireless transmitter 1 * wireless transmitter sleeve 1 * USB cable for PC connection 1 * USB cable for charging 1 * fixing sleeve 1 * mirror 1 * hook 1 * magnet 1 * user manual

Tips: WiFi endoscope application examples

Engine inspection
- Oil leakage and water leakage of vehicle engine are common faults, and some places are not easy to observe. In order to accurately find the leaking part, it can be checked with an WiFi endoscope.
- If there is a crack in the cooling water channel inside the engine, it will leak internally. The water channel can be checked with the borescope.
- For wet cylinder liners, use an endoscope to check the scale of the cylinder liner and check whether the cylinder liner is corroded.
Transmission synchronizer inspection
- When the transmission is not easy to put in, and it is easy to detach by itself. It’s better to check it with the endoscope without disassembling the transmission assembly first, and then to find out the damaged parts.
- Check the synchronizer: Remove the oil drain bolt or the oil filler bolt, make a gap in the synchronization ring by moving the shift handle, and insert the endoscope camera to observe whether the synchronization ring has abnormally worn.
Transmission gear inspection
For transmission abnormal noise, vibration and other faults, the endoscope can be used to check whether the gears has problems of missing teeth, abnormal wear, gear meshing clearance, etc.
Differential inspection
- Remove the oil drain bolt or oil filler bolt and insert the endoscope camera to check the abnormal wear and meshing marks of the main gear.
- The wear condition of differential gears, planetary gears and adjusting shim can be checked.
