Name: Air Chipping Hammer, 4" Stroke
Brand: Tool
SKU: 1153
Availability: InStock

Air Chipping Hammer, 4″ Stroke

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

78 People watching this product now!

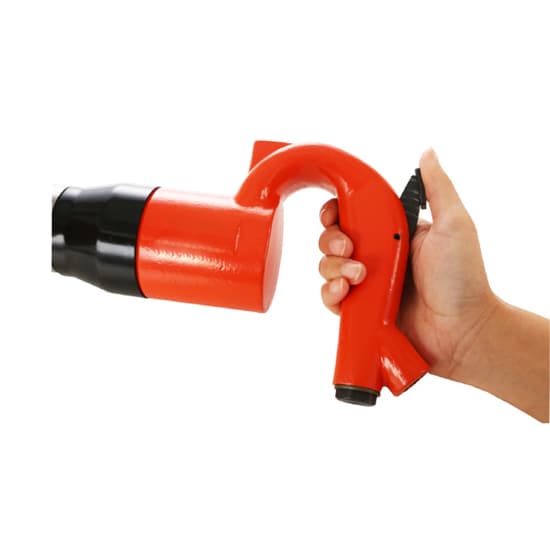

4 inch stroke pneumatic chipping hammer with high quality alloy steel body, anti-fall and anti-pressure for more durable use. The switch is designed above the handle, which is convenient and quick to use. Powerful air impact hammer tool is perfect for removing tile, paint, grout, and other materials.

Specification

Model	T-C4
Stroke Length	4″ (100mm)
Piston Diameter	1″ (25mm)
Impact Energy	8 J/min
Impact Frequency	35 Hz/min
Working Pressure	90-115 psi
Power Source	Air-powered
Air Consumption	19 L/s min
Tracheal Inner Diameter	13mm
Noise	102 dB
Net Weight / Gross Weight	6kg / 8kg
Total Length	440mm

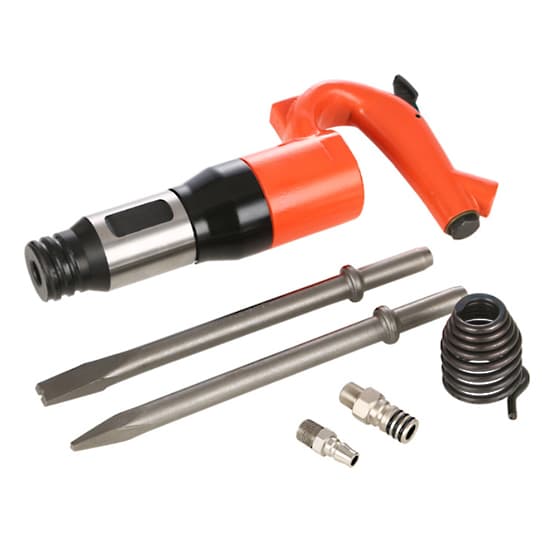

Packing Included	1 * Air Chipping Hammer 2 * Air Hammer Chisels 1 * Coil Spring

Dimension

9 tips for using 4 inch stroke air chipping hammer

Before using our 4 inch air chipping hammer, please read the operation instructions carefully to ensure safe use.
Pneumatic tools should usually work at a pressure of 87-120 psi. When working, the gas consumption of the tool should be as shown in the tool manual.
Check whether the air hammer is abnormal, whether the air pressure is normal and whether the pipe is wound before use.
It is strictly prohibited to change the structure and design of air hammer tool and accessories by yourself.
When operating, maintenance pneumatic chipping hammer or changing accessories, please wear an impact-resistant mask (face protection equipment) at all times. And when not working, please turn off the air source first, and unplug the tool and the air source connector.
Please keep the rotating shaft and accessories at a distance, do not wear jewelry or loose clothes to use hammer tools, and tie up long hair, scarf, tie and other easily tangled things.
Please bring labor protection device and clothing when operating.
Please keep your body in a balanced position and a safe foothold during operation.
Please do not aim the tool outlet at yourself or others.
