Name: Air File, 0.07" Stroke, 30000bpm
Brand: Tool
SKU: 1232
Availability: InStock

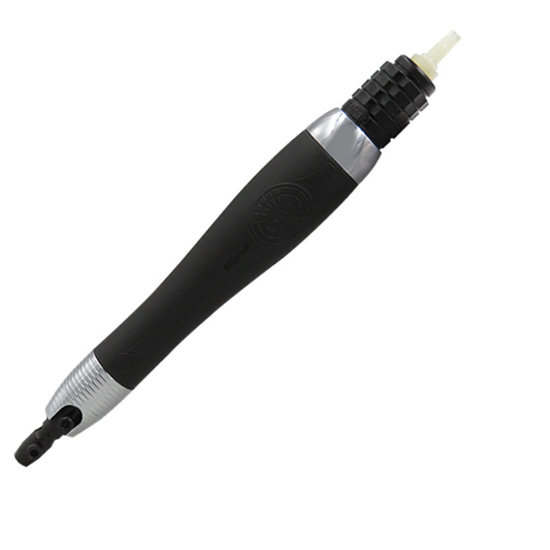

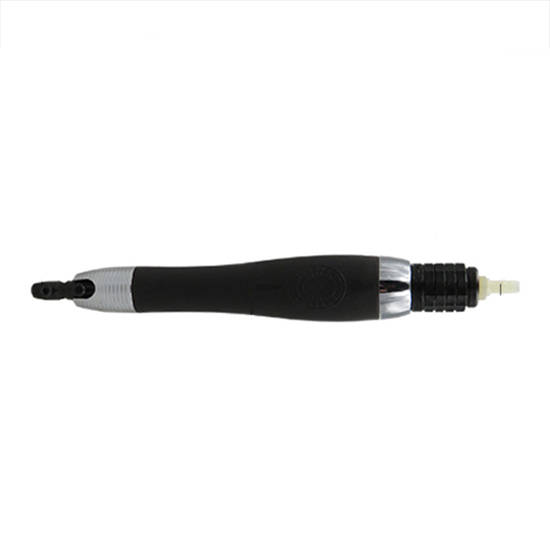

Air File, 0.07″ Stroke, 30000bpm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

43 People watching this product now!

Pneumatic file at affordable price, 1.8mm stroke, 5mm air hose, 1/4″ air inlet. PU double-layer mesh muffler hose is pressure-resistant and noise-reducing. Ergonomic handle for more comfortable operation.

Specification

Model	T-KP-757
Stroke length	0.07″ / 1.8mm
Strokes per minute	30000bpm
No load speed	30000rpm
Working pressure	90 psi
File piece diameter	3mm
Air inlet size	1/4 inch (6.35mm)
Average air consumption	5cfm
Air hose size	5mm
Product length	205mm
Net weight	0.25kg
Package weight	0.5kg
Package included	1Air file 2Chucks 170mm file 1Allen wrench 1*1200mm air hose

Details

7 tips for the use of air files

Before using the air file for operation, use special oil to fully moisturize the cylinder, blades, bearings, etc., to reduce the friction of the machine body during operation.
Clean the water and impurities inside the air file in time to avoid thick deposits and damage to the air file.
When the air file is not in use, the dust on the air file should be cleaned up and placed in a special storage box to extend the service life of the air file.
Regularly check the parts of the fuselage, and replace worn bearings and front guide wheels in time.
The working time should be within the load range of the pneumatic file, and the tool should not be overloaded.
When using the air file, the principle of handling with care must be followed to avoid unnecessary damage to the machine body.
After the pneumatic file is connected to the air source, the air file should be allowed to move freely for about 1 minute before it can enter normal operation.
