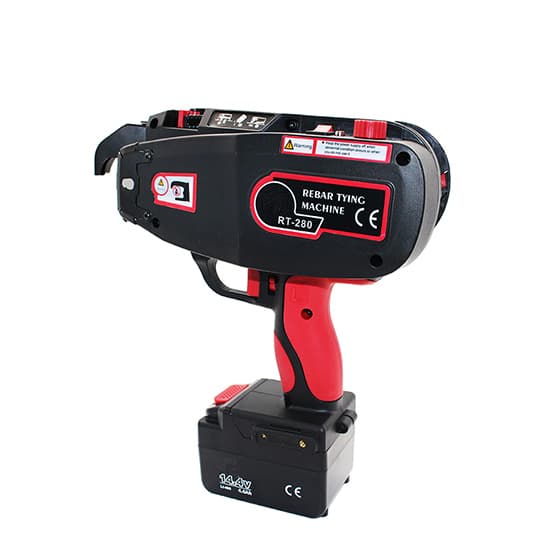

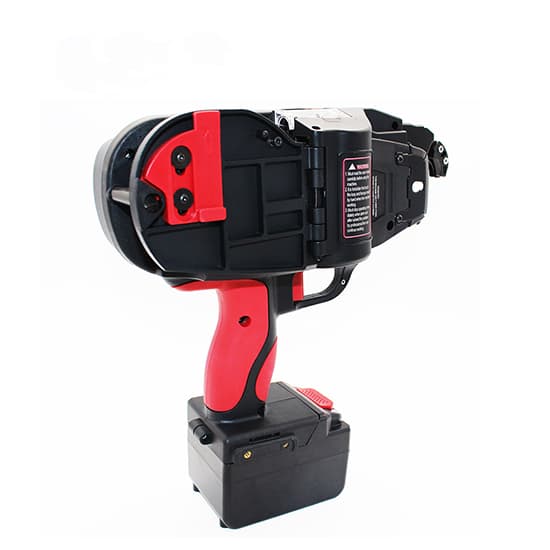

Name: Automatic Rebar Tying Machine, 18V, 4-45mm
Brand: Tool
SKU: 763
Availability: InStock

Automatic Rebar Tying Machine, 18V, 4-45mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

72 People watching this product now!

Best rebar tier has reasonable structure, advanced craft, automatic tying operation, high efficiency and convenient maintenance. Applicable for rebar of 4-45mm diameter. Also, 18V lithium-ion battery has no memory effect so you can charge the battery any time.

Specification

Model	T-RT545
Battery voltage	18 V
Applicable rebar size	4-45 mm
Ties per charge	4500 knots
Wire length per tying	60-82 cm
Wire diameter	0.8 mm
Wrap per tie	2-3 Wraps
Battery	Li-ion
Battery volume	5000 mAH
Weight	2.7 KG
Height	28 cm
Width	10 cm
Length	30 cm
Recharge time	Approx. 60 Minutes

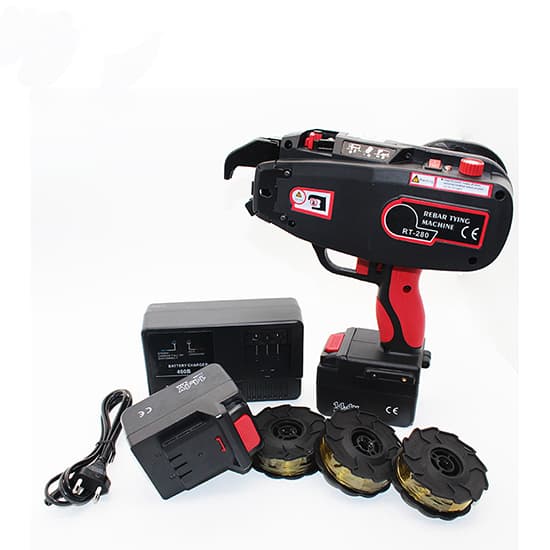

Packing included	1 * Rebar tying machine 2 * Batteries 1 * Battery charger 4 * Wire coils

Details

Tips: How to install wire reel of automatic rebar tier?

With the automatic rebar tying machine turned on, press the locking piece at the wire reel cover to open it.
Take out the wire reel, tear off the packaging film, straighten the wire head (about 10 cm) of the iron wire, put the wire reel into the automatic rebar tier in a clockwise direction, and insert the wire head into the guide wire tapered tube.
Insert the wire head into the deep taper tube of the wire guide until the top.
Cover the wire reel cover to jam the locking piece.
Pinch the iron wire with two fingers and push it forward, press the switch to send the iron wire out.
If the wire reel is exhausted or needs to be taken out, press the locking tab first, then open the wire reel cover, hold the wire reel and pull it out to the side.
