Automatic, convenient, and highly efficient operation rebar tier for diameter size 6-45mm rebar tying work, equipped with 9 volt battery. Press the power switch and wire switch to control the working condition and wire-out process easily.

Specification

Model	T-RT395
Battery voltage	9 V
Applicable rebar size	6-45mm
Ties per roll of wire	190 knots
Ties per charger	1400 knots
Wire diameter	0.8mm
Length per coil	100m
Weight per coil	0.40kg
Machine size	29.51026cm
Machine net weight	2.5kg
Battery type	NI-MH battery
Charging time	70 minutes
Package weight	6.80kg
Package size	351337cm

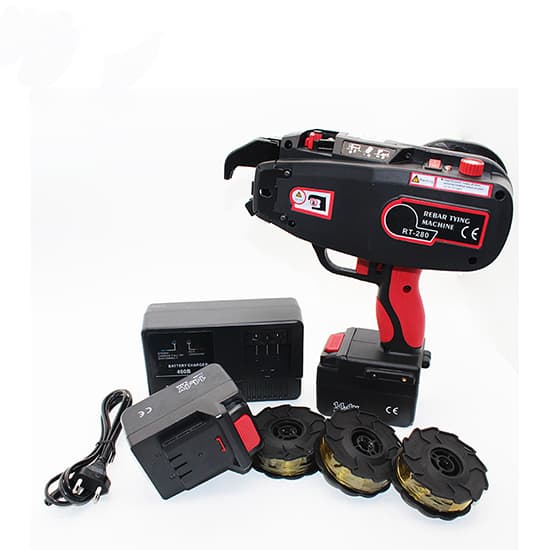

Packing included	1 * Rebar tying machine 2 * Batteries 1 * Battery charger 4 * Wire coils

Details

Tips: Working principle of 9 volt rebar tying machine

The front buckle of the rebar tier is close to the rebar strapping place.
The wire feeding mechanism draws the wire ties from the wire reel to make the wire ties form a ring in the winding mechanism to surround the part to be bundled. Then wire ties are looped and cut by the blade.
The tie wire passes through a U-shaped groove while forming a loop in the winding mechanism. After the tie wire is cut off, the U-shaped groove is driven by the motor to tighten the tie wire.
The iron wire used in the rebar tier is galvanized iron wire. The iron wire is wound in a special reel, and the reel can be put into the machine for work. Each coil of wire is about 100 meters long. Depending on the machine model or design, it can be bundled 2 or 3 turns at a time, so that the number of knots that can be bundled with each reel is about 190.
