Name: Brushless Electric Screwdriver, Torque 3/5/12 kgf
Brand: Tool
SKU: 124
Availability: InStock

Brushless Electric Screwdriver, Torque 3/5/12 kgf

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

32 People watching this product now!

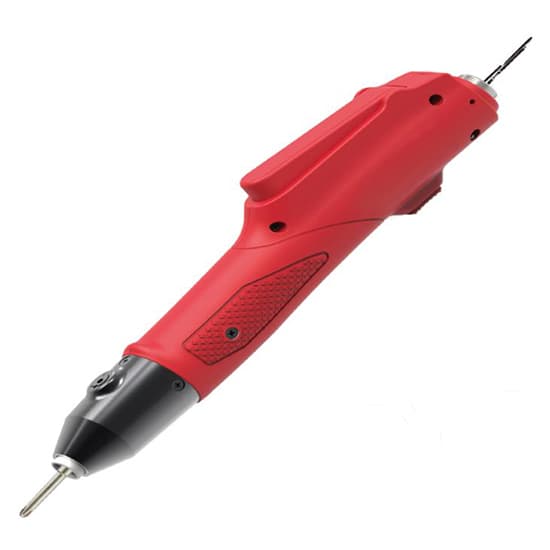

Electric screwdriver powered by brushless motor, variable speed 0-1000 rpm and stepless torque adjustment. The power screwdriver is for low/medium torque application, small size, light weight, best performance.

Electric Screwdriver Specification

Model		T-GES-3	T-GES-5	T-GES-12
Input Voltage		DC 30V
Torque Range	kgf.cm	0.3-3	0.5-5	2-12
	lbf.in	0.260-2.604	0.434-4.340	1.736-10.416
	N.m	0.029-0.294	0.049-0.490	0.196-1.176
Torque Accuracy		±3%
Torque Adjustment		stepless
Torque Adjustment Mode		internal debugging
Start Method		hand press type
No-load Speed		1,000rpm
No-load Current		0.3A
Weight		350g
Applicable Bit		φ4, φ5
Applicable Screw Diameter (mm)	Mechanical Tooth	1.0-2.3	1.0-2.6	2.0-3.0
	Self-tacking Tooth	1.0-2.0	1.0-2.3	2.0-2.5

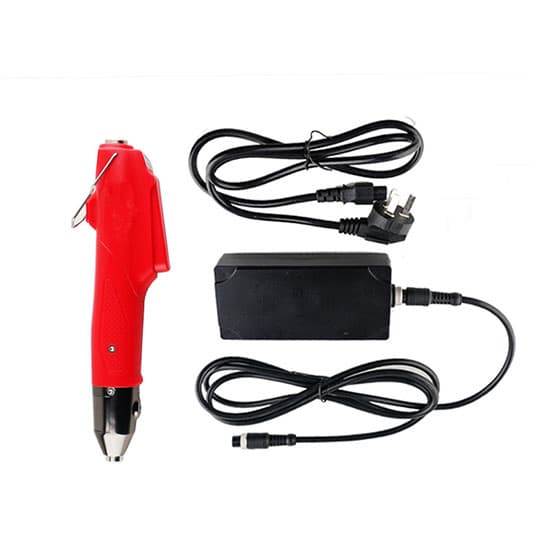

Power Controller Specification

Input Voltage	AC 100V-250V
Output Voltage	DC 30V
Output Current	2A
External Dimension	137.57632mm
Weight	260g

Features

Brushless electric screwdriver uses conical pen design, hand-held operation, clear line of sight, convenient and flexible installation and disassembling. Gear assembly is directly stamped from high-quality alloy steel, more durable and more stable.
Torque adjustment of the brushless electric screwdriver is professional, more accurate torque setting and higher torque accuracy.
Brushless power screwdriver has built-in magnetic induction stop device, high sensitivity, instant braking, low impact force, long-term use is not easy to damage.
Low vibration, low noise, low electromagnetic interference, energy saving and environmental protection, especially suitable for dust-free working environment.

Brushless Electric Screwdriver Dimension Drawing

Torque Curve Diagram

Tips: Specification measurement standard for brushless electric screwdriver electronic components.

Power cord: Measure the DC resistance value, the normal value is close to zero. Common faults: open circuit or poor contact (broken).
Micro switch: measure the resistance between normally open (resistance approaches infinity) and normally closed (resistance approaches zero). Common faults: poor contact (burning black), buttons cannot be reset normally, and the body is broken.
Protector: measure resistance, the normal value is zero. It can automatically reset after a slight overload, and it will be permanently invalid when it is too large. Thermal protector can also be disconnected in case of high temperature, and it can be automatically reset after normal temperature.
Rectifier bridge: Short-circuit the output terminals (+, -) and measure DC resistance of the output terminals (+, -).
Positive and negative switch: the pin corresponding to toggle button is a common pin. The two gears corresponding to toggle button are interlinked.
