Name: Car Engine Oil Drainer 18 Gallon
Brand: Tool
SKU: 1009
Availability: InStock

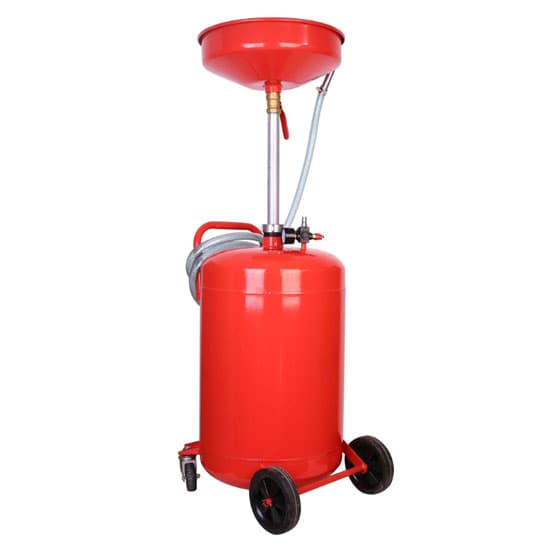

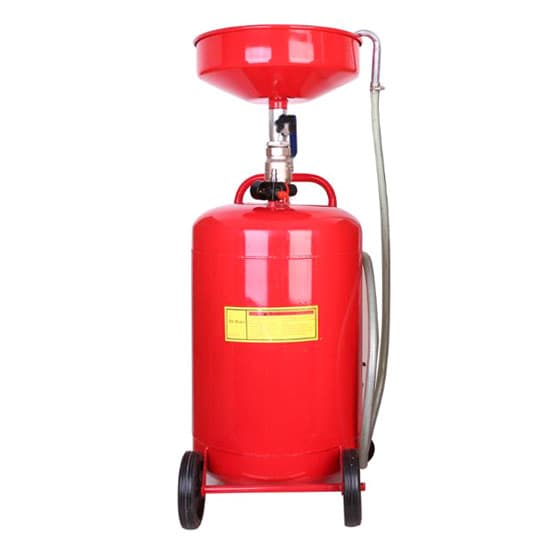

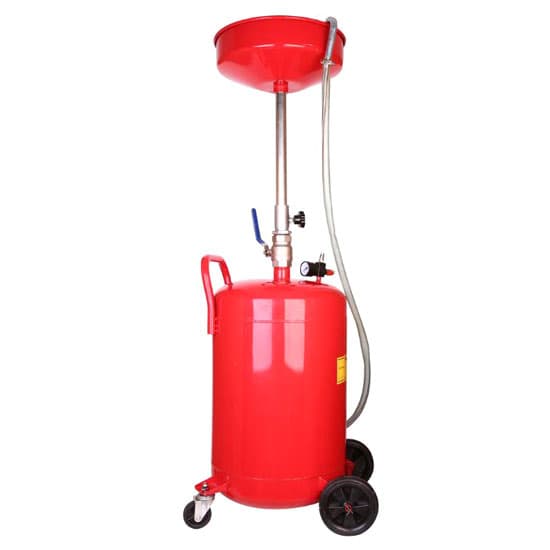

Car Engine Oil Drainer 18 Gallon

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

32 People watching this product now!

Car oil drainer has an 80L (18 Gallon) oil tank with pressure gauge and a 10L (2 Gallon) oil basin.

Feature:

Explosion-proof thickened oil tank with 80L (18 Gallon) capacity can prevent air leakage and oil leakage.
10L oil basin has a filtering function to prevent other object from entering the oil tank. It has adjustable height of 95-150cm.
Oil extractor has two directional wheels and one universal wheel, which make moving more easily.
Car oil extractor has two functions: oil storage and oil draining.

Specification:

Model	T-OD-905
Shipping weight	19kg
Shipping package (1 carton)	Oil tank package: 5341100cm
Working mode	Air compression (An air compressor is required.)
High height	150cm
Low height	95cm
Air pressure	1-8kg/cm
Oil tank capacity	80L (18 Gallon)
Oil cup capacity	10L (2 Gallon)
Oil basin capacity	10L (2 Gallon)
Medium	Lubricating oil
Maximum oil temperature	40℃ (104℉)
Functions	Oil draining Oil storage

Oil drainer assembly:

Operations:

To drain oil
With valve fully opne (valve handle in vertical position), raise drain bowl todesired height and lock in place. Drain oil into bowl/tank assembly. Check sight gauge tube on back side of tank frequently. DO NOT fill tank above maximum oil level as shown.
To transport oil drainer
With valve fully open (valve handle in vertical position), lower drain bowl to desired height. Always use the tank handle to transport the oil drainer.
To evacuate oil
Evacuate used oil from tank when maximum oil level is obtained. DO NOT overfill tank above maximum oil level sa shown above. Raise drain bowl and lock in place, close valve fully (valve handle in horizontal position), and place nozzle SECURELY into used oil collection reservoir. Connect air to inlet nopple and discharge oil. Never leave unit unattended when evacuating oil. Immediately disconnect air supply when oil is no longer discharging into reservoir.

Tips: How to change waste engine oil by a car engine oil drainer?

First, let the engine work for a period of time to increase the temperature of the engine oil and completely discharge the waste oil.
Turn off the engine, and open the engine oil cap.
Remove the bottom guard plate of the car to expose the engine oil filter and the oil drain screw. Move the car oil drainer to the bottom of the car. Unscrew the oil drain screw on the oil pan, pay attention that at the same time, the engine oil will spray out and the temperature is high. The car oil drainer will store the old engine oil.
Replace the engine oil filter and tighten the oil drain screw.
Remove the old engine oil filter with a tool and run it counterclockwise. Apply a layer of engine oil to the rubber ring on the edge of the new engine oil filter before installing it back in place. Then tighten the oil drain screw, be sure not to push it too tightly to avoid the thread overflow.
When adding new oil at the fuel filler port, the filling amount should refer to the car’s user manual.
