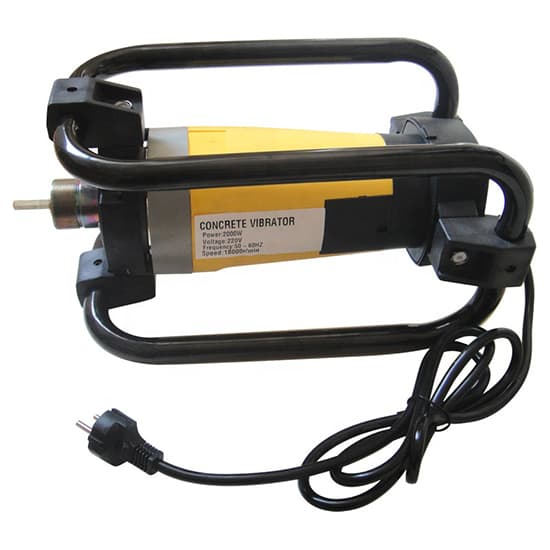

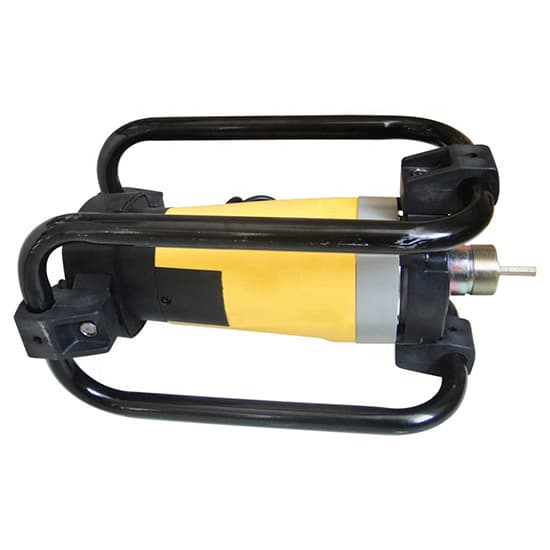

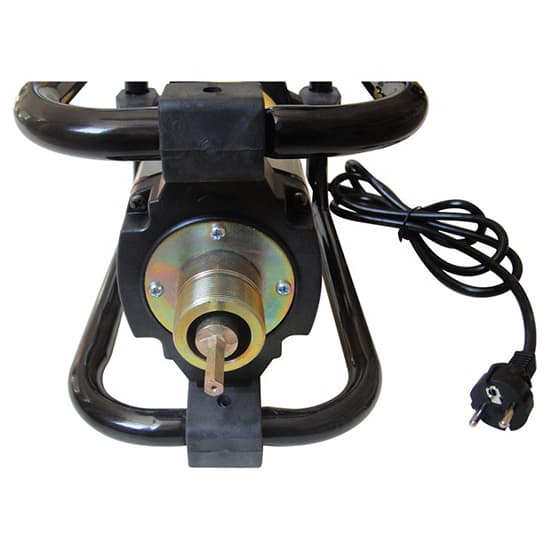

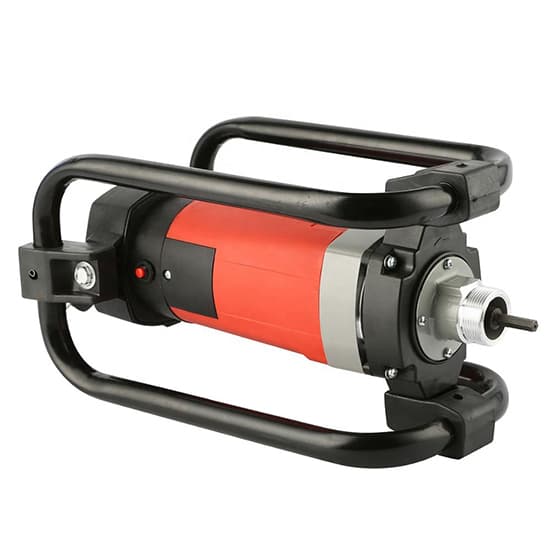

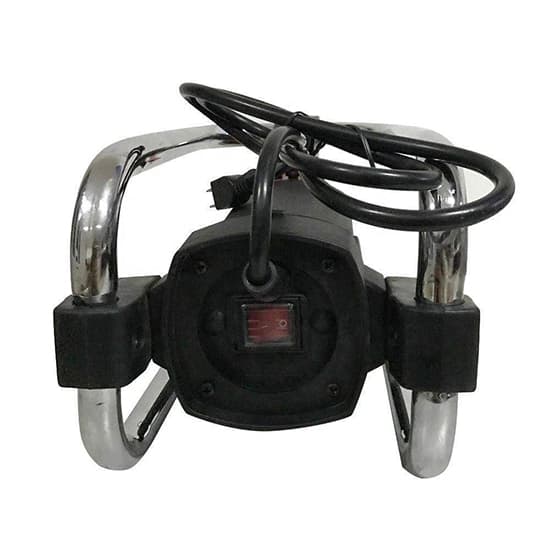

Name: Concrete Vibrator, 18000VPM, 2000W
Brand: Tool
SKU: 708
Availability: InStock

Concrete Vibrator, 18000VPM, 2000W

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

39 People watching this product now!

High frequency concrete vibrator for sale features 2000W power 220V voltage, 18000VPM working speed, operates with 4-6m long shaft, is used to build bridge, tunnel, harbor and other constructions as an important tool with reliable functioning, high safety.

Description

Model	T-ZID-UL-200H
Type	portable concrete vibrator
Power	2000W
Voltage	220V
Frequency	50Hz
Vibration Frequency	18000VPM
Net Weight / Gross Weight	6kg / 7kg
Vibrator Shaft Length	4 / 5 / 6m
Vibrator Shaft Weight	14kg / 15kg / 16kg
Certification	CE
Warranty	1 year
After-sales Service	video technical support, free spare parts, online support
Packing	caton
Packing Size	460230220mm
Application	construction, patching and other repair jobs

Features

High working efficiency: The vibrator is driven by motor, transmited by flexible shaft, then gains vibration frequency of 18000 vibrations per minute to remove air bubbles and helps concrete settle faster with low noise, high energy efficiency, high safety and good vibrating performance.
Unique design: The lightweight vibrator only weights 6kg, the compact design is easy to hold and gives easy operation, it provides matched vibrator shafts and the diameter of shaft is optional for user to choose.
Long service life: The electric concrete vibrator is combined with a compact, powerful and sturdy induction motor for saving energy, its full copper motor and less heat produced make its life more longer.
Application: Concrete vibrator works with concrete vibrator shaft, is suitable to the commodity concrete and widely applies to construction of bridge, tunnel, harbor, large-scale dam, water wheel power plant and architectural engineering.

Details

Tips: How to use concrete vibrator?

When using the vibrator, it is very important to withdraw the device slowly so that you can get enough vibration to eliminate the air bubbles in concrete. You should not leave the vibrator in the concrete for much too long time as it could cause the water to separate from the cement, hurting the look and structural integrity of the concrete.

User can start by inserting the shaft head fully, then turning it on and leaving it in place for 10 seconds. It is inserted as vertically as possible so that it can naturally sink into the concrete.
Then user withdraws the vibrator at the rate of about an inch per second until it is completely withdrawn. If there are still bubbles coming out in the concrete once you have fully removed the vibrator, repeat this process until no bubbles emerge.
