Desktop CNC Engraver Machine, 300 x 400 x 90mm
Price range: $283.99 through $499.37
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
40
People watching this product now!
Description

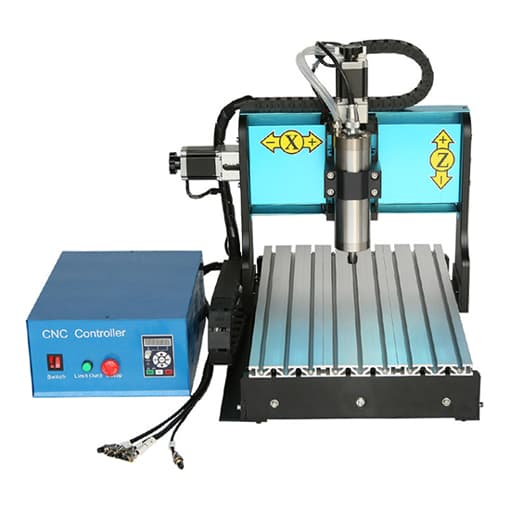

The CNC engraver machine has small size and portable desktop design. Suitable materials include metal, stone, wood and soft materials such as plastic, PVC, PCB, acrylic, etc.
Specification
| Model | T-CNC-3040 |
| Working Area | 300*400*90mm (12*16*3.5 inch) |
| Power Supply | AC 110V/220V |
| Spindle Power | 800W, 1500W |
| Motor | 57 type 76 length stepper motor |
| Driver | Independent drivers |
| Material Feed Height | 120mm |
| Table Size | 360*560cm |
| Control System | Mach3/DSP/Ncstudio |
| Working Speed | 50-4000mm/min |
| Working Accuracy | 0.03-0.05mm |
| Warranty | 6 months |
| Packing Weight | 62 kg |
Applications of Desktop CNC Engraver Machine
- Engraving and milling on PVC, acrylic, double color board, engineering plastic, solid wood and soft metal materials.
- Processing graphite electrodes. Engraving/carving for PCB circuit boards, wood models/molds, and handicrafts.
- Drilling and milling on plastic boxes, aluminum alloy cases, and panels that do not exceed the specified specifications.
- 3D engraving, drilling and milling for metal materials such as aluminum alloy and copper at a low feed rate.
- Use the engraver machine as a simple 3D CNC workbench, such as experimental laser engraving/carving, CNC dispensing, CNC positioning, metal (nameplate) marking, etc.
- Suitable for industry, technology development, advertising design, art creation, teaching and DIY enthusiasts.
Dimension Diagram
Configurations of Desktop CNC Engraver Machine
|
Tips: How to solve the three axes failure of desktop CNC engraving machine?
- One of the X, Y, and Z axes cannot move. At this time, check whether the drive block corresponding to the unmovable axis is damaged. Inspection method can use a replacement method: unplug the aviation connector corresponding to the unmovable axis, and plug it into the drive corresponding to the other movable axis.
- After the exchange, if the unmovable axis activity is normal, it means that the drive block corresponding to the axis has been damaged, replace a new one. If the unmovable axis still does not move, it means that the cable or motor is faulty and needs to be replaced. If none of the three axes can move, check whether the connection between three axes aviation plugs and the control box is intact, whether the power of control box is turned on, and whether data cable is connected to the control box and the host computer control card. If the above is normal, please contact the manufacturer.
- CNC engraving machine spindle cannot operate normally. Check the error code displayed on the LED display of frequency converter (see the error code item in the frequency converter manual).
