Name: Diamond Core Drill Machine, 130mm, 1650W
Brand: Tool
SKU: 710
Availability: InStock

Diamond Core Drill Machine, 130mm, 1650W

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

57 People watching this product now!

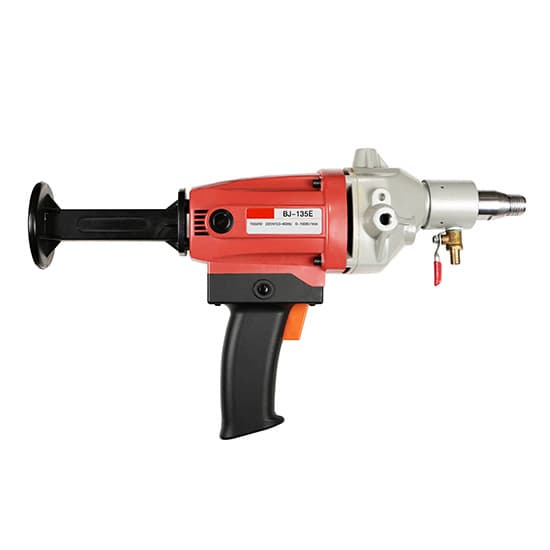

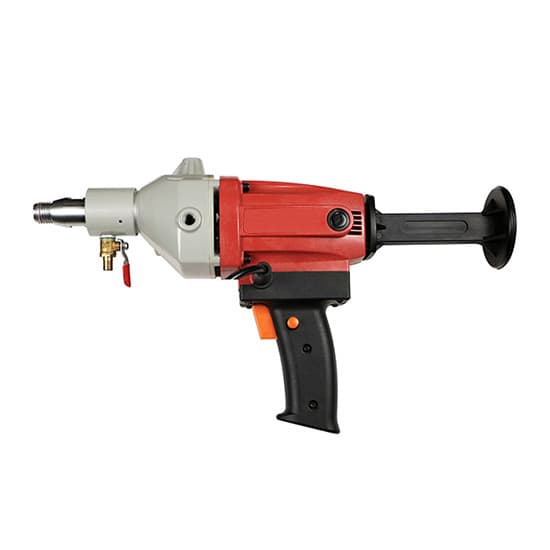

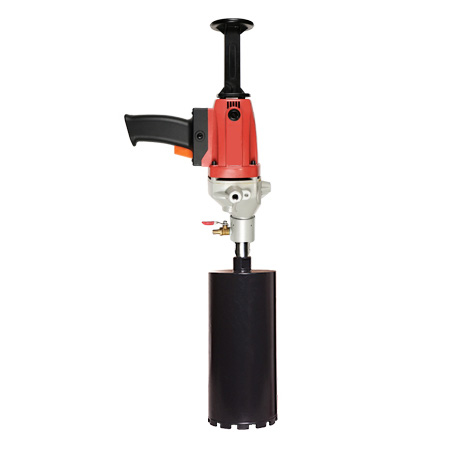

Hand-held diamond drilling machine for sale features 1650W electric power, 1800 r/min working speed, 15-135mm drilling diameter, is widely used in building construction and installation ＆ construction quality inspection as a multifunctional tool for building workers.

Description

Model Number	T-135E
Power Source	electrical power
Drill Type	wet / dry dual use
Drilling Range	15-135mm (3/5 – 5-2/5 inch)
Max. Drilling Diameter	135mm (5-2/5 inch)
Rated Voltage	110V / 220V / 240V
Rated Frequency	50-60Hz
Rated Input Power	1650W
No-load Speed	0-1800 r/min
Dimensions	480130350mm
Characteristics	portable / vertical dual use
Net Weight / Gross Weight	4.5kg / 6.0kg
Certification	CE
Package	diamond core drill * 1 + drill stand * 1
Package Size	480130350mm
Package Type	large carton box
Application	reinforced concrete, rocks, brick, stone, ceramics, glass and fire-proof materials

Features

Advantages: The device uses bulit-in and outside adjustable friction clutch and is designed with soft starting as well as overcurrent protection so it is characterized by flexible mobility, economy and durablity, safety and reliability. Both hand-held and rig-mounted drill system are available.
Application: Diamond core drilling machine is a new tool which can be used to drill holes on reinforced concrete, rocks, brick, stone, ceramics, glass and fire-proof materials, is widely used in construction quality inspection, airport runway construction, building installation, the installation of water, electricity, heat and gas and contruction of railway, bridges and tunnel.

Details

Power Plug Selection

(Note: Power plug can be customized based on your local machine standards.)

Tips: Design specification of diamond core drill machine?

The diamond drilling machine is similar to a hole saw. It consists of a diamond-encrusted steel tube mounted on a rotating shaft. During the drilling process, the temperature of the core bit is controlled with the use of water. Furthermore, this also helps get rid of dust while drilling through materials.
This diamond core drilling equipment can cut in both horizontal and vertical directions. It is preferred over other drilling devices when circular and more accurate cutting is required. Contractors can use the diamond core drill to create holes of different sizes. Core drilling is also commonly used method to provide openings for installation of water, electricity, heat and gas.
