61 People watching this product now!

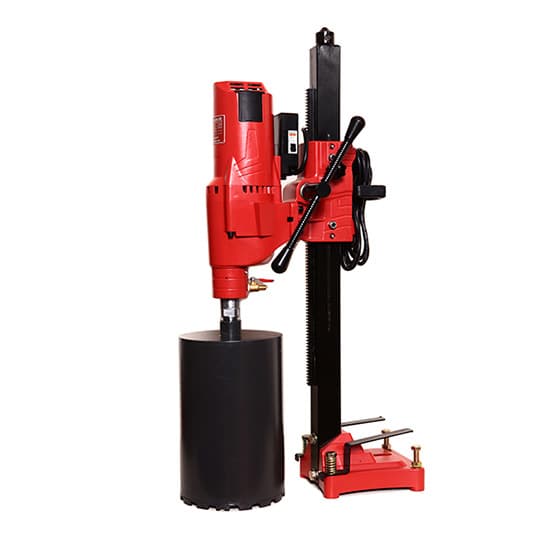

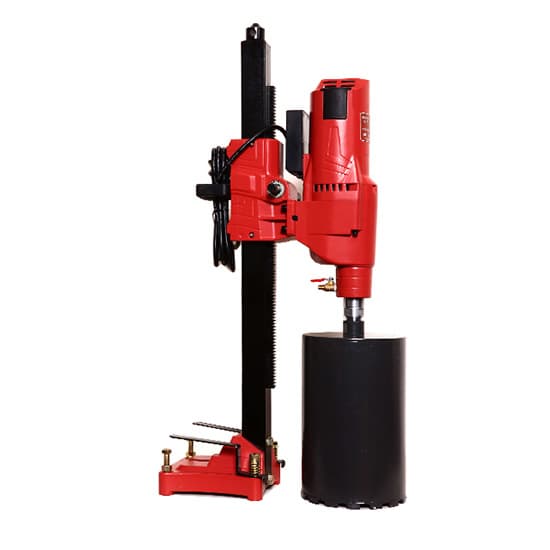

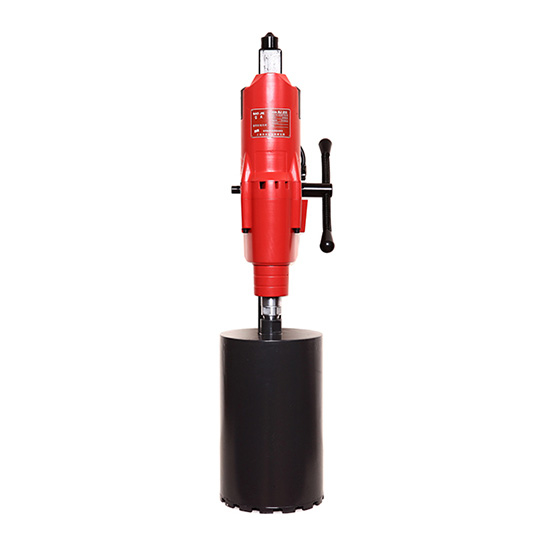

Concrete drilling machine with high quality works at 580 r/min no -load speed and 3950W electric power, max. drilling diameter up to 255mm. No dust and vertical operations, smooth hole-wall and accurate dimensions.

Description

Model Number	T-255E
Power Source	electrical power
Drill Type	wet / dry dual use
Drilling Range	15-255mm (3/5-10 inch)
Max. Drilling Diameter	255mm (10 inch)
Rated Voltage	110V / 220V / 240V
Rated Frequency	50-60Hz
Rated Input Power	3950W
No-load Speed	0-580 r/min
Dimensions	3402501000mm
Characteristics	vertical
Net Weight / Gross Weight	23kg / 25.8kg
Certification	CE
Package	single item
Package Size	3402501000mm
Package Type	large carton box
Application	reinforced concrete, rocks, ceramics, glass and fire-proof materials

Features

Advantages: The wet / dry diamond core drill uses bulit-in and outside adjustable friction clutch and is designed with soft starting as well as overcurrent protection so it is characterized by flexible mobility, economy and durablity, safety and reliability, vertical use for convenient working.
Application: Diamond core drilling machine is a new tool which can be used to drill holes on reinforced concrete, rocks, ceramics, glass and fire-proof materials, is widely used in construction quality inspection, airport runway construction, building installation, the installation of water, electricity, heat and gas and contruction of railway, bridges and tunnel.

Details

Power Plug Selection

(Note: Power plug can be customized based on your local machine standards.)

Tips: How to use diamond core drill machine?

Step 1. Fixing the expansion screw.
