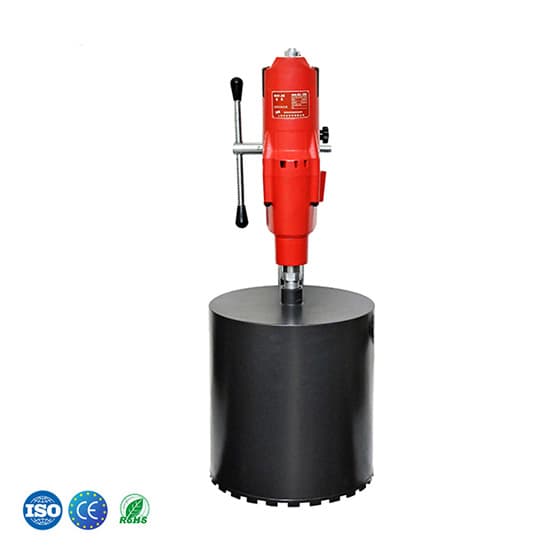

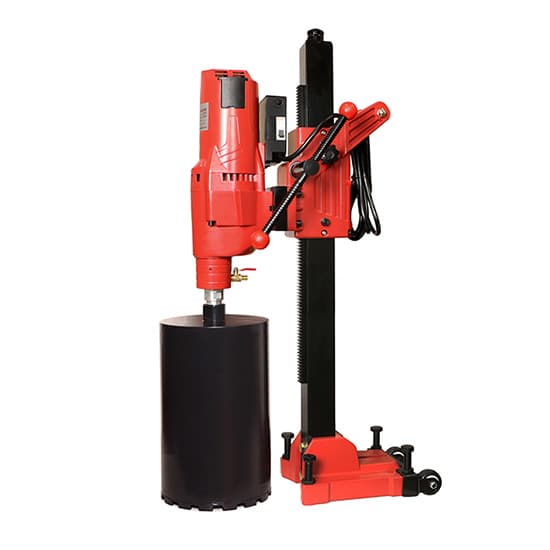

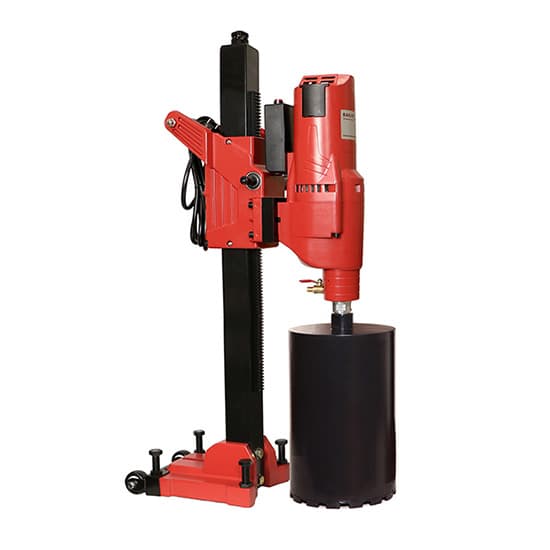

Name: Diamond Core Drill Machine, 300mm, 4350W
Brand: Tool
SKU: 717
Availability: InStock

Diamond Core Drill Machine, 300mm, 4350W

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

43 People watching this product now!

Wholesale multifunction core drill rig features 300mm diameter hole capacity, 4350W electric power, 760 r/min step-less speed, offers vertical use with high efficiency and without dust operations.

Description

Model Number	T-305E
Power Source	electrical power
Drill Typ	wet / dry dual use
Drilling Range	15-305mm (3/5-12 inch)
Max. Drilling Diameter	305mm (12 inch)
Rated Voltage	110/220v/240v
Rated Frequency	50-60Hz
Rated Input Power	4350W
No-load Speed	0-760 r/min
Dimensions	3402501000mm
Characteristics	vertical
Net Weight / Gross Weight	28kg / 30kg
Certification	CE
Package	single item
Package Size	340 * 250 * 1000mm
Package Type	large carton box
Application	reinforced concrete, rocks, ceramics, glass and fire-proof materials

Features

Advantages: The heavy-duty diamond core drill uses bulit-in and outside adjustable friction clutch and is designed with soft starting as well as overcurrent protection so it is characterized by flexible mobility, economy and durablity, safety and reliability.
Application: Diamond core drilling machine is a new tool which can be used to drill holes on reinforced concrete, rocks, ceramics, glass and fire-proof materials, is widely used in construction, quality inspection, airport runway construction, building installation, the installation of water, electricity, heat and gas and contruction of railway, bridges and tunnel.

Details

Power Plug Selection

(Note: Power plug can be customized based on your local machine standards.)

Tips: Trouble shooting about diamond core drill machine.

Symptoms	Possible cause	Remedy
The machine doesn’t start.	Fault in the electric supply.	Plug in another electric appliance and check whether it works. Check the plug connections, electric supply and mains fuse.
	Supply cord or plug is defective.	Have it checked by a trained electrical specialist and replaced if necessary.
	Switch is defective.	Have it checked by a trained electrical specialist and replaced if necessary.
	Armature or field coil is burned.	Have it checked by a trained electrical specialist and replaced if necessary.
The motor runs but the core bit doesn’t rotate.	Gearing is defective or wearing.	Have the machine repaired or checked.
Rate of drilling progress decreases.	Water press/water flow rate is too high.	Reduce the flow with the water flow regulator.
Rate of drilling progress decreases.	Core sticks inside the diamond core bit.	Remove the core.
