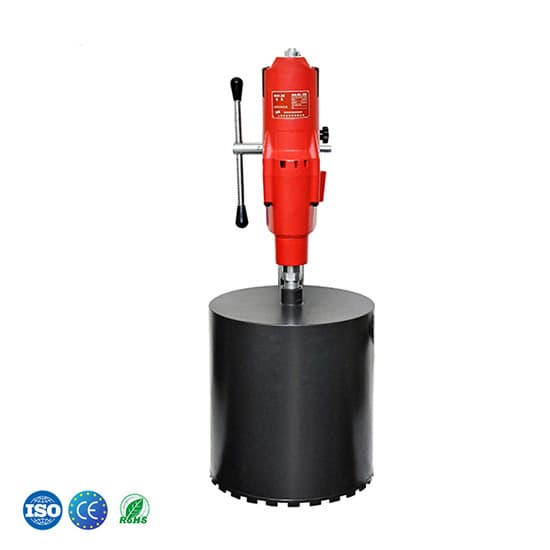

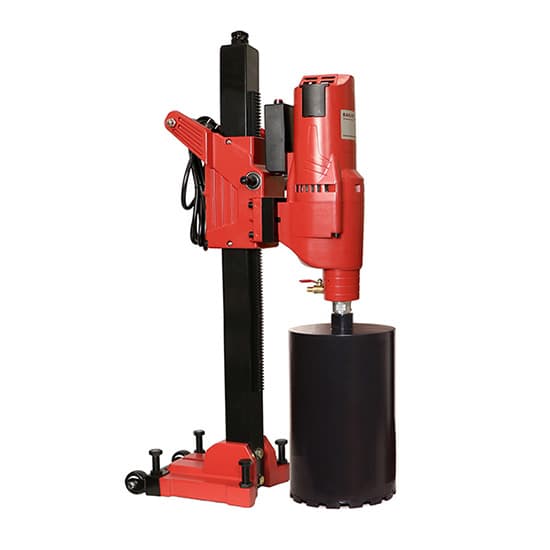

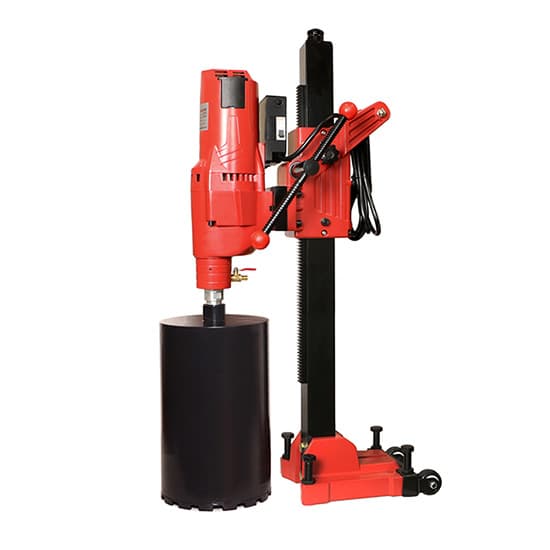

Name: Diamond Core Drill Machine, 350mm, 4680W
Brand: Tool
SKU: 718
Availability: InStock

Diamond Core Drill Machine, 350mm, 4680W

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

21 People watching this product now!

Wholesale multifunction diamond coring rig features 355mm diameter hole capacity, 4680W electric power, 600 r/min step-less speed, provides vertical use with high efficiency and without dust operations.

Description

Model Number	T-355E
Power Source	electrical power
Drill Type	wet / dry dual use
Drilling Range	15-355mm (3/5-14 inch)
Max. Drilling Diameter	355mm (14 inch)
Rated Voltage	110/220v/240v
Rated Frequency	50-60Hz
Rated Input Power	4680W
No-load Speed	0-600 r/min
Dimensions	3402501000mm
Characteristics	vertical
Net Weight / Gross Weight	28kg / 30kg
Certification	CE
Package	single item
Package Size	340 * 250 * 1000mm
Package Type	large carton box
Application	reinforced concrete, rocks, ceramics, glass and fire-proof materials

Features

Advantages: The device uses bulit-in and outside adjustable friction clutch and is designed with soft starting as well as overcurrent protection so it is characterized by flexible mobility, economy and durablity, safety and reliability.
Application: Diamond core drilling machine is a new tool which can be used to drill holes on reinforced concrete, rocks, ceramics, glass and fire-proof materials, is widely used in construction, quality inspection, airport runway construction, building installation, the installation of water, electricity, heat and gas and contruction of railway, bridges and tunnel.

Details

Power Plug Selection

(Note: Power plug can be customized based on your local machine standards.)

Tips: Trouble shooting about diamond core drill machine.

Symptoms	Possible cause	Remedy
Rate of drilling progress decreases.	Maximum drilling depth reached.	Remove the core and use a core bit extension.
	Diamond core bit is defective.	Check the core bit for damage and replace it if necessary.
	Gearing is defective.	Have the machine repaired.
	Diamond core bit segments polished.	Sharpen the core bit on a sharpening plate with running water.
	Diamond core bit segments polished.	The wrong core bit specification has been used. Send emails to us and seek advice from us.
	The slip clutch releases prematurely or slips permanently.	Have it checked by a trained electrical specialist and adjust or replace the clutch if necessary.
The motor cuts out.	The machine stops running.	Reduce the pressure applied.
	Electrics is defective.	Have the machine repaired.
	Electrics power failure.	Check the plug connections, electric supply and mains fuse.
	Carbon brushes is worn.	Replace the carbon brush.
Water leakage at the water valve or gearhousing.	Water seal is defective.	Replace the water seal.
Water leakage at the water valve or gearhousing.	Water pressure is too high.	Reduce the water pressure.
The diamond core bitcannot be fitted intothe machine spindle.	Machine spindle connection end is dirty or damaged.	Clean the spindle or replace it if necessary.
Water leakage at the spindle during operation.	Spindle is dirty.	Clean the connection end / spindle.
	Core bit is not screwed securely into the spindle.	Tighten it securely.
	Water seal or core bit connection end is detective.	Check the seal and replace it if necessary.
