18 People watching this product now!

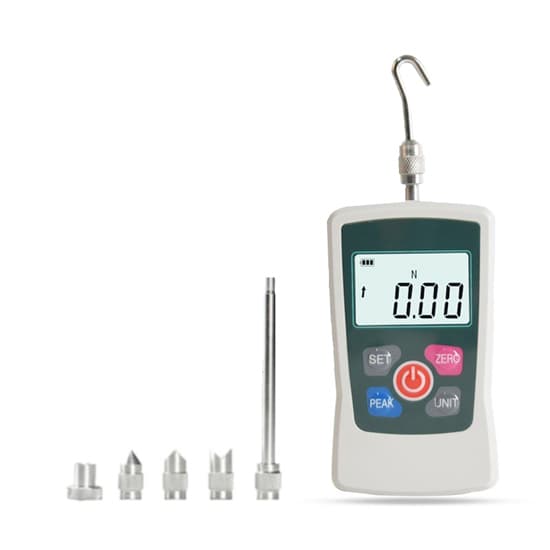

This product is an easy-to-use instrument for testing thrust and pull forces. It is widely applied in industries such as electronics and electrical appliances, construction hardware, light industry and textiles, automotive parts, ignition devices for lighters, firefighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical engineering, power machinery, and research institutions.

Feature

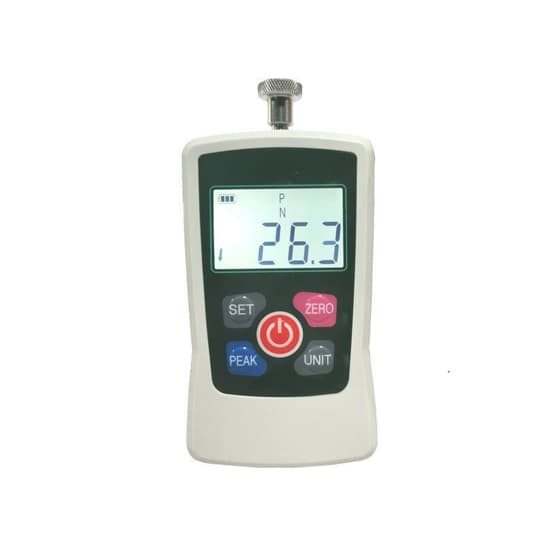

Display: The digital display uses a liquid crystal screen to measure force, making it easier to read the results.

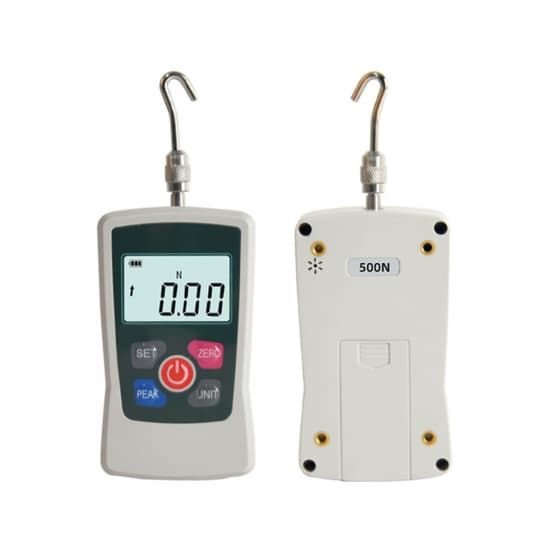

Test Hook: Made of high-quality stainless copper material, it is sturdy, durable, and has a long service life.
Four unit displays: N (Newton), kg (kilogram), lb (pound), and oz (ounce), with an accuracy of ±1%.

Specification

Model	T-FG-AMF10	T-FG-AMF20	T-FG-AMF50	T-FG-AMF100	T-FG-AMF200	T-FG-AMF500
Capacity	10 N	20 N	50 N	100 N	200 N	500 N
	1 kg	2 kg	5 kg	10 kg	20 kg	50 kg
	2.2 lb	4.5 lb	11 lb	22 lb	45 lb	110 lb
Load Division Value	0.01 N			0.1 N
	0.001 kg			0.01 kg
	0.001 lb			0.01 lb
Sensor Structure	Internal type
Power Supply	2×1.5v dry batteries
Working Temperature	5℃ ~ 35℃
Transport Temperature	-10℃~60℃
Relative Humidity	15%~80%RH
Working Environment	No source of vibration and corrosive medium around
Precision	±1%
Dimensions	1246031(mm)

Details

Dimensions(Units: mm)

Accessories & Packaging Display

Tips: How to Select a Force Gauge

Determine the Measurement Range: Choose a force gauge with a measurement range that suits your application. Ensure it can handle the maximum force you plan to test without exceeding its limits.
Consider Accuracy Requirements: Check the gauge’s accuracy specification (e.g., ±1%). Higher accuracy is essential for precision applications like scientific research or quality control.
Choose the Right Display Type: Decide between digital and analog displays. Digital gauges are easier to read and often provide multiple unit options, while analog gauges are simpler and more durable in certain environments.
Material and Durability: Ensure the force gauge is made of high-quality materials, especially for components like hooks and handles. Durability is crucial for long-term and frequent use.
Evaluate Features and Accessories: Look for additional features such as unit conversions (e.g., N, kg, lb, oz), overload protection, and included accessories (e.g., test hooks or clamps). These can enhance usability and versatility.
