Double channel spark plug tester can detect 2 spark plugs performance at the same time. All the power supply and the 2-channle test signals have independent indicator lights. The operation is very easy. And the test results are clear at a glance.

Specification:

Basic	Model	T-901
	Shipping weight	0.4kg
	Packing size	17.59.87.0cm
	Application	Checking spark plug performance

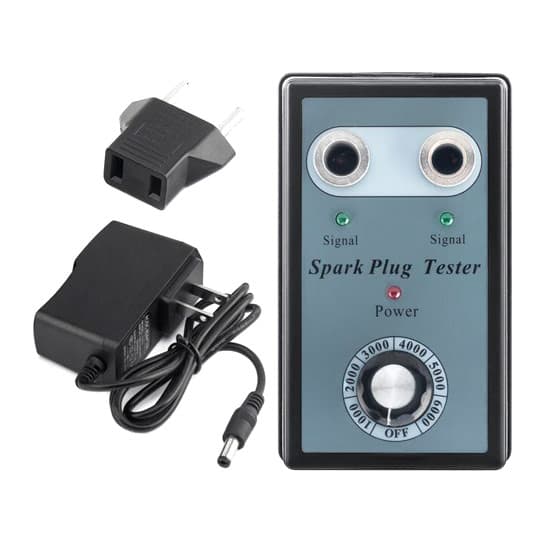

	Packing included	1 * spark plug tester 1 * power adapter 1 * EU plug adapter
Spark plug tester	Size	14.58.56.0mm
	Weight	220g
	Working voltage	DC 12V
	Speed mode	From 1000, 2000, 3000, 4000, 5000 to 6000rpm
	Number of channel	2
Power adapter	Input voltage	AC 100-240V
	Output voltage	DC 12V
	Output current	DC 1A

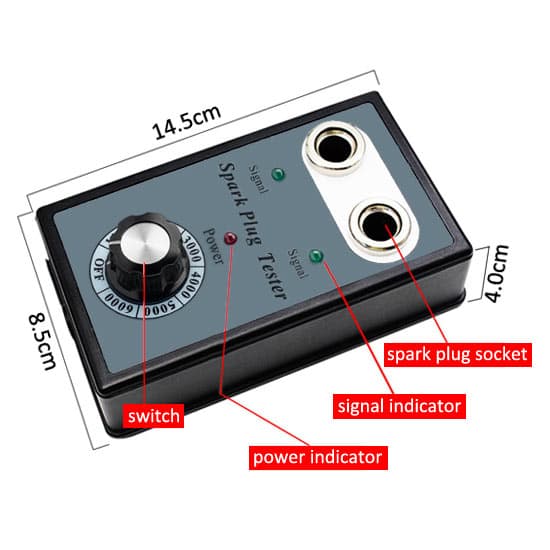

Tips: How to use a double channel spark plug tester?

Operation method

Insert the spark plug into socket 1 or 2 on the panel.
Connect the power adapter and the spark plug tester.
Turn on the knob switch clockwise. The power indicator light is on, and the device is working in 1000rpm mode.
Continue to rotate the knob switch to adjust the working mode between 1000-6000rpm. The higher the speed, the better the performance of the spark plug.

Attentions

Do not plug or unplug the spark plug when the spark plug tester is powered. To insert or remove spark plug, the power must be turned off.
When the spark plug is working, the voltage can reach thousands of volts, so be sure not to touch it to avoid harm to your body.
