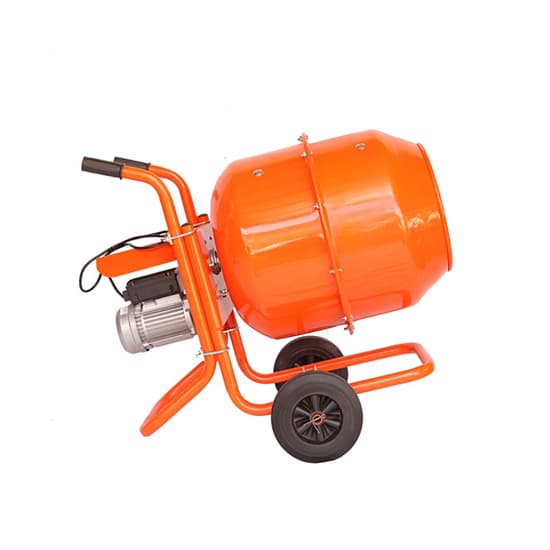

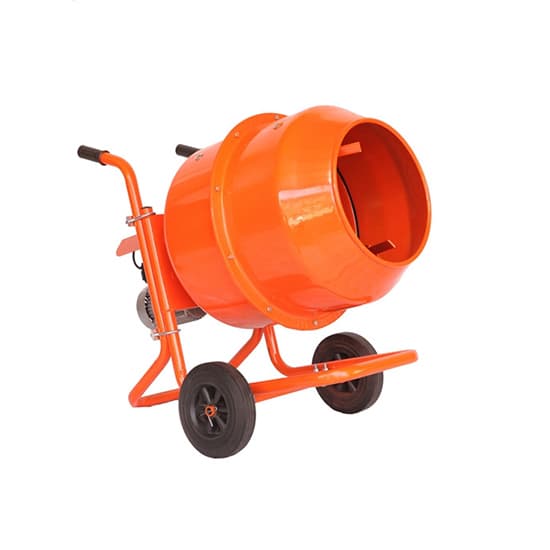

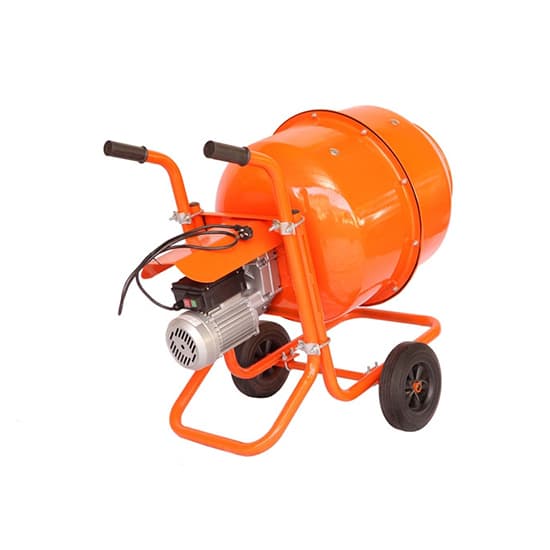

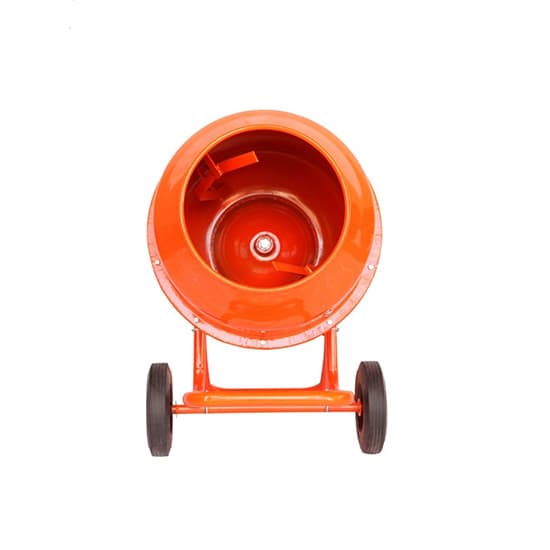

Electric Mini Concrete Mixer Machine, 120L, 40kg

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

39 People watching this product now!

Best small 120 litre (4 cu.ft) electric concrete mixer machine at cheap price, with handrail and wheels make it easy to move. High mixing performance and long life without maintenance. Mini cement concrete mixer is widely used in building site, road and bridge project, and many other construction sites.

Mini Concrete Mixer Specification

Model	T-120L
Drum Capacity	120L (4 cu.ft)
Motor Power	2.5kW
Motor Type	Single phase motor
Motor Rotation Speed	1380-1400 rpm
Voltage	220-240V AC 50Hz
Speed of Mixing	20r/min
Stirring Amount	40kg
Water Supply Mode	Manual
Mixing Way	Automatic
Working Cycle Period	1 min
Barrel Thickness	2mm
Barrel Diameter	500mm
Barrel Mouth Diameter	340mm
Barrel Height	600mm
Overall Width	610mm
Overall Length	980mm
Overall Height	850mm
Net Weight/Gross Weight	46/51 kg
Application	Construction industry
Warranty	12 months
After-sales Service Provided	Online support, no overseas service provided

Features of Small Concrete Mixer

Quality Motor: 100% pure copper motor, with thermal protection device, powerful and stable performance
Internal Structure: Three pieces blades, gravity type mixing, good performance
Drum and Roller: Drum weld metal rail, metal groove type roller, strong support force
Solid Tyre: Strong compression, more wearproof, for any situation
Universal Joint Connection: Between drum and motor, easy to install, good transmission

120L Concrete Mixer Dimension

5 tips should be known before using 120L mini concrete mixer

Before the concrete mixer is tried, you must check whether all the screws are tightened, especially the screws on the connecting part of the mixing barrel and the motor output shaft.
After turning on the power, start the electric motor first, and then add the material after the mixing drum rotates normally.
It is best to pour out the mixed materials all at once.
This 4 cubic foot concrete mixer machine uses a 100% copper electric motor. Change gear oil 0.25kg after the motor has been working for 150 hours. (Please refer to the motor labeling instructions for details)
It is a multifunction construction tool suitable for mixing small-scale sand, gravel, mortar, concrete and aquaculture feed.
