39 People watching this product now!

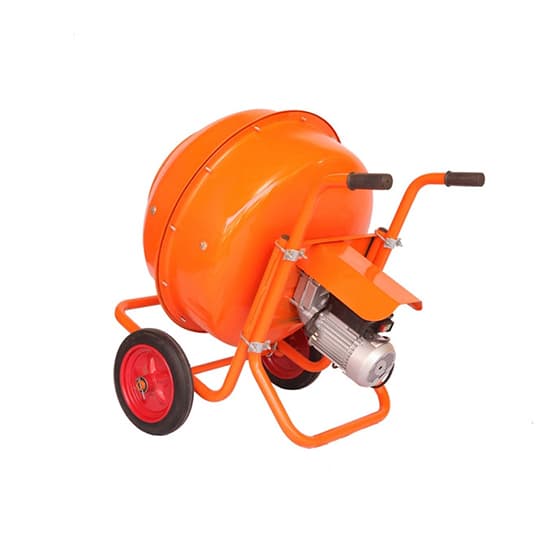

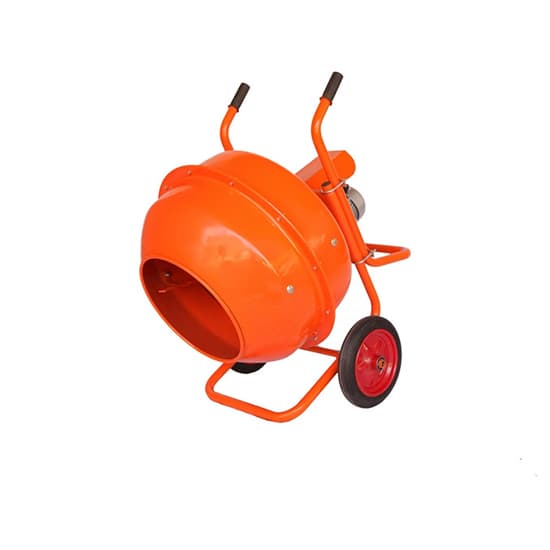

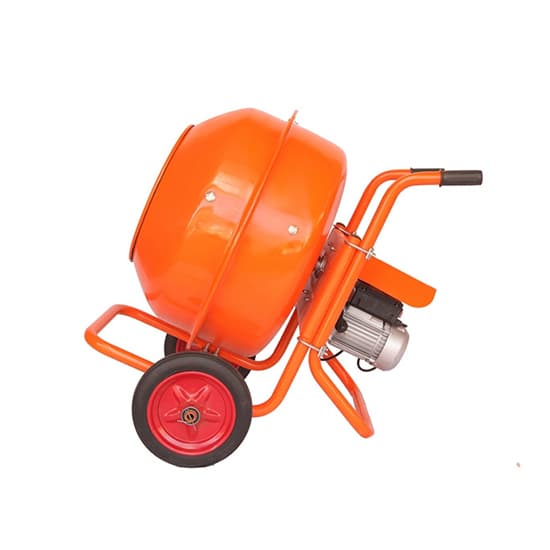

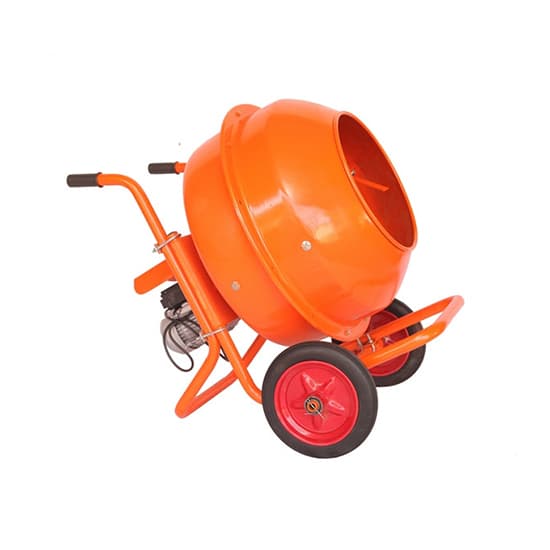

Concrete mixer is the cement, sand aggregate mixed with water and stir to make concrete mixture of the construction tool. This 160L drum capacity electric mini concrete mixer machine has the wheels, to be able to walk. The mixer’s size and weight are small and light, so it has good mobility.

Mini Concrete Mixer Specification

Model	T-160L
Drum Capacity	160L (5.5 cu.ft)
Motor Power	2.5kW
Motor Type	Single phase motor
Motor Rotation Speed	1380-1400 rpm
Voltage	220-240V AC 50Hz
Speed of Mixing	20r/min
Stirring Amount	75kg
Water Supply Mode	Manual
Mixing Way	Automatic
Working Cycle Period	1 min
Barrel Thickness	2mm
Barrel Diameter	650mm
Barrel Mouth Diameter	400mm
Barrel Height	420mm
Overall Width	700mm
Overall Length	1050mm
Overall Height	920mm
Net Weight / Gross Weight	53 / 56 kg
Application	Construction industry
Warranty	12 months
After-sales Service Provided	Online support, no overseas service provided

Features of Mini Concrete Mixer

All-steel construction, mini concrete mixer has long life span.
Large wheels, it’s easy to move the mini concrete mixer to anywhere.
Pure copper motor with strong power, high efficiency.
The upper end of the motor is equipped with waterproof baffle, which can effectively protect the motor and make it more reliable to use.

160L Concrete Mixer Dimension

Tips: How to operate 5.5 cu.ft electric mini concrete mixer safely?

When using this 160L (5.5 cu.ft) cement mixer machine, the operator must wear safety helmets and other protective equipment, and try to avoid wearing loose clothing to avoid the danger of machine entanglement.
Do not sprinkle water on the electric motor when adding water to avoid machine leakage accidents.
When the concrete mixer machine is working, someone should be around to take care of it. Children should not be allowed to play with the machine.
When the machine is unloading, no one is allowed to stand in front of the mixing drum. If the machine is overloaded, shut it down immediately and clean the mixing material at the discharge port of the mixing drum and restart it.
If the motor fails, it must be repaired by professionals to avoid danger.
