Name: Electric Mini Concrete Mixer Machine, 500L, 400kg
Brand: Tool
SKU: 698
Availability: InStock

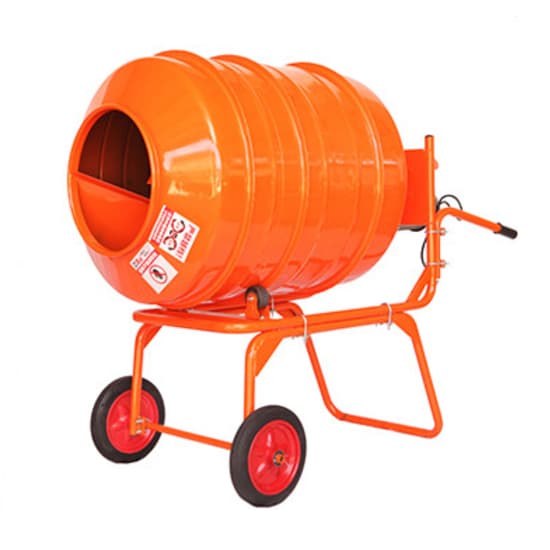

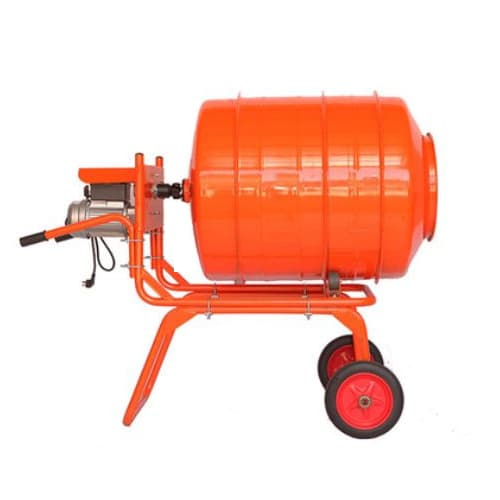

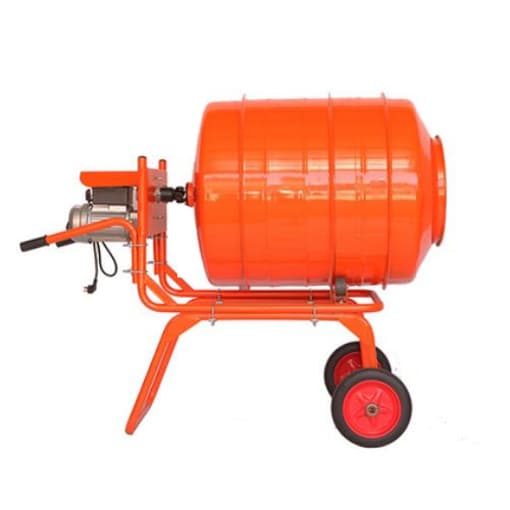

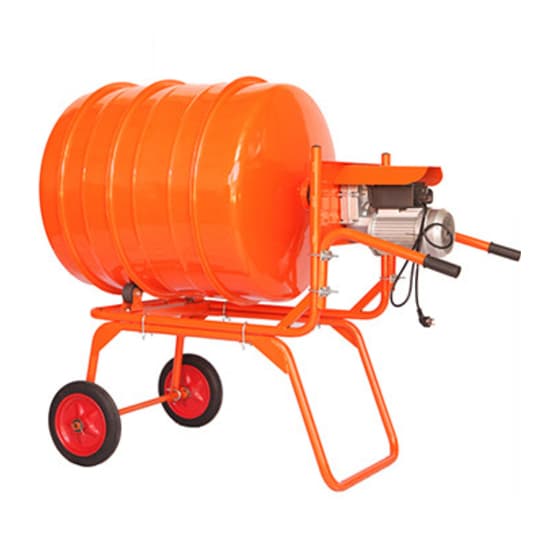

Electric Mini Concrete Mixer Machine, 500L, 400kg

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

64 People watching this product now!

When you want to mix concrete, cement, stones, mud, mortar, buy this electric mini concrete mixer that gives you high performance. It has 500 litre (17.5 cubic foot) small drum capacity, 400kg mixing capacity and 4kW motor power, a construction tool applies to engineering & construction, farm and so on.

Mini Concrete Mixer Specification

Model	T-500L
Drum Capacity	500L (17.5 cu.ft)
Motor Power	4kW
Motor Type	Single phase motor
Motor Rotation Speed	1380-1400 rpm
Voltage	220-240V AC 50Hz
Speed of Mixing	20r/min
Stirring Amount	400kg
Water Supply Mode	Manual
Mixing Way	Automatic
Working Cycle Period	1 min
Barrel Thickness	2.5mm
Barrel Diameter	750mm
Barrel Mouth Diameter	420mm
Barrel Height	1030mm
Overall Width	790mm
Overall Length	1600mm
Overall Height	1360mm
Net Weight / Gross Weight	110 / 115 kg
Application	Construction industry
Warranty	12 months
After-sales Service Provided	Online support, no overseas service provided

Features of Mini Concrete Mixer

All-steel construction, mini concrete mixer has long life span.
Large wheels, it’s easy to move the mini concrete mixer to anywhere.
Pure copper motor with strong power, high efficiency.
The upper end of the motor is equipped with waterproof baffle, which can effectively protect the motor and make it more reliable to use.
Suitable for construction site, homeuse, farm.

500L Concrete Mixer Dimension

Tips: 500L electric mini concrete mixer for rural concrete road construction

The client intends to build a rural concrete road with 1.5 meters wide, 3 kilometers long and 10 cm thick. Since the scale of this concrete cement project is not large, the customer wants to buy a small concrete mixer at wholesale price through Tool.com to mix concrete for engineering work. He wants to control the cost at around $100,000 and ask whether the use of a small concrete mixer can meet such requirements.

We assist customers to make economical and practical solutions for this case. According to calculations, the total cost of laying such a cement country road is about 180,000 dollars. In addition to labor costs, small concrete mixer prices and electricity costs etc., the overall construction cost about 200,000 dollars. It is suggested that since it is a country road, whether to consider reducing the concrete surface to about 6 cm, the budget can be reduced to about half. The client adopted our company’s plan to reduce the cement hardening of the country road to 7 cm, which happened to control the budget at about 100,000 dollars. For this, the client was satisfied. Finaly, he purchase 3 sets of 500L (17.5 cu.ft) portable small concrete mixers to prepare for construction work.
