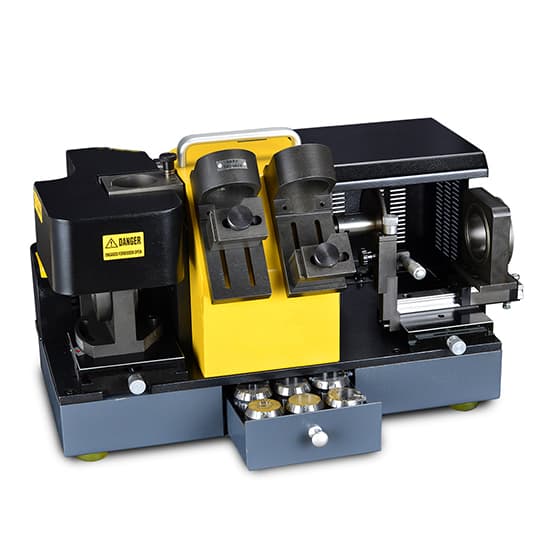

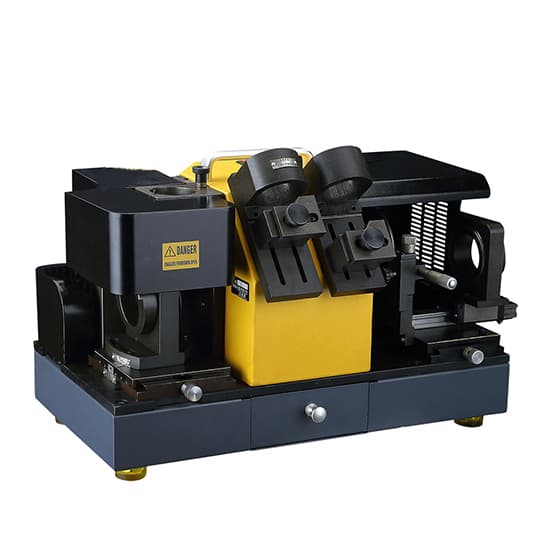

The end mill sharpener can separately sharpen and grind 2-flute, 3-flute, 4-flute end mills, or directly cut out the cutting edges with tungsten rods. Above Ф12mm is suitable for grinding 6-flute end mills. 2 optional grinding wheels. CBN grinding wheel for grinding white steel mill cutter, SDC grinding wheel for grinding carbide. Accurate tool setting without chipping.

Specification

Model	T-MCG-X7
Grinding Range	Ф12mm-Ф30mm
Rated Voltage	220V 50/60Hz
Motor Power	250W
Rotation Speed	4,400 rpm

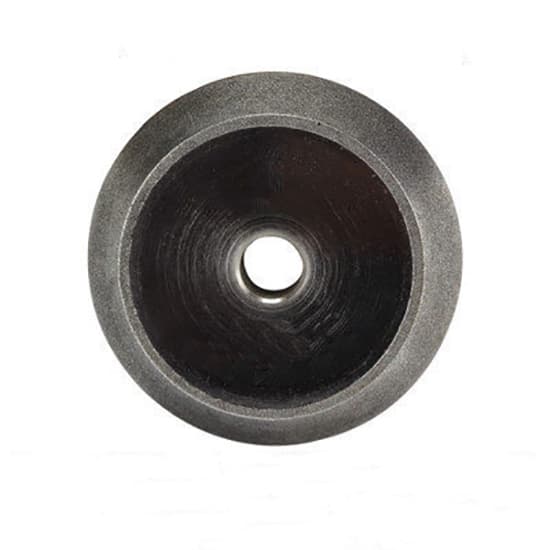

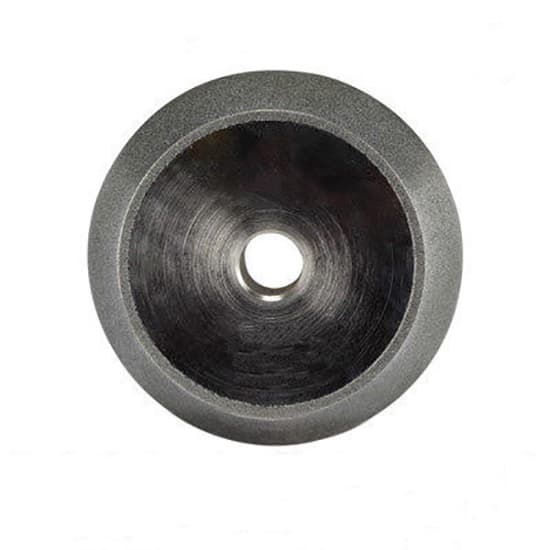

Grinding Wheel	CBN (for high speed steel), SDC (for tungsten steel)
Certification	CE
Warranty	1 year
Overall Dimension	563238cm
Weight	44kg

End Mill Sharpener Structure Diagram

End Mill Sharpener Effect Diagram

End Mill Sharpener Packing List

End mill sharpener T-MCG-X7*1
SDC/CBN grinding wheel*2
Fixture ER collet*10
Small Allen wrench*3 (3, 4, 5mm)
Chuck set*2

Tips: Use end mill sharpener to grind the relief angle.

Grind the adjustable center relief angle
Insert milling cutter fixture set into the center relief angle grinding seat hole, and gently push it to the bottom. Grind it until the grinding sound stops. Adjustable center rotation can be adjusted according to different usage of milling cutter. For example, the end mill sharpener to grind 2-flute and 3-flute milling cutters, it is needs to rotate left and right. To grind 4-flute and 6-flute milling cutters, no rotation is needed.
Grind the second relief angle
Insert milling cutter fixture set into the second relief angle grinding seat hole of the end mill sharpener, and gently push it to the bottom. Grind it until the grinding sound stops. Then take it out, turn it 180° or 90°, and grind it in the same way until there is no sound.
