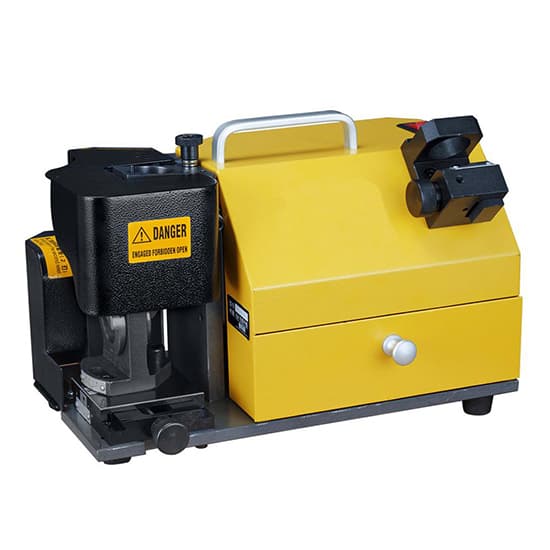

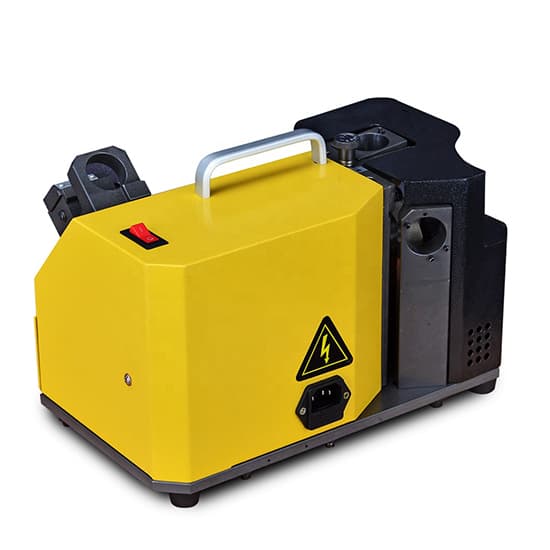

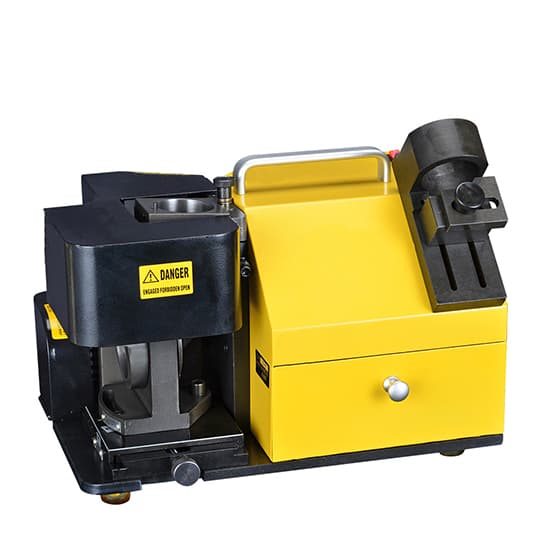

The end mill sharpener can grind 2-flute, 3-flute, 4-flute and 6-flute end mill cutters. Grinding angles include end face, central angle and clearance angle. In addition, it can open the cutting edge of tungsten bar directly. It is also a end mill grinder with high grinding accuracy, adjustable point angle and adjustable grinding amount.

Specification

Model	T-MCG-X3	T-MCG-X3A	T-MCG-X5
Grinding Range	Ф4mm-Ф14mm	Ф4mm-Ф20mm	Ф12mm-Ф30mm
Rated Voltage	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Motor Power	160W	160W	250W
Rotation Speed	4,400 rpm

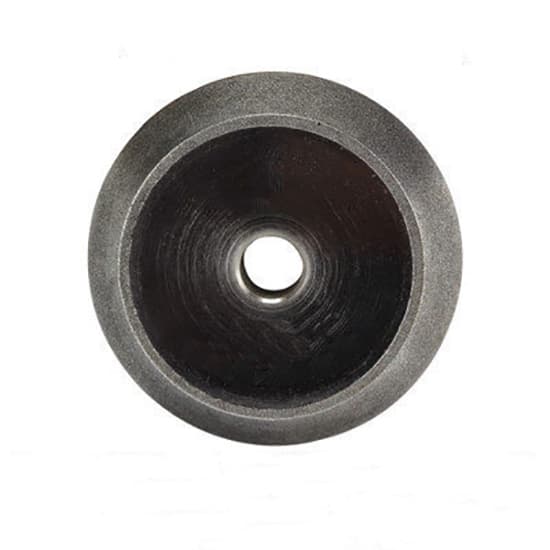

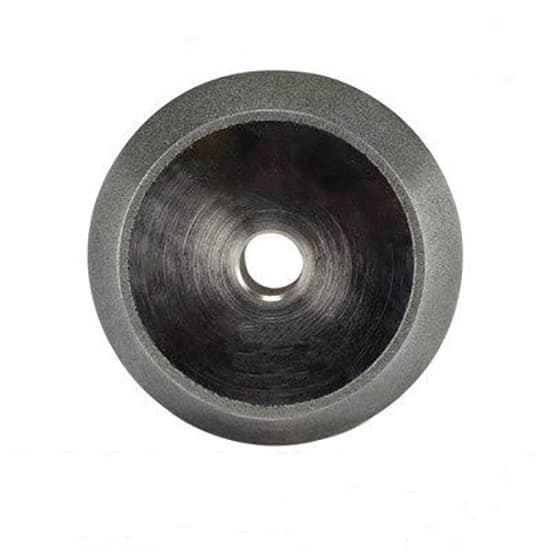

Grinding Wheel	CBN (for high speed steel), SDC (for tungsten steel)
Certification	CE
Warranty	1 year
Dimension	352324cm	352324cm	402831cm
Weight	15.3kg	15.3kg	27.3kg

End Mill Sharpener Structure Diagram

End Mill Sharpener Effect Diagram

End Mill Sharpener Packing List

Configuration	Quantity
Configuration	T-MCG-X3	T-MCG-X3A	T-MCG-X5
1. End mill sharpener machine	1	1	1
2. SDC/CBN grinding wheel	1	2	1
3. Fixture Collet	6 (ER20)	6 (ER20) 3 (ER25)	10 (ER)
4. Allen wrench	3	3	3
5. Chuck set	2	4	2

Tips: How to replace grinding wheel for end mill sharpener?

Loosen the fixing screws of end mill sharpener, open protective cover of grinding wheel. Remove the fixing screws and fan blades, then take out the grinding wheel.
Wipe clean the contact surface of grinding wheel and axis. Install the new grinding wheel into axis.
Reinstall fan blades and fixing screws, and then tighten the fixing screws. Cover the protective cover of grinding wheel and lock housing fixing screws to complete replacement.
