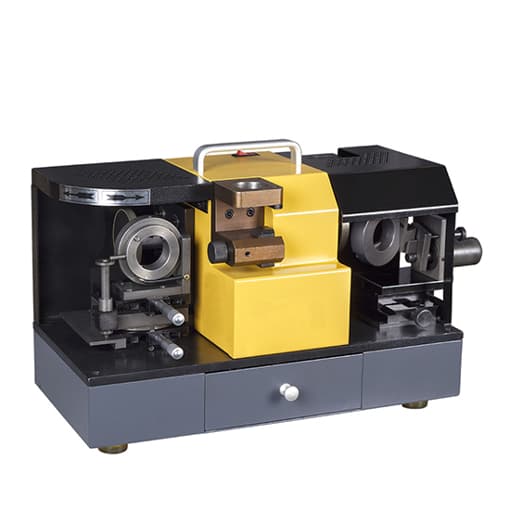

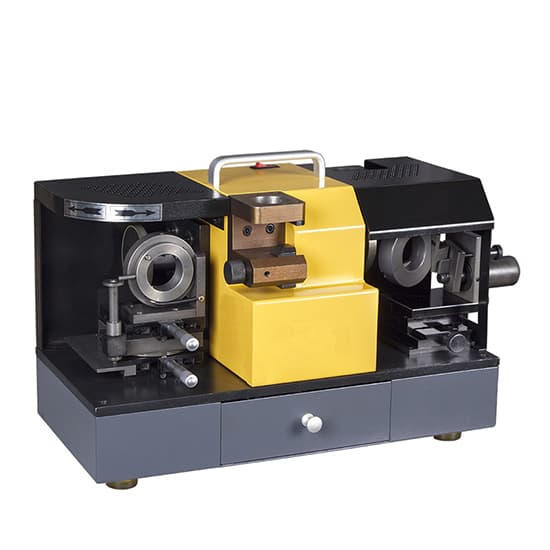

The electric sharpener is a machine specialized for grinding ball nose end mill cutter. The end mill grinder can grind Ф6mm-Ф20mm spherical arc surface. It can also be used in grooving for blade edge cutting flute and grinding for clearance relief angle.

Specification

Model	T-MCG-X8
Grinding Range	Ф6mm-Ф20mm
Rated Voltage	220V 50/60Hz
Motor Power	250W
Rotation Speed	4,400 rpm

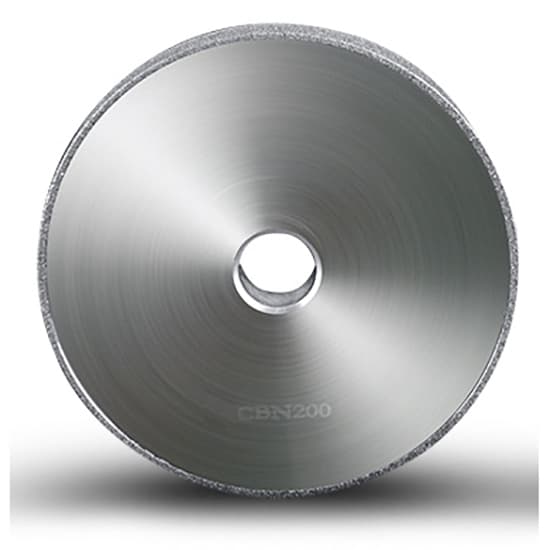

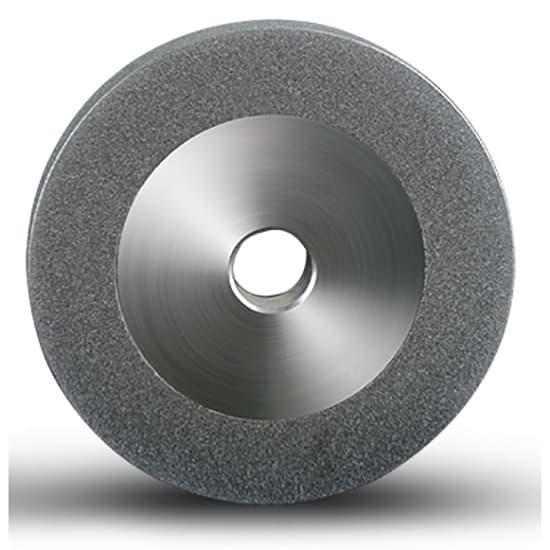

Grinding Wheel	CBN (for high speed steel), SDC (for tungsten steel)
Certification	CE
Warranty	1 year
Overall Dimension	602937cm
Weight	40kg

Features

End mill sharpener has precise tool setting design, simplifies the machine body structure and provides high tool setting accuracy. Use a micrometer to fine-tune and control the amount of grinding required.
Flexibly use grinding base to adjust the radian, and adjust angle for trial grinding to achieve the desired effect.

End Mill Sharpener Structure Diagram

1. power switch	2. right hand grinding wheel	3. right protective cover	4. transverse feed plate	5. straight to the plate	6. rotate the bearing seat A
7. drawer	8. fine-tune the twist-roller	9. alignment base	10. left protective cover	11. left hand grinding wheel	12. adjust the lift
13. rotate the bearing seat B	14. circular rotation seat	15. helix	16. arc fine-tuning	17. outside diameter fine-tuning	18. collet chuck

End Mill Sharpener Effect Diagram

End Mill Sharpener Packing List

End mill sharpener machine T-MCG-X8*1
SDC/CBN grinding wheel*8
Fixture ER32 collet*8
Small Allen wrench*3 (3, 4, 5mm)
Chuck set*1

Tips: What is an end mill sharpener for ball nose mill cutter?

Ball nose mill cutter is an end mill suitable for milling various materials, including die steel, cast iron, carbon steel, alloy steel, tool steel, and general iron materials. It is widely used for processing various curved surfaces and arc grooves. Due to the spherical design, manual grinding is difficult, and the arc center point is not balanced. After grinding, the milling cutter cannot reach the standard of new cutter, service life is greatly reduced.

The end mill sharpener can be used to grind ball nose end mill cutter with diameter of 6mm-20mm. Ensure high precision and high efficiency. Conducive to repeated use of the ball nose end mill cutter, reduce resource waste and save costs.
