Name: ER Collet Chuck Spanner Wrench
Brand: Tool
SKU: 463
Availability: InStock

ER Collet Chuck Spanner Wrench

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

23 People watching this product now!

Features

Collet chuck spanner wrenches are made from high quality 45# steel with black finish, durable and rust-resistansive.
Wide range of ER collet wrenches in different shapes for choice, ER8/ER11/ER16/ER20/ER25/ER32, etc.
Soft handle design, comfortable grip and high torque.
Widely used to tighten and loosen screws and nuts without slipping.
Collet chuck wrenches are suitable for engraving machines, router, CNC machine tools, drills, milling cutters, milling machines, etc.

Specification

Model	T-JTBS-ER

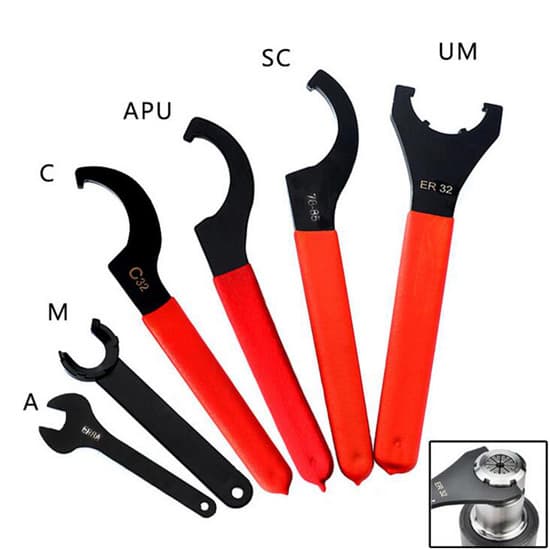

Product Type	UM/M/A/C/SC/APU Type Collet Chuck Wrench
Material	45# Steel
Finish	Black
Measurement System	Metric
Size	See below

Note: The sizes are approximate.

Dimensions & Selection Table

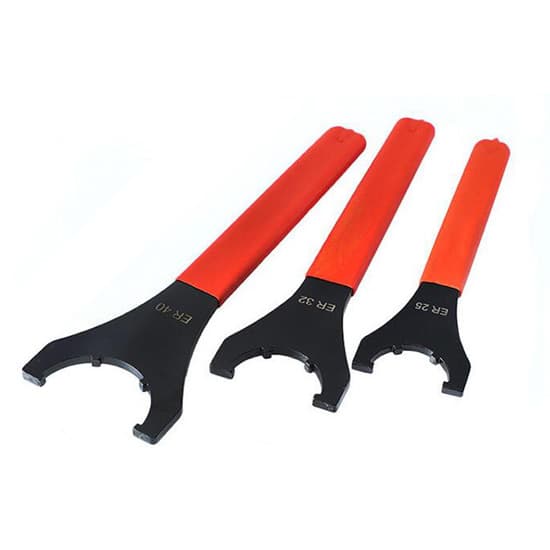

UM Type Collet Chuck Wrench

Type	Model	L	D	Weight
UM	ER25	218mm	37mm	215g
	ER32	253mm	45mm	359g
	ER40	277mm	85mm	431g

A-Type Collet Chuck Wrench

Type	Model	L	D	Weight
A	ER8A	116mm	12mm	64g
	ER11A	116mm	17mm	78g
	ER16A	152mm	25mm	125g
	ER20A	166mm	31mm	154g

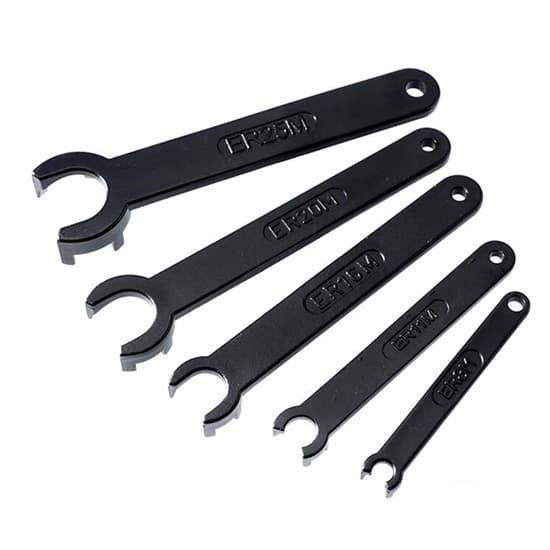

M-Type Collet Chuck Wrench

Type	Model	L	D	Weight
M	ER8M	78mm	5.5mm	22g
	ER11M	97mm	7.5mm	37g
	ER16M	122mm	13mm	72g
	ER20M	132mm	17mm	84g
	ER25M	140mm	20mm	114g

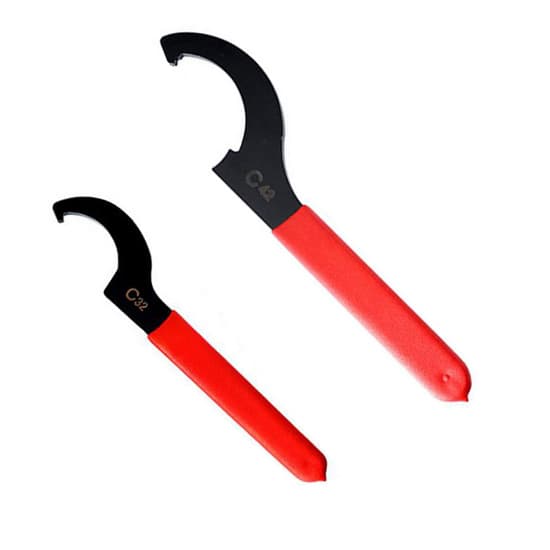

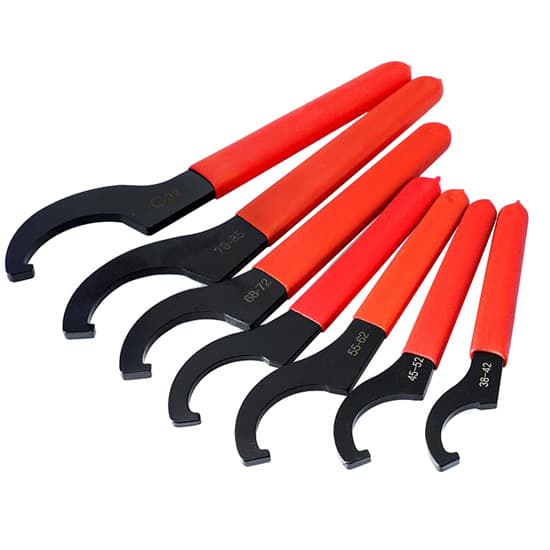

C/SC/APU Collet Chuck Wrench

Type	Model	L	D	Weight
C	C32	265mm	60mm	282g
C	C42	320mm	79mm	553g
SC	38-42mm	171mm	33mm	90g
	45-52mm	180mm	39mm	102g
	55-62mm	230mm	48mm	129g
	68-72mm	239mm	51mm	234g
	78-85mm	270mm	64mm	279g
APU	APU	205mm	46mm	111g

Tips: What is an box end wrench?

A box end wrench or spanner is a spanner with enclosed ends with 6, 8, 12, or 16 points inside the head. With 45 degree or other degree offset, this wrench box end is staggered from the handle at the side view. Therefore, the box end spanner is often used to remove bolts and nuts assembled in the recessed space, and can be used to provide operational clearance for the fingers to prevent scratches.

The inner hole of the box end spanner is formed by two regular hexagon concentric stagger 30°. Most box end wrenches are offset, which are usually between 10° and 45°. There are many different sizes of box end wrenches. The size of box end spanner is generally determined by the width of the opposite side of hexagon nut or the screw. The general specifications of the spanner in Metric are 8*10mm, 10*12mm, 12*14mm, 14*17mm, 16*18mm, 17*19mm, 19*22mm, 22*24mm, 24*27mm, 27*30 mm and so on. The wrench should be selected that corresponds to the size of the bolt or nut.
