Name: Generator Hour Meter, IP67 Waterproof, AC 110-250V
Brand: Tool
SKU: 1453
Availability: InStock

Generator Hour Meter, IP67 Waterproof, AC 110-250V

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

20 People watching this product now!

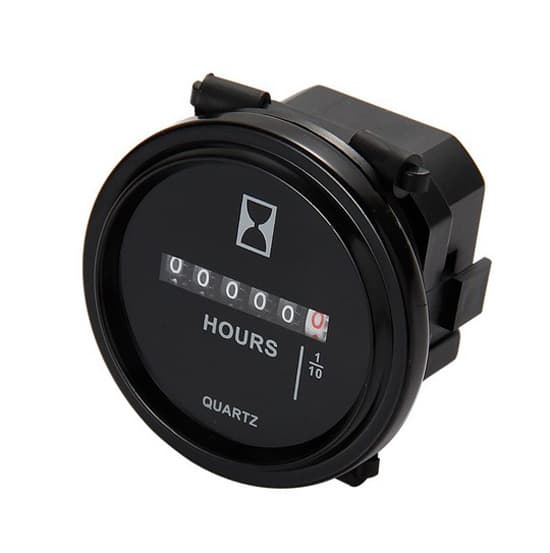

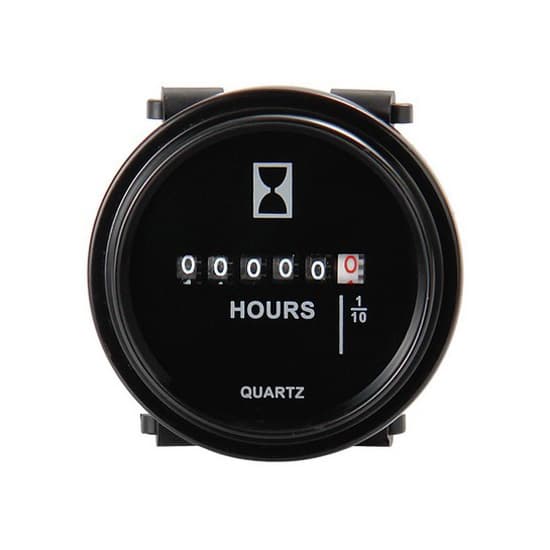

The Generator Hour Meter from TOOL is a high-precision AC 110-250V mechanical hour meter for accurate engine runtime tracking. Its IP67 waterproof analog round gauge design ensures stable performance in harsh environments. Built with vibration-resistant and maintenance-free construction, it is widely used as a Vibration Hour Meter for generators, tractors, and small engine equipment to provide reliable operating time monitoring.

Specs

Model	T-RL-HM009
Timing Range	0-99999.9H (Total accumulated time non-resettable)
Timing Accuracy	0.1H (Automatically resets to 0 when exceeding 99999.9H)
Waterproof Rating	IP67
Operating Temperature	-25℃ ~ 65℃
Operating Voltage	DC 8-80V, AC 110-250V (Optional)
Timing Mode	Power-on activated timing
Dimension	565654mm
Package Dimension	736460mm
Weight	56g

Pro Tip: Generator Hour Meter is non-resettable for secure record-keeping.

Note: Always double-check your voltage (AC 110-250V/DC 8-80V) before wiring to prevent damage.
Reliability: Once tracking starts, the round electric hour meter stores data permanently.

Features

[Wide Voltage & Universal Fit] Engineered for AC 110-250V systems, Generator Hour Meter provides accurate runtime tracking for backup generators, industrial motors, and marine equipment. A versatile solution for all high-voltage engine monitoring needs.
[IP67 Waterproof & Dustproof] Featuring a rugged analog round gauge design, rated IP67 waterproof. This ensures fog-free performance, making it an ideal hour meter for lawn mowers and heavy-duty tractors in muddy conditions.
[Vibration-Resistant Construction] Built with premium earthquake-resistant materials, the mechanical hour meter is specifically designed as a heavy-duty vibration hour meter. It withstands intense engine and motor vibrations, ensuring the quartz timing core remains precise and durable over years of use.
[Maintenance-Free Tracking] Provides secure, non-resettable tracking up to 99,999.9 hours. The engine hour meter is ideal for small engine maintenance, helping schedule oil changes and routine servicing, effectively extending equipment lifespan.
[Stable & Easy Installation] Designed for professional-grade reliability, the unit features clear polarity markings and reinforced mounting accessories. This ensures a secure, vibration-proof fit and error-free wiring for any DIY or industrial setup.

Dimension Drawing (unit: mm)

Mechanical Installation

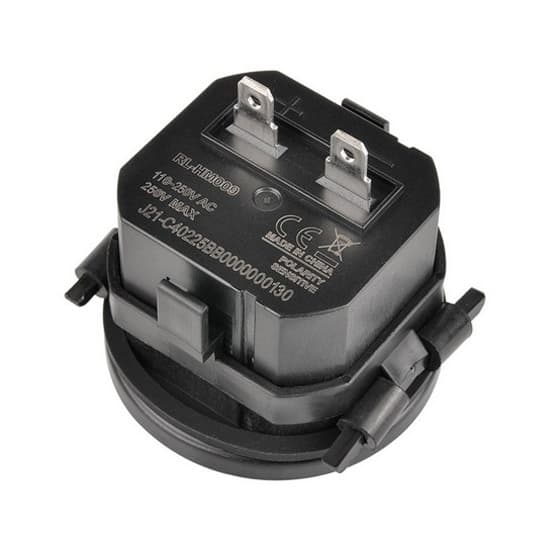

Electrical Wiring

Applications

Wide Compatibility: Perfectly suited for Lawn Mower maintenance, garden Tractors, and the Marine Industry (IP67 Waterproof for boats, yachts).
Multi-Purpose Use: Total Hour Meter is ideal for air compressors, water pumps, and industrial motors. It provides high-precision engine tracking to streamline routine servicing and monitor operational hours with maintenance-free efficiency.

FAQs

Q: Can I reset this Generator Hour Meter to zero?

A: No, it is a Non-Resettable Generator Hour Meter. It is designed to provide a permanent, tamper-proof record for Engine Maintenance, ensuring your tracking data is always secure and accurate.

Q: Is the Analog Round Gauge waterproof enough for outdoor use?

A: Yes. The Analog Round Gauge features an IP67 Waterproof rating. Its fully sealed housing is built to withstand heavy rain and dust, making it perfect for Generators, Boats, Tractors, and Lawn Mowers.

Q: How do I choose the correct voltage?

A: It depends on your power source. The Generator Hour Meter is designed for AC 110-250V systems (ideal for backup generators and pumps). Please verify your machine’s voltage before ordering to ensure compatibility.

Q: Does the Generator Hour Meter require a battery to save data?

A: No battery needed. The AC 110-250V Hour Meter uses a precise Mechanical Core and power-off storage, so recorded hours are automatically locked and saved even after years of storage-providing a truly Maintenance-Free solution.
